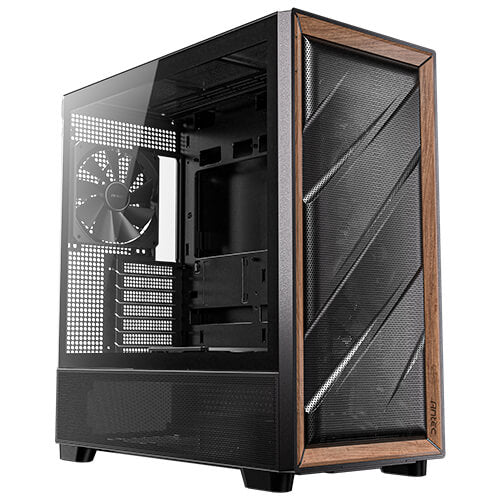

Antec Flux - Black, Mid Tower, E-ATX/ATX/Micro-ATX/ITX, Tempered Glass, Wood Front, USB-C 10Gbps, 5× PWM Fans, 2Yr Wty

Antec Flux - Black, Mid Tower, E-ATX/ATX/Micro-ATX/ITX, Tempered Glass, Wood Front, USB-C 10Gbps, 5× PWM Fans, 2Yr Wty

Flow Luxury

F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 fans included, delivering enhanced GPU cooling performance.

Flux Airflow

Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical Cooling

Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.

Flux Horizontal Cooling

Air intake via the front mesh provide smooth venting channel throughout the case.

Premium Wood Material

Front panel is crafted with a combination of metal mesh and wood (birch) to create a high-quality texture with different materials, integrating seamlessly into your home design.

Optimized Chassis Design

Front is recessed, fostering better airflow and reducing wind noise.

Removable Top Cooling Bracket

Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.

Recommended Water Cooling

Supports simultaneous installation of Front 360mm radiator + Top 360mm radiator.

Extreme Water Cooling

Supports simultaneous installation of Front 420mm push-pull radiator + Top 280mm radiator.

SPECIFICATIONS

main spec

Dimensions 484 x 239 x 502 mm (DWH)

Form Factor Mid Tower

Materials Steel + Plastic + Wood

Mainboard Support E-ATX (≤330mm), ATX, Micro-ATX, ITX

Front Access & Controls Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack

Side Panel 4mm Tempered Glass

Drive Bays

Expansion Slots 7

3.5' /2.5' 2/2

2.5' 1

Fan Support

Front 3 x 120mm / 3 x 140mm

Top 3 x 120mm / 2 x 140mm

Power Supply Shroud 2 x 120mm / 2 x 140mm

Rear 1 x 120mm / 1 x 140mm

Included Fan(s) 3 x 120mm PWM fans in front + 1 x 120mm PWM Reverse fan on PSU shroud + 1 x 140mm PWM fan in rear

Radiator Support

Front 120 / 140 / 240 / 280 / 360 / 420mm

Top 120 / 140 / 240 / 280 / 360mm

Rear 120 / 140mm

Clearance

Max GPU Length ≤408mm

Max CPU Cooler Height ≤180mm

Max PSU Length (Include cable) ≤235mm (with HDD)

Miscellaneous

Dust Filter Bottom

Net Weight 9.27Kg

Gross Weight 10.64Kg

Warranty 2 Years

UPC# 0-761345-10133-2

Warranty: 24 months

Part No.: FLUX-BK
