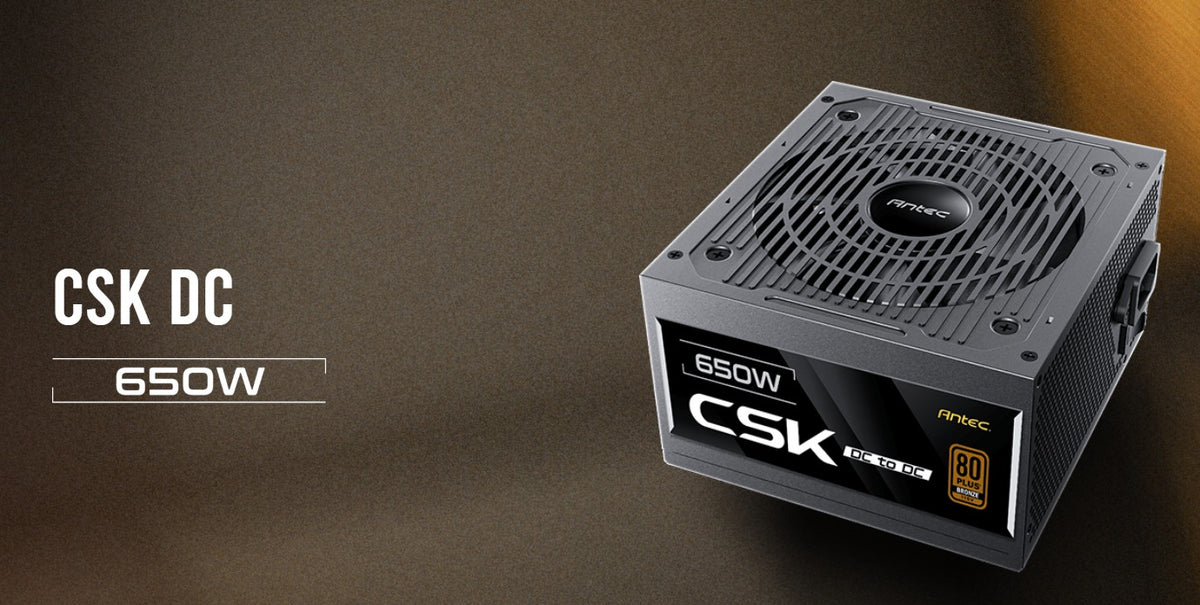

Antec CSK650DC 80+ Bronze, DC to DC, Flat Cables,. CircuitShield Protections, Thermal, Reliable Value Power Supply 5yr

Antec’s new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans, the brand-new CSK DC series includes Antec’s solid 5-year warranty. The CircuitShield™ suite of industrial -grade protections ensure that the power delivered to your system is safe and reliable in any environment

Model CSK650DC

Safe Model X5000A535XC-24

Type ATX 12V 2.52

Dimension 140(L)*150(W)*86(H)

Modular Non-Modular

Warranty 5 years

Input Voltage 100V-240V

Input Current 12A Max

Input Frequency Range 50Hz-60Hz

PFC Active PFC

Power Good Signal 100-500ms

Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity 650W

Operation Temperature 0~40°C

Regulatory cTUVus / TUV / CB / RCM / CE / FCC

/ BSMI / KC / UKCA / ICES/BIS

Fan 120mm Silent Fan

Certifications 80 Plus Bronze

Connector 1 x 24(20+4)pin MB

2 x 8(4+4)pin CPU

2 x 8(6+2)pin PCI-E

6 x SATA

3 x Molex

Unit Box Dimensions 255mm(L)*195mm(W)*100mm(H)

Shipping Box Dimensions 545mm(L)*425mm(W)*230mm(H)

Net Weight 1.70KG

Gross Weight 1.90KG

Warranty: 60 months

Part No.: CSK650 DC AU
