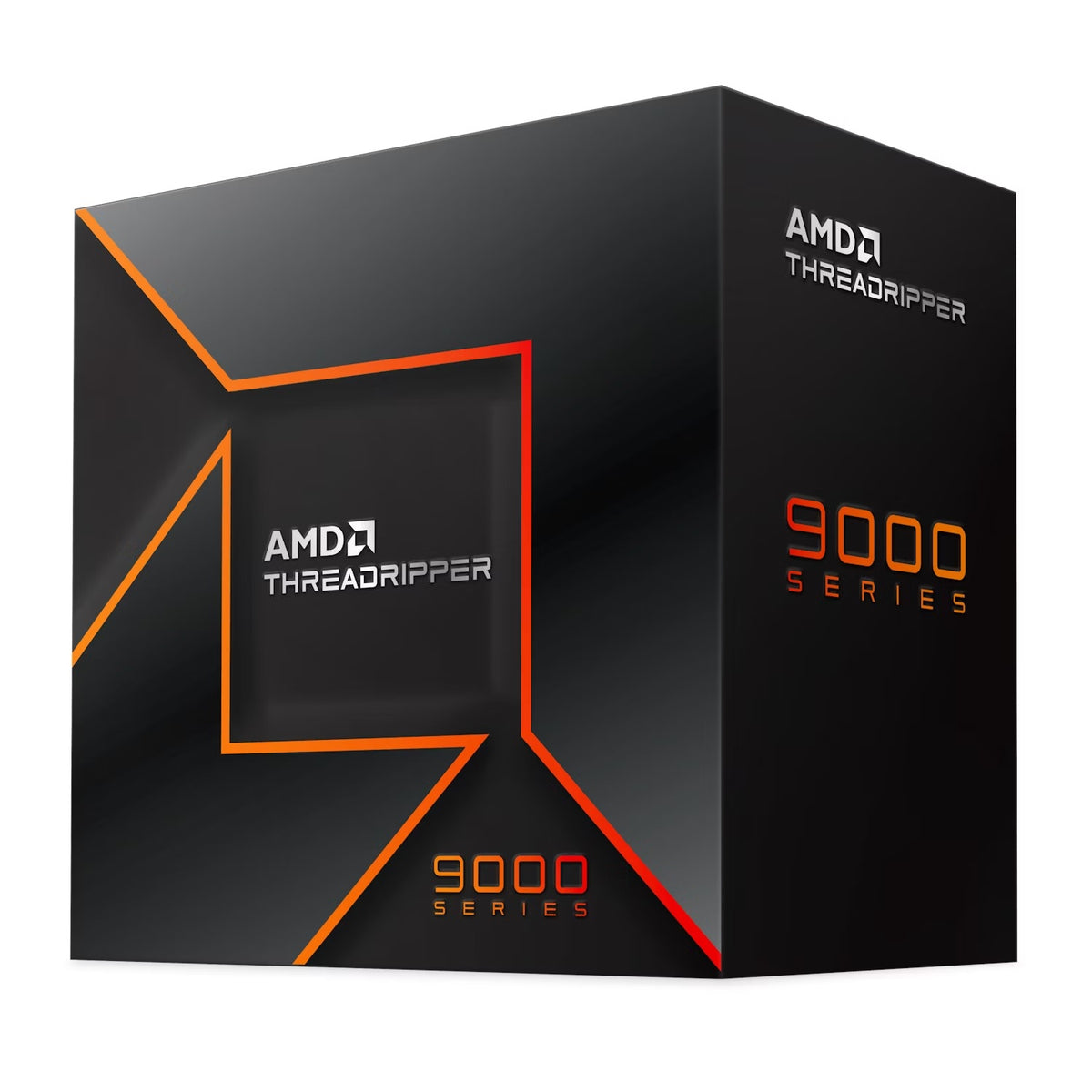

AMD Ryzen Threadripper 9980x tray version, Zen5, 64Cores / 128Threads, Up to 5.4 / 3.2 GHz, PCIe 5.0, 256MB L3, 350W TDP, DDR5-6400 RDIMM, sTR5, TRX50

AMD Ryzen Threadripper 9970x, Zen5, 32Cores / 64Threads, Up to 5.4 / 4.0 GHz, PCIe 5.0, 128MB L3, 350W TPD, DDR5-6400 RDIMM, sTR5, TRX50

General Specifications

Name

AMD Ryzen™ Threadripper™ 9980X

Family

Ryzen Threadripper

Series

Ryzen Threadripper 9000 Series

Form Factor

Desktops

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Regional Availability

Global

Former Codename

Shimada Peak

Processor Architecture

Zen 5

# of CPU Cores

64

Multithreading (SMT)

Yes

# of Threads

128

Max. Boost Clock

Up to 5.4 GHz

Base Clock

3.2 GHz

L1 Cache

5120 KB

L2 Cache

64 MB

L3 Cache

256 MB

Default TDP

350W

Processor Technology for CPU Cores

TSMC 4nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

Package Die Count

9

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

CPU Socket

sTR5

Supporting Chipsets

TRX50

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

Not Included

Max. Operating Temperature (Tjmax)

95°C

*OS Support

Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

Connectivity

Native USB 3.2 Gen 2 (10Gbps)

4

Native SATA Ports

2

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

92 , 88

NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type

DDR5

Memory Channels

4

System Memory Subtype

RDIMM

System Memory Specification

Up to 6400 MT/s

ECC Support

Yes (Default Enabled)

Warranty: 12 months

Part No.: 100-000001593
