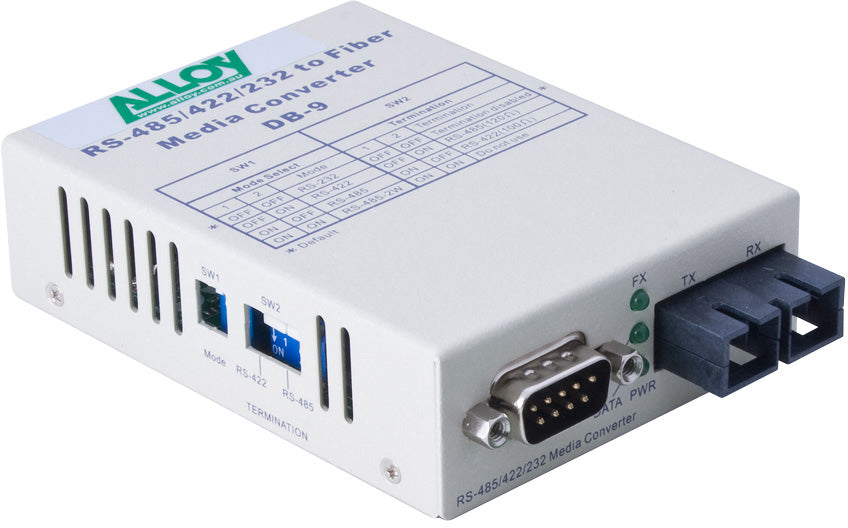

Alloy SCR460SC-3 RS-232/422/485 Serial DB-9 to Single Mode Fibre Converter. Max. range 20Km

Alloy SCR460SC-3 Serial to Fibre Standalone/Rack Converter

The SCR460SC-3, an SCR Series Media Converter, is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a DB-9 port and a SC terminated singlemode fibre port with a range of up to 20Km.

Features:

SCR460SC-3 Converter: RS-232/422/485 DB-9 serial (DB-9) to serial over singlemode fibre (SC) - 20Km range

SCR Series Converters for all types of serial over fibre media conversion - up to 20Km range

DB-9 or Terminal Block options for copper serial cabling, ST or SC fibre connectors

Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485, RS-422 or RS-485

Auto baud rate (up to 460.8K) and Direction Control functions

High EMI and EMS immunity

Dual Purpose ACR Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis

Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems

Compact, rugged all-metal case

Warranty: 36 months

Part No.: SCR460SC-3
