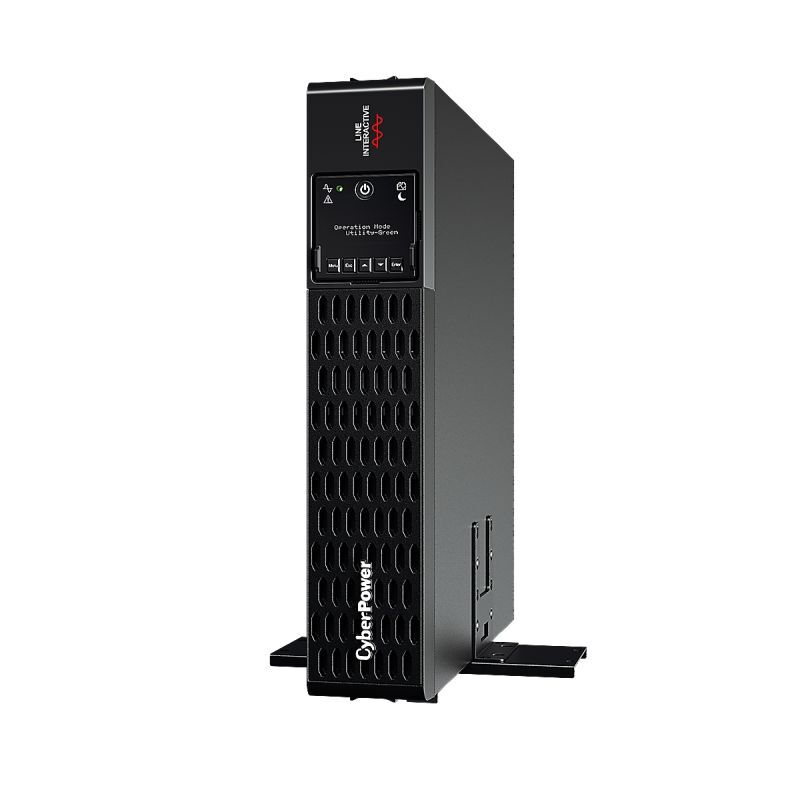

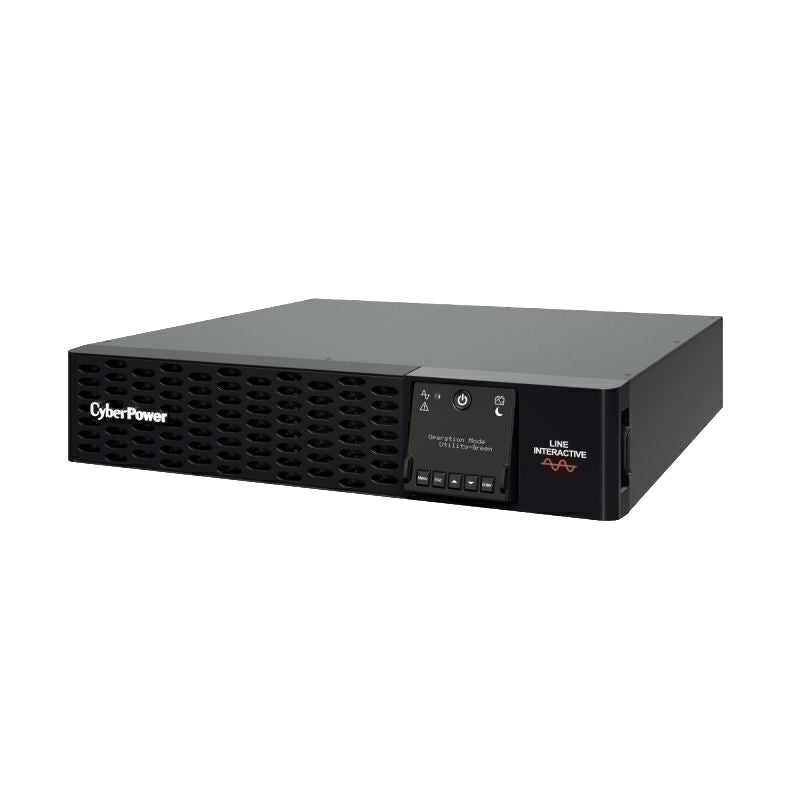

Cyberpower PRO Rack/Tower LCD 1500VA

CyberPower PR1000ERTXL2U guarantees power backup protection for home theatre, multimedia, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. UPS uses line-interactive topology.

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 - 288
Adjustable Voltage Range ( Vac ): 151 - 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Power Cord Length (m.): 3
Output Capacity (Watts): 1500
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker

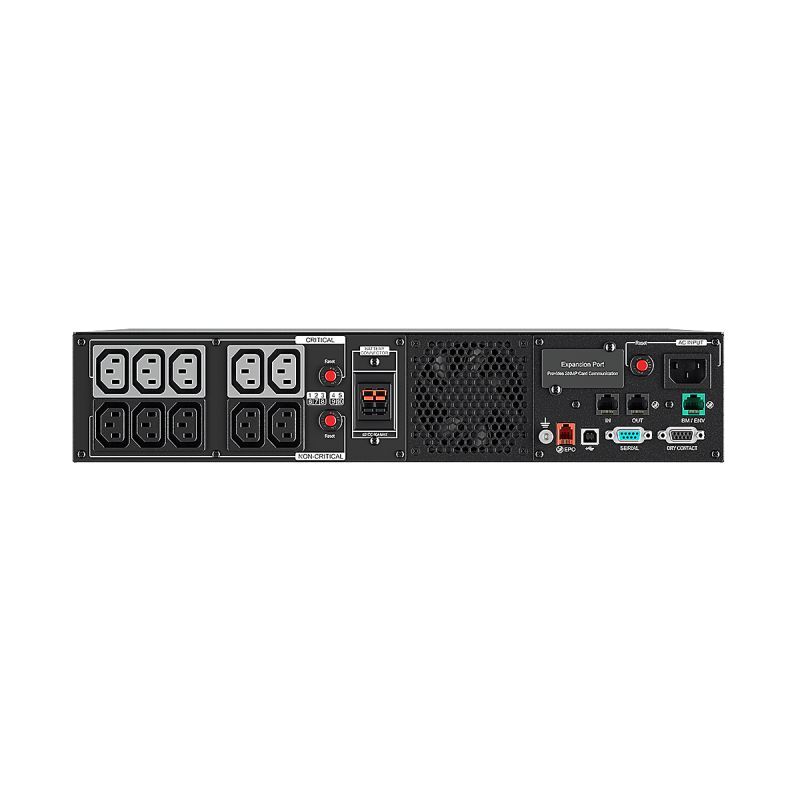

Outlet(s) - Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) - Battery & Surge Protected: 10
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 5
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 19.3
Runtime at Full Load ( min ): 6.5
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0129
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
LCD Orientation: Rotatable LCD Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 500mm
Weight: 32kg
Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA

Line-interactive UPS Topology
Active PFC Compatible
Toolless Battery Replacement
High Output Power Factor
Overload Protection
Quick Charging Technology
Extended Battery Module (EBM)
EMI and RFI Filtration
USB Connectivity Port
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Battery Management Technology
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Hot-swappable Batteries
Surge and Spike Protection
LCD Status Display
Serial Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations

Form Factor: Rackmount / Tower
