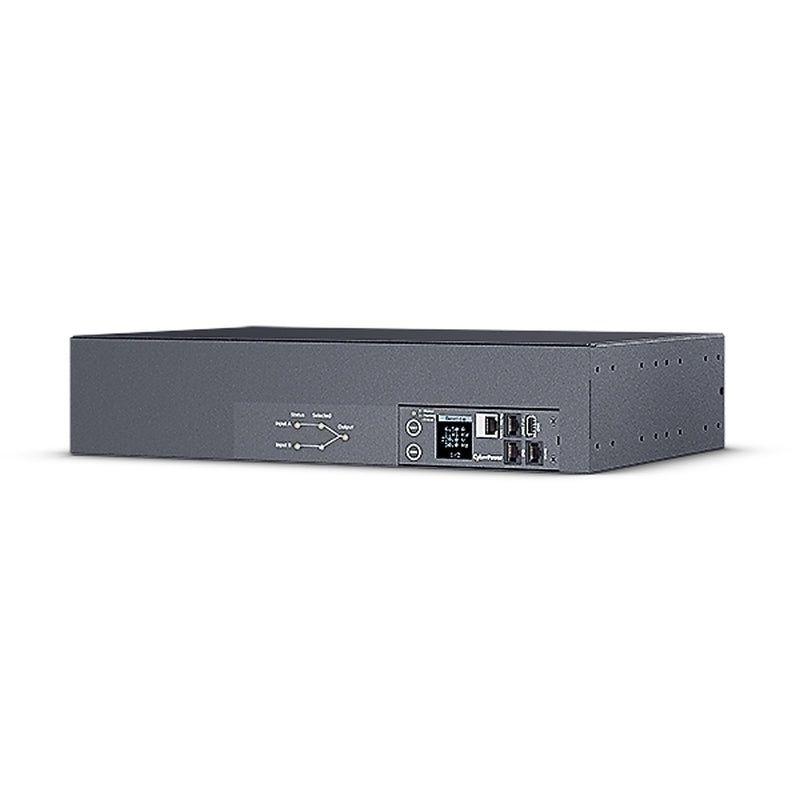

CP Switched ATS 32Amp
Features/Specifications:
Phase: Single Phase
Dual Power Inputs: Yes
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 32
Input Connector Type: IEC 60309 32A x 2
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 20
Outlets - # of Bank(s): 2
Outlet(s) - Total: 18

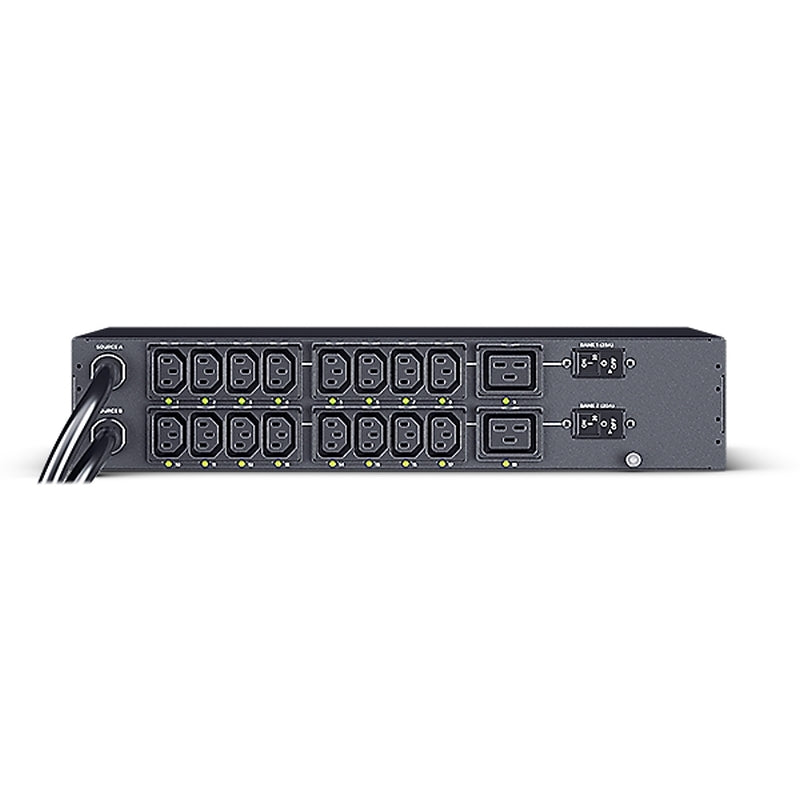

Outlet(s) - Rear: 18
Outlet Type: IEC C19 x 2 | IEC C13 x 16
Remote Individual Outlet Control: Yes

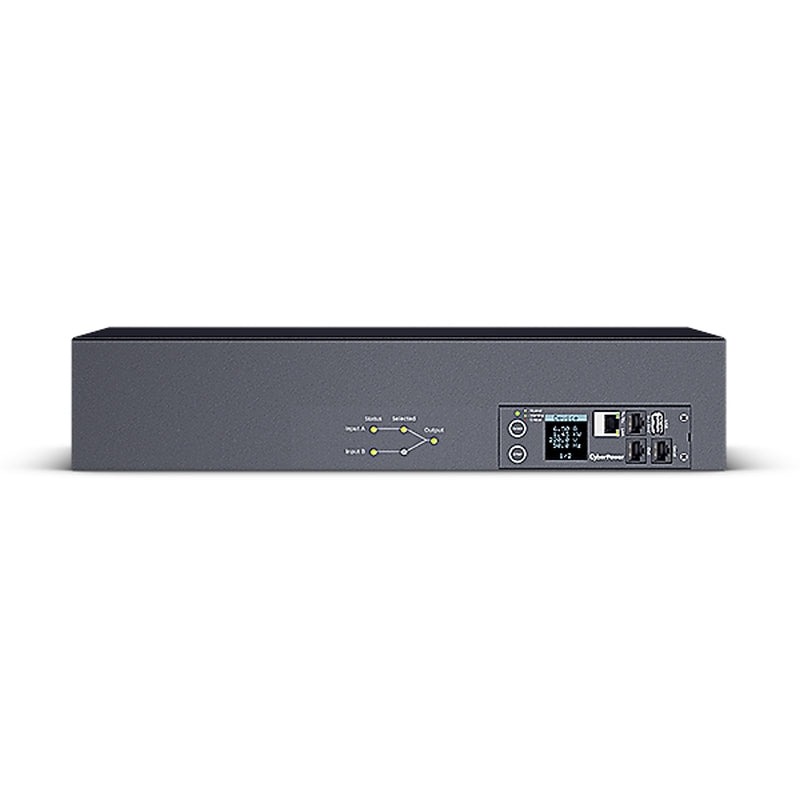

LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Installed Rack Height (U): 2
Form Factor: 2U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 433 x 88 x 215mm
Weight: 7.8kg
Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
