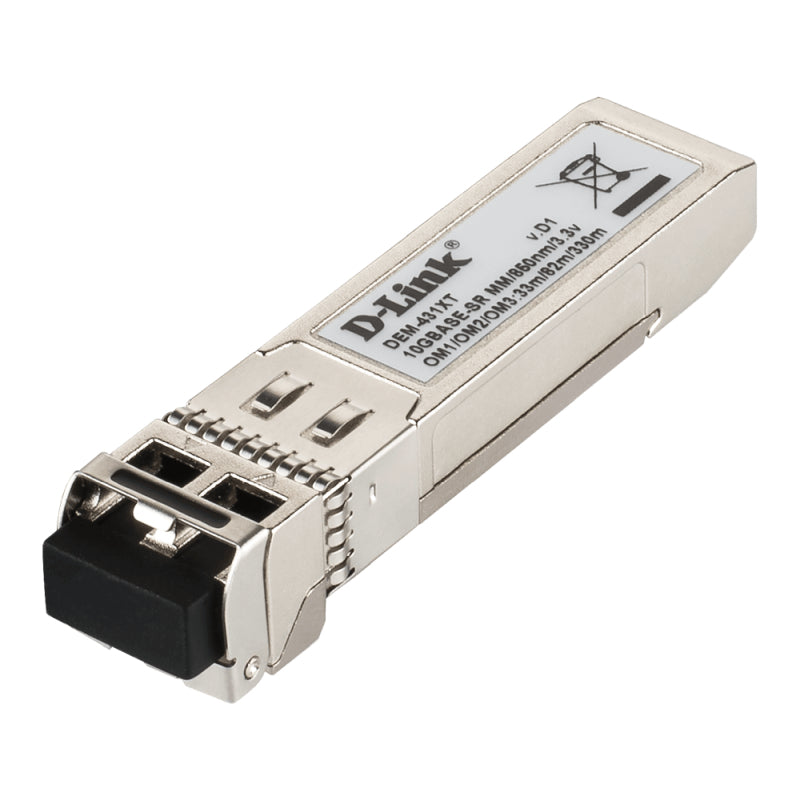

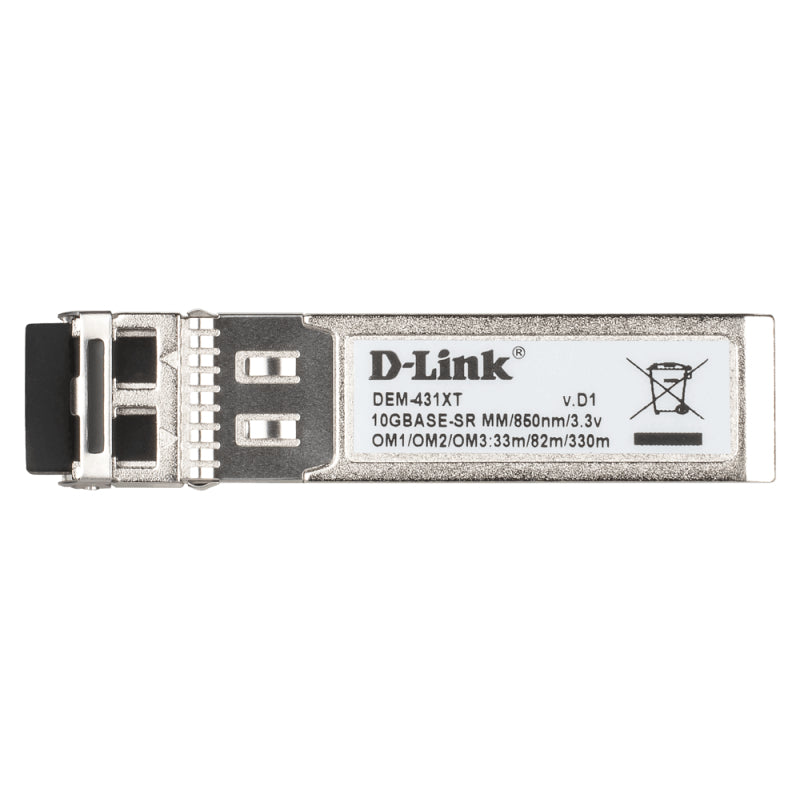

D-Link's 10G SFP+ Module series are hot-swappable, 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.
Features/Specifications:
Standard Compliance: IEEE-802.3ae, 10GBASE-SR
Form Factor Type: SFP+
Fibre Channel FC-PI: Standard 1200-Mx-SN-I
Fiber Media Support: Multi-Mode
Distance Capacity: 62.5 ?m, 160 MHz-km: 26 m, 62.5 ?m, OM1 200 MHz-km: 33 m, 50 ?m, 400 MHz-km: 66 m, 50 ?m, OM2 500 MHz-km: 82 m, 50 ?m, OM3 2000 MHz-km: 300 m
Hot Pluggable: Yes
Compliant: MSA, RoHS
Speed: 10 Gbps
Connector: Duplex LC Connector
Wavelength: 850 nm
Output Optical Power (TX Optical Power): Max.: -1 dBm, Min.: -6.5 dBm
Input Optical Power (RX Optical Power): Max.: -1 dBm, Min.: -11.1 dBm
Sensitivity: -11.1 dBm
Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre
Power: 3.3 V
Heat Generated: 3.6 kJ/h
MTBF (Hours): 3,960,000
Operating Temperature: 0 to 70 C
Storage Temperature: -40 to 85 C
Operating Humidity: 5 to 85%
Storage Humidity: 5 to 95%
Dimensions: 14.8 x 56.5 x 11.85 mm
Weight: 18 g
Bail Latch Color: Beige
EMI: CE, FCC, VCCI
Safety: UL, TUV, CDRH
Enhanced Small Form-Pluggable (SFP+) form factor
Hot pluggable
Support 10G Ethernet
Feature Digital Diagnostics Monitoring (DDM)1
RoHS Compliant
Compliant with MSA (Multiple Source Agreement)
Compliant with IEEE802.3ae and 802.3aq standards
