CyberPower CPSURGE08USB-ANZ is ideal for expensive home theatre system and audio/video devices protection. MOV technology guards the surge suppressor and connected electronics such as phone, network, and communication equipment against surge/spikes.

Features/Specifications:
Input Voltage Range ( Vac ): 240
Input Frequency ( Hz ): 50
Maximum Input Current ( A ): 10
Power Cord Length (m.): 2
Overload Protection: Circuit Breaker
Over Current Protection ( A ): 10
Outlet(s) - Total: 8
USB Charging Port(s): USB-A x 2
USB-A Charging Output: 5 V/ 2.4 A
Surge Suppression ( Joules ): 2750
Maximum Surge Voltage ( V ): 6000
Maximum Surge Current ( A ): 67500
Maximum Surge Current (L-N, L-G, N-G) ( A ): Line to Neutral (L-N): 37500 | Line to Ground (L-G): 15000 | Neutral to Ground (N-G): 15000
Response Time ( ns ): < 1
EMI/RFI Filtration ( Hz ): 150KHz ~ 100MHz
Attenuation ( dB ): Up to 32 dB
Form Factor: Strip
Keyhole Mounting Slots: Yes
Dimensions: 276 x 130 x 32mm
Weight: 612g
Certifications: RCM

Fire Resistant
Surge Protection
Overload Protection
Computer-grade Protection
Keyhole Mounting Slots
EMI and RFI Filtration
USB Charging Port(s)
Best-in-class Dustproof Design

Form Factor: Powerboard
AC Outlets: 8
Output Port: USB-A

CyberPower RMCARD205 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the SNMP/HTTP network slot on the UPS, users can remotely monitor and control the devices in a back office or server room.

Features/Specifications:
Connectivity Port: RJ45, RJ45 (for Environmental Sensor)
Data Link Protocol: Ethernet 100Base-TX, Ethernet 10Base-T
Support Plug-and-play Installation: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel® Enterprise (Recommended for large scale management)
User-upgradeable Firmware: Yes
Remote Management: Web Browser, Command Line Interface, NMS
Local Management: Web Interface, Command Line Interface
Event Notifications: E-mail, SNMP Traps, Syslog, SMS
Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Authentication: RADIUS, LDAP, LDAPS, Windows AD
Multi-language Supported: Chinese (Traditional), Chinese (Simplified), English, French, German, Spanish
Environmental Sensor Supported: Yes
Dimensions: 54 x 36.1 x 76.5mm
Weight: 38g
Certifications: CE, FCC Class A, EAC

Plug-and-play Installation
Command Line Interface Supported
Automatic Event Notifications
User-upgradeable Firmware
Secure Authentication
User-friendly Web Interface
Remotely Schedule Shutdown/ Start-up/ Reboot of the UPS
Multi-language Supported
Syslog Supported
Compatible with ENVIROSENSOR

CP Smart App Tower 750VA UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 151 - 301
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1 | IEC C14 x 1
Power Cord Length: 1.83m
Capacity (VA): 750
Capacity (Watts): 675
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 5 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.9
Automatic Voltage Regulation (AVR): Double Boost | Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 10.5
Runtime at Full Load ( min ): 2.5
Typical Recharge Time ( Hours ): 8
Quick Recharge Time ( Hours ): 3
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Cartridge (RBP): RBP0014
Battery Cartridge (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 405
EMI/RFI Filtration: Yes
LCD Type: Detachable LCD Panel
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning | Other Information | Event & Log
LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output | Battery Setting | Fault & Warning | Event & Log
LED Indicators: Power On | Line Mode | Battery Mode | UPS Fault | Replace Battery
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | EPO Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 136 x 162 x 349mm
Weight: 12.3kg
Certifications: CE | EAC | RCM | RoHS
Warranty: 3 Years

Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
Detachable LCD Panel
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Surge and Spike Protection
LCD Status Display
USB Connectivity Port
PowerPanel Management Software
Tower Form Factor
What's in the box?
1 x PR750ELCD UPS
1 x Power Cord
1 x USB Cable
1 x EPO Cable
1 x User Manual

CyberPower PR1000ERTXL2U guarantees power backup protection for home theatre, multimedia, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. UPS uses line-interactive topology.

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 - 288
Adjustable Voltage Range ( Vac ): 151 - 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Power Cord Length (m.): 3
Output Capacity (Watts): 1500
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) - Battery & Surge Protected: 10
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 5
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 19.3
Runtime at Full Load ( min ): 6.5
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0129
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
LCD Orientation: Rotatable LCD Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 500mm
Weight: 32kg
Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA

Line-interactive UPS Topology
Active PFC Compatible
Toolless Battery Replacement
High Output Power Factor
Overload Protection
Quick Charging Technology
Extended Battery Module (EBM)
EMI and RFI Filtration
USB Connectivity Port
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Battery Management Technology
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Hot-swappable Batteries
Surge and Spike Protection
LCD Status Display
Serial Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations

Form Factor: Rackmount / Tower

CyberPower Systems PRO series 2200VA / 1980W Tower UPS with LCD - 10A - 4* 12V/9AH - 8x IEC - 3 Yrs Adv. Replacement WTY 2 Yrs on internal Batteries

Features/Specifications:
Form Factor: Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 151 - 296
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14 ?
Detachable Power Cord Plug Type: AU x 1 | IEC C14 x 1
Power Cord Length: 3.05m
Output Capacity (VA): 2200
Output Capacity (Watts): 1980
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 8
Outlet Type: IEC C13 x 8
Outlet(s) - Battery & Surge Protected: 8
Typical Transfer Time ( ms ): 4
BATTERYRuntime at Half Load ( min ): 12
Runtime at Full Load ( min ): 3
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge (RBP): RBP0116
Battery Cartridge (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 405
EMI/RFI Filtration: Yes
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log
LED Indicators: Power On
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs ): Power Cord x5, USB Cable x1, EPO Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 170 x 221 x 432
Weight: 25.5kg
Online Thermal Dissipation ( BTU/hr ): 155
Certifications: CE | RCM
RoHS: Yes
Product Warranty: 3 Years
Battery Warranty: 2 Years

Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Tower Form Factor
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Surge and Spike Protection
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability

CyberPower PR2000ERTXL2U guarantees power backup protection for home theatre, multimedia, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. UPS adopts line-interactive topology.

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 - 288
Adjustable Voltage Range ( Vac ): 151 - 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Power Cord Length (m.): 3
Output Capacity (Watts): 2000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) - Battery & Surge Protected: 10
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 5
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 12.8
Runtime at Full Load ( min ): 4
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0129
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
LCD Orientation: Rotatable LCD Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 500mm
Weight: 34.4kg
Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA

Line-interactive UPS Topology
Active PFC Compatible
Toolless Battery Replacement
High Output Power Factor
Overload Protection
Quick Charging Technology
Extended Battery Module (EBM)
EMI and RFI Filtration
USB Connectivity Port
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Battery Management Technology
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Hot-swappable Batteries
Surge and Spike Protection
LCD Status Display
Serial Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations

Form Factor: Rackmount / Tower

CP Pro 1000VA Rack UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount | Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
Input Voltage Range ( Vac ): 160 - 286
Adjustable Voltage Range ( Vac ): 150 - 300 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1
Power Cord Length: 3m
Capacity (VA): 1000
Capacity (Watts): 800
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5 % | 230 ± 5 % | 240 ± 5 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.8
Automatic Voltage Regulation (AVR): Double Boost | Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Outlet(s) - Critical Load (CL): 2
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 12
Runtime at Full Load ( min ): 3.1
Typical Recharge Time ( Hours ): 6
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Cartridge (RBP): RBP0027
Battery Cartridge (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning
LCD Setting & Control: Alarm Setting | Input & Output | Battery Setting
LED Indicators: Power On
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode | Low Battery | Overload | Overcharge | Overheat
Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | Serial Cable x1 | EPO Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 430 x 44 x 490mm
Weight: 18kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 72
Certifications: CE | C-Tick | EAC | RoHS
Warranty: 3 Years

Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Surge and Spike Protection
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Hot-swappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations
What's in the box?
1 x PR1000ELCDRT1U UPS
1 x Rackmount Ears
1 x Screw Kit
1 x Power Cord
1 x USB Cable
1 x Serial Cable
1 x EPO Cable
1 x User Manual

CP Switched ATS 32Amp

Features/Specifications:
Phase: Single Phase
Dual Power Inputs: Yes
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 32
Input Connector Type: IEC 60309 32A x 2
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 20
Outlets - # of Bank(s): 2
Outlet(s) - Total: 18
Outlet(s) - Rear: 18
Outlet Type: IEC C19 x 2 | IEC C13 x 16
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Installed Rack Height (U): 2
Form Factor: 2U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 433 x 88 x 215mm
Weight: 7.8kg
Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS

CP Switched ePDU 32Amp

Features/Specifications:
Phase: Single Phase
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 32 (CE)
Input Connector Type: IEC 60309 32A x 1 ?
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 20
Idle Power Consumption ( W ): < 5
Outlets - # of Bank(s): 2
Outlet(s) - Total: 24
Outlet(s) - Front: 24
Outlet Type: IEC C13 x 21 | IEC C19 x 3
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
Auto LCD Orientation: Yes
LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Tx/Rx | Link | Outlet
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 56 x 1665 x 48mm
Weight: 8.0kg
Certifications: CE | EN 55032 Class A | RoHS
Warranty: 2 Years

Real-time Local/Remote Monitoring and Switching
Overload Protection
Ultra Low Power Consumption
Digital Real-time Load Display
Hot-swappable LCD Design
LED Status Indicator
Support ENVIROSENSOR
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Work under High Temperature
Industrial-grade Metal Housing
User Configurable Color LCD
Rotatable LCD for Proper Display Orientation
Firmware Upgrade via USB
User-upgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking
What's in the box?
1 x PDU41405
1 x User Manual
1 x Product Registration Card
1 x Cord Retention Tray
1 x Mounting Brackets
1 x Cable Ties
1 x Screw Kit

CyberPower Systems Basic PDU 0RU vertical 10Amp IEC-320 C14 input - 20 IEC-320 (4-C19 & 16-C13) Out - 2 Yrs Adv. Replacement WTY

Features/Specifications:
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 10
Input Connector Type: IEC C14 x 1 ?
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 10
Outlets - # of Bank(s): 1
Outlet(s) - Total: 20
Outlet Type: IEC C19 x 4 | IEC C13 x 16 ?
Installed Rack Height (U): 0
Form Factor: 0U Vertical Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 3 Set
Dimensions: 44.5 x 914.4 x 38.1mm
Weight: 2kg
Certifications: CE | UL60950
RoHS: Yes
Product Warranty: 2 Years

Overload Protection
Adjustable Mounting Brackets
Industrial-grade Metal Housing
Cord Retention Tray

CP Smart App Rack 1500VA UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 165 - 271
Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 x 1
Power Cord Length: 1.83m
Capacity (VA): 1500
Capacity (Watts): 900
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.6
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting | Circuit Breaker
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 2
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 11
Runtime at Full Load ( min ): 2.5
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Replacement Battery Pack (RBP): RBP0026
Replacement Battery Pack (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information
LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output
HID Compliant USB Port(s): 1
Serial Port: Dry Contact
Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
Management Cable ( pcs ): Power Cord x4 | USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 433 x 44 x 389mm
Weight: 14.9kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 24
Certifications: CE | EAC | RCM | RoHS
Warranty: 2 Years

Line-interactive UPS Topology
Simulated Sine Wave Output
Overload Protection
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
What's in the box?
1 x OR1500ERM1U UPS
1 x Rackmount Ears
1 x Power Cord
1 x USB Cable
1 x User Manual

CP Smart App Rack 1000VA UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 165 - 271
Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 x 1
Power Cord Length: 1.83m
Capacity (VA): 1000
Capacity (Watts): 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10 %
On Battery Frequency ( Hz ): 50 ± 10% | 60 ± 10%
Power Factor: 0.6
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting | Circuit Breaker
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 2
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 14
Runtime at Full Load ( min ): 3.5
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Replacement Battery Pack (RBP): RBP0025
Replacement Battery Pack (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information
LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output
LED Indicators: Power On
HID Compliant USB Port(s): 1
Serial Port: Dry Contact
Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
Management Cable ( pcs ): Power Cord x4 | USB Cable x1
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 433 x 44 x 389mm
Weight: 13.7kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 24
Certifications: CE | EAC | RCM | RoHS
Warranty: 2 Years

Line-interactive UPS Topology
Simulated Sine Wave Output
Overload Protection
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
What's in the box?
1 x OR1000ERM1U UPS
1 x Rackmount Ears
1 x Power Cord
1 x USB Cable
1 x User Manual

CyberPower OLS3000E is a high-performance UPS featuring online double-conversion topology, providing seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance, transportation, and emergency systems. Features/Specifications: Phase: Single Phase Form Factor: Tower 95% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 ± 10% Input Voltage Range ( Vac ): 190 - 300 Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 140 - 300 Vac | 0-80% Load for 160 - 300 Vac | 0-100% Load for 190 - 300 Vac Input Frequency ( Hz ): 50 ± 10 | 60 ± 10 120% Load Immediately Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately Overload Protection (Bypass Mode): >130% Load Immediately Crest Factor: 3 : 1 Harmonic Distortion (Linear Load): THD?3% Harmonic Distortion (Non-linear Load): THD?5% Internal Bypass: Automatic Bypass, Manual Bypass Outlet(s) - Total: 6 Outlet Type: IEC C19 x 1 | Hardwire Terminal Block x 1 | IEC C13 x 4 Outlet(s) - Battery ; Surge Protected: 5 Typical Transfer Time ( ms ): 0 Runtime at Half Load ( min ): 14 Runtime at Full Load ( min ): 4 Typical Recharge Time ( Hours ): 5 Maximum Charging Current ( A ): 1 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: No Battery Type: Sealed Lead-acid Compatible Extended Battery Module (EBM): BPSE72V45A Max. EBM Quantity ( pcs ): 3 Surge Suppression ( Joules ): 440 EMI/RFI Filtration: Yes Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault ; Warning, Other Information, Event ; Log LCD Setting ; Control: Mode Setting, Alarm Setting, Input ; Output, Battery Setting HID Compliant USB Port(s): 1 Emergency Power Off (EPO) Port: Yes Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1 Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Enclosure Construction: Metal Dimensions: 196 x 337 x 416mm Weight: 28.2kg Online (Double Conversion) UPS Topology Generator Compatible Zero Transfer Time Extended Battery Module (EBM) EMI and RFI Filtration LCD Status Display PowerPanel Management Software ECO Mode Overload Protection Smart Battery Management (SBM) Surge and Spike Protection Phone/Fax/Modem/DSL/Network Protection Emergency Power Off (EPO) Port SNMP/HTTP Remote Management Capability (Optional) Form Factor: Tower

CyberPower Systems Online S (A) 2000VA/1800W Rack UPS - 12V/9AHx4 - 8x IEC C13 - USB & Serial Port & SNMP Slot (optional RMCARD205) - 2 Yrs Adv. Replacement WTY - Incl Rail kit Features/Specifications: Phase: Single Phase Form Factor: Rackmount, Tower UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 95% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 ± 10% Input Voltage Range ( Vac ): 190 - 300 Adjustable Voltage Range ( Vac ): 0-30% Load for 80 - 300 Vac | 0-50% Load for 120 - 300 Vac | 0-75% Load for 160 - 300 Vac | 0-90% Load for 190 - 300 Vac | 0-100% Load for 200 - 300 Vac Input Frequency ( Hz ): 50 ± 10 | 60 ± 10 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 9 Input Power Factor: 0.99 Input Connector Type: IEC C14 Power Cord Length (m.): 1.5 Output Capacity (Watts): 1800 On Battery Waveform: Pure Sine Wave On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1% Output Voltage Setting: Configurable On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5% Output Frequency Setting: Configurable Power Factor: 0.9 ECO Mode Voltage Tolerance: ± 15 % Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately Overload Protection (Bypass Mode): >130% Load Immediately Crest Factor: 3 : 1 Harmonic Distortion (Linear Load): THD?3% Harmonic Distortion (Non-linear Load): THD?5% Internal Bypass: Automatic Bypass, Manual Bypass Outlet(s) - Total: 8 Outlet Type: IEC C13 x 8 Outlet(s) - Battery ; Surge Protected: 8 Outlet(s) - Critical Load (CL): 4 Outlet(s) - Non-Critical Load (NCL): 4 Typical Transfer Time ( ms ): 0 Runtime at Half Load ( min ): 11.9 Runtime at Full Load ( min ): 4 Typical Recharge Time ( Hours ): 4 Maximum Charging Current ( A ): 1.5 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: Yes - Qualified Personnel Only Battery Type: Sealed Lead-acid Battery Cartridge: RBP0157 RBP Quantity ( pcs ): 1 Battery Quantity (Each RBP) ( pcs ): 4 Battery Voltage (Each RBP) ( V ): 48 Compatible Extended Battery Module (EBM): BPSE48V40ART2U Extended Battery Module Auto-detection: Yes Max. EBM Quantity ( pcs ): 3 Surge Suppression ( Joules ): 363 EMI/RFI Filtration: Yes Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault ; Warning, Other Information, Event ; Log LCD Setting ; Control: Mode Setting, Alarm Setting, Input ; Output, Battery Setting HID Compliant USB Port(s): 1 Dry Contact (with Relay): Yes Emergency Power Off (EPO) Port: Yes Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery Management Cable ( pcs ): Power Cord x2, USB Cable x1 Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Enclosure Construction: Metal Rackmount Rail: Yes Rackmount Ears: Yes Dimensions: 438 x 88 x 430 Weight: 19.2kg Certifications: CE, RCM Online (Double Conversion) UPS Topology Generator Compatible Zero Transfer Time Extended Battery Module Auto-detection Critical/Non-critical Load Outlets Phone/Fax/Modem/DSL/Network Protection Variable Speed Fans PowerPanel Management Software Rack/Tower Convertible Configurations ECO Mode Overload Protection Smart Battery Management (SBM) Surge and Spike Protection EMI and RFI Filtration Color LCD Panel Emergency Power Off (EPO) Port SNMP/HTTP Remote Management Capability (Optional) Form Factor: Rackmount / Tower

CP 1500VA/1350W Tower UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 160 - 300
Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 6.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1
Power Cord Length: 1.8m
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Outlet(s) - Total: 4
Outlet Type: IEC C13 x 4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 14
Runtime at Full Load ( min ): 4
Typical Recharge Time ( Hours ): 5
Maximum Charging Current ( A ): 1
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Compatible Extended Battery Module (EBM): BPSE36V45A
Max. EBM Quantity ( pcs ): 3
Surge Suppression ( Joules ): 440
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 151 x 225 x 394mm
Weight: 15.3kg
Online Thermal Dissipation ( BTU/hr ): 420
Audible Noise at 1.5M from Surface of Unit: 45 dBA
Certifications: CE / RCM / RoHS
Warranty: 2 Years

Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
What's in the box?
1 x OLS1500E UPS
1 x Power Cord
1 x USB Cable
1 x Phone Line
1 x User Manual

CyberPower OLS2000E is a high-performance UPS featuring online double-conversion topology, providing seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance, transportation and emergency systems. Features/Specifications: Phase: Single Phase Form Factor: Tower 95% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 ± 10% Input Voltage Range ( Vac ): 160 ~ 300 Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 300 Vac | 0~60% Load for 120 ~ 300 Vac | 0~80% Load for 140 ~ 300 Vac | 0~100% Load for 160 ~ 300 Vac Input Frequency ( Hz ): 50 ± 10 | 60 ± 10 120% Load Immediately Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately Overload Protection (Bypass Mode): >130% Load Immediately Crest Factor: 3 : 1 Harmonic Distortion (Linear Load): THD?3% Harmonic Distortion (Non-linear Load): THD?5% Internal Bypass: Automatic Bypass, Manual Bypass Outlet(s) - Total: 5 Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 Outlet(s) - Battery ; Surge Protected: 4 Typical Transfer Time ( ms ): 0 Runtime at Half Load ( min ): 15 Runtime at Full Load ( min ): 5 Typical Recharge Time ( Hours ): 5 Maximum Charging Current ( A ): 1 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: No Battery Type: Sealed Lead-acid Compatible Extended Battery Module (EBM): BPSE72V45A Max. EBM Quantity ( pcs ): 3 Surge Suppression ( Joules ): 440 EMI/RFI Filtration: Yes Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault ; Warning, Other Information, Event ; Log LCD Setting ; Control: Mode Setting, Alarm Setting, Input ; Output, Battery Setting HID Compliant USB Port(s): 1 Emergency Power Off (EPO) Port: Yes Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1 Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Enclosure Construction: Metal Dimensions: 196 x 337 x 416mm Weight: 23.8kg Certifications: CE, RCM Online (Double Conversion) UPS Topology Generator Compatible Zero Transfer Time Extended Battery Module (EBM) EMI and RFI Filtration LCD Status Display PowerPanel Management Software ECO Mode Overload Protection Smart Battery Management (SBM) Surge and Spike Protection Phone/Fax/Modem/DSL/Network Protection Emergency Power Off (EPO) Port SNMP/HTTP Remote Management Capability (Optional) Form Factor: Tower

StarTech.com AC Adapter - 1 Each - For Media Converter, HDMI Splitter, KVM Switch - 5 V DC Output - 3 A

StarTech.com AC Adapter - 1 Each - For Docking Station, Drive Enclosure - 12 V DC Output - 6.50 A

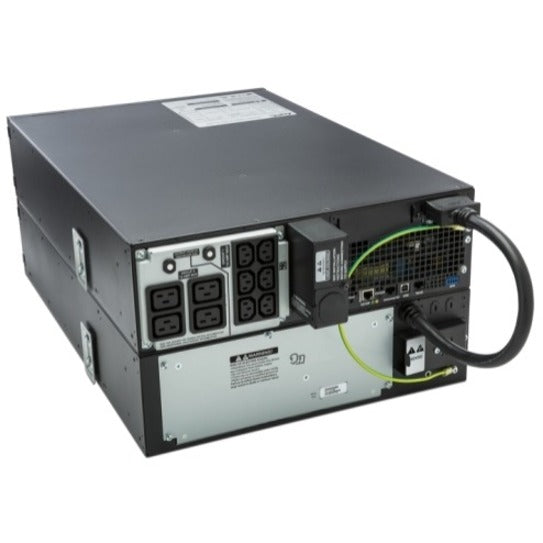

APC by Schneider Electric Smart-UPS SUA5000RMI5U Line-interactive UPS - 5 kVA/4 kW - 5U Tower - 3 Hour Recharge - 230 V AC Input - 2 x IEC 60320 C19, 6 x IEC 60320 C13 Receptacle(s) - SNMP Manageable

User Manual

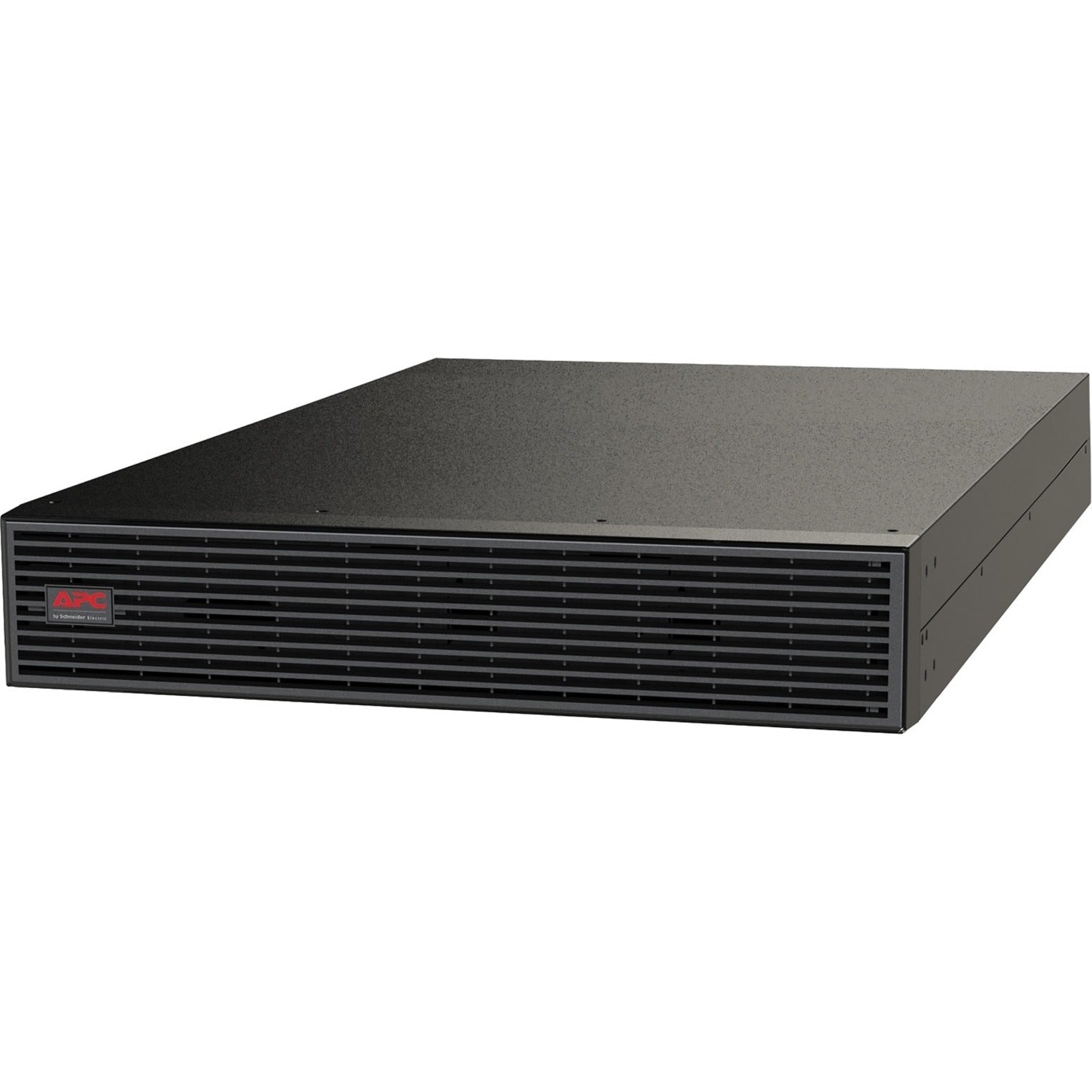

APC by Schneider Electric Easy UPS UPS Battery Pack - Lead Acid - Maintenance-free/Sealed/Leak Proof

APC by Schneider Electric Easy UPS SRV6KRILRK Double Conversion Online UPS - 6 kVA/6 kW - 2U Rack-mountable - 3 Hour Recharge - 230 V AC Input - 220 V AC Output - 1 x Terminal Block Receptacle(s) - Single Phase - Serial Port

APC by Schneider Electric Easy UPS On-Line Double Conversion Online UPS - 2 kVA/1.80 kW - 2U Rack-mountable - 4 Hour Recharge - 230 V AC, 120 V AC Input - 230 V AC, 220 V AC Output - 4 x IEC 60320 C13 Receptacle(s) - Sine Wave - USB - LCD Display

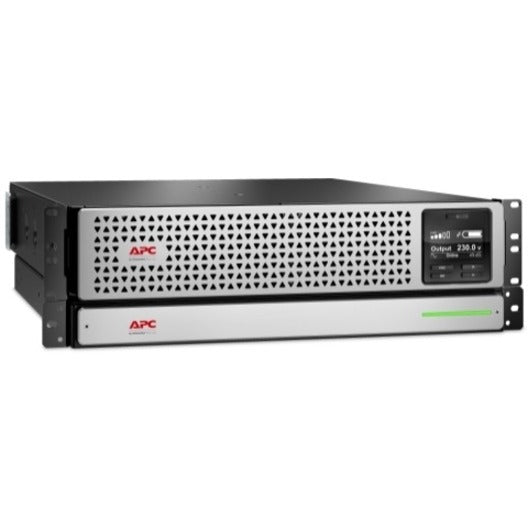

APC by Schneider Electric Smart-UPS SRT Double Conversion Online UPS - 1.50 kVA/1.35 kW - 3U Tower/Rack Convertible - 6 Hour Recharge - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13 Receptacle(s)

Datasheet 1
Datasheet 2
Datasheet 3
Datasheet 4
Datasheet 5
Datasheet 6
Datasheet 7

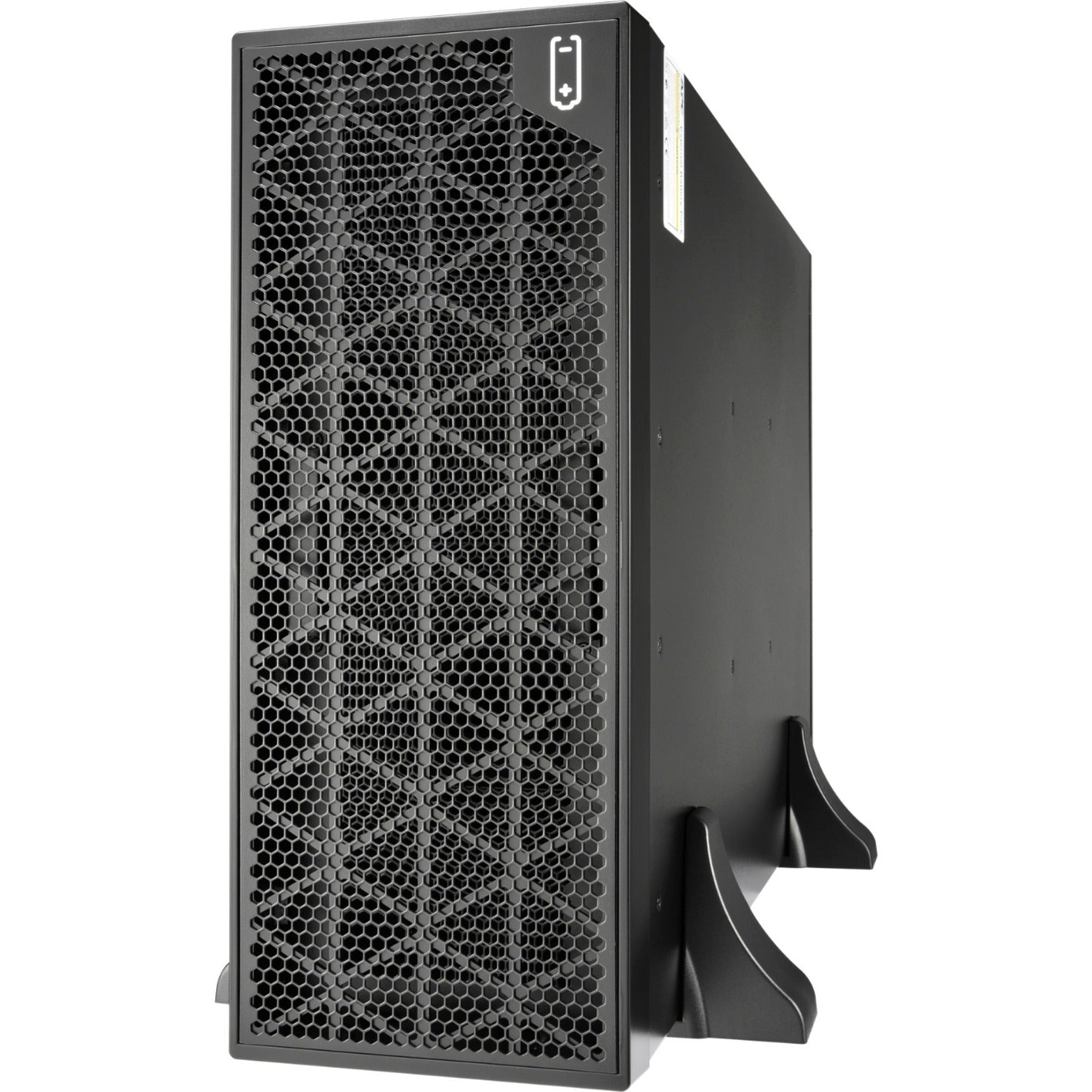

APC by Schneider Electric Smart-UPS UPS Battery Pack - 5000 mAh - 192 V DC - Lead Acid - 3 Year Minimum Battery Life - 5 Year Maximum Battery Life

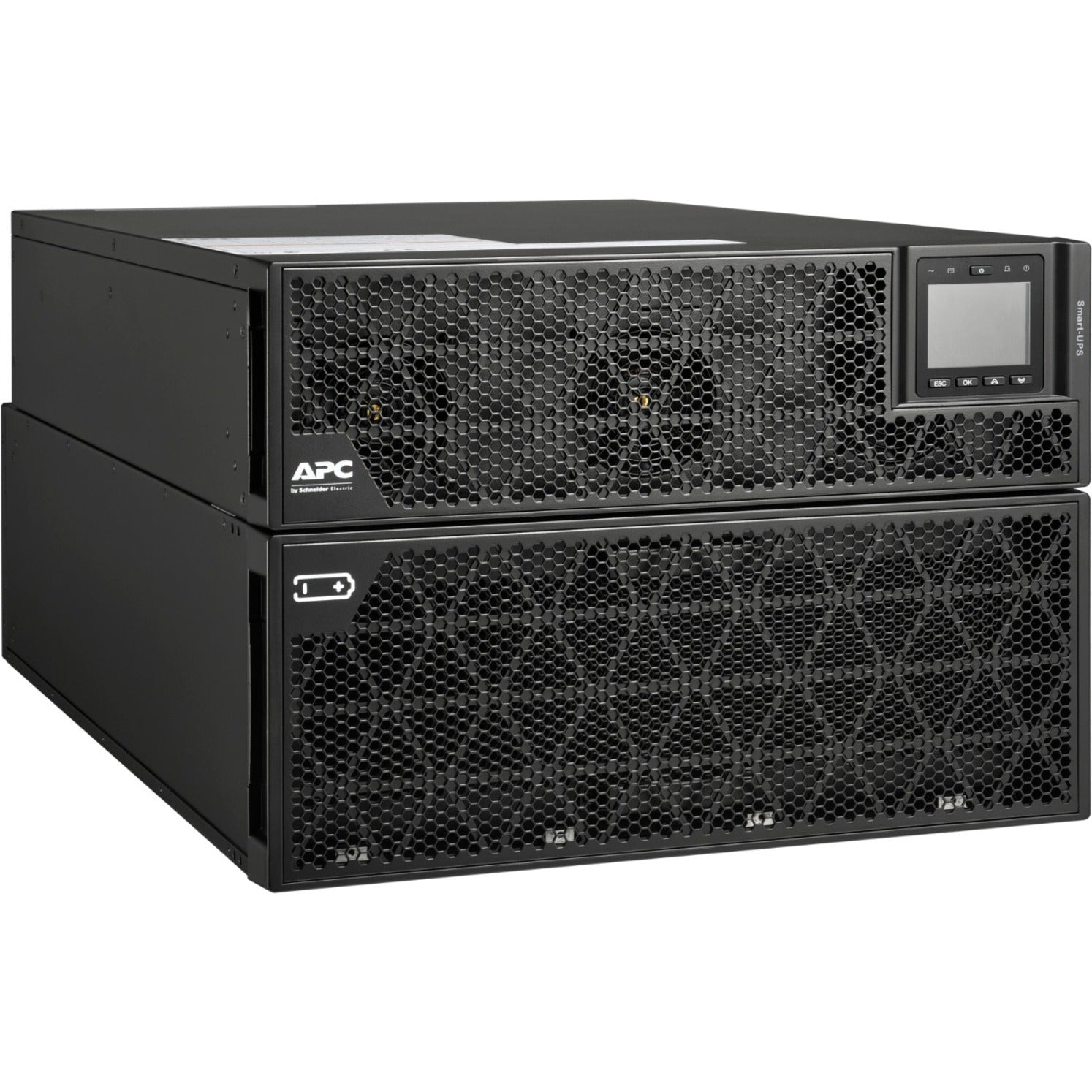

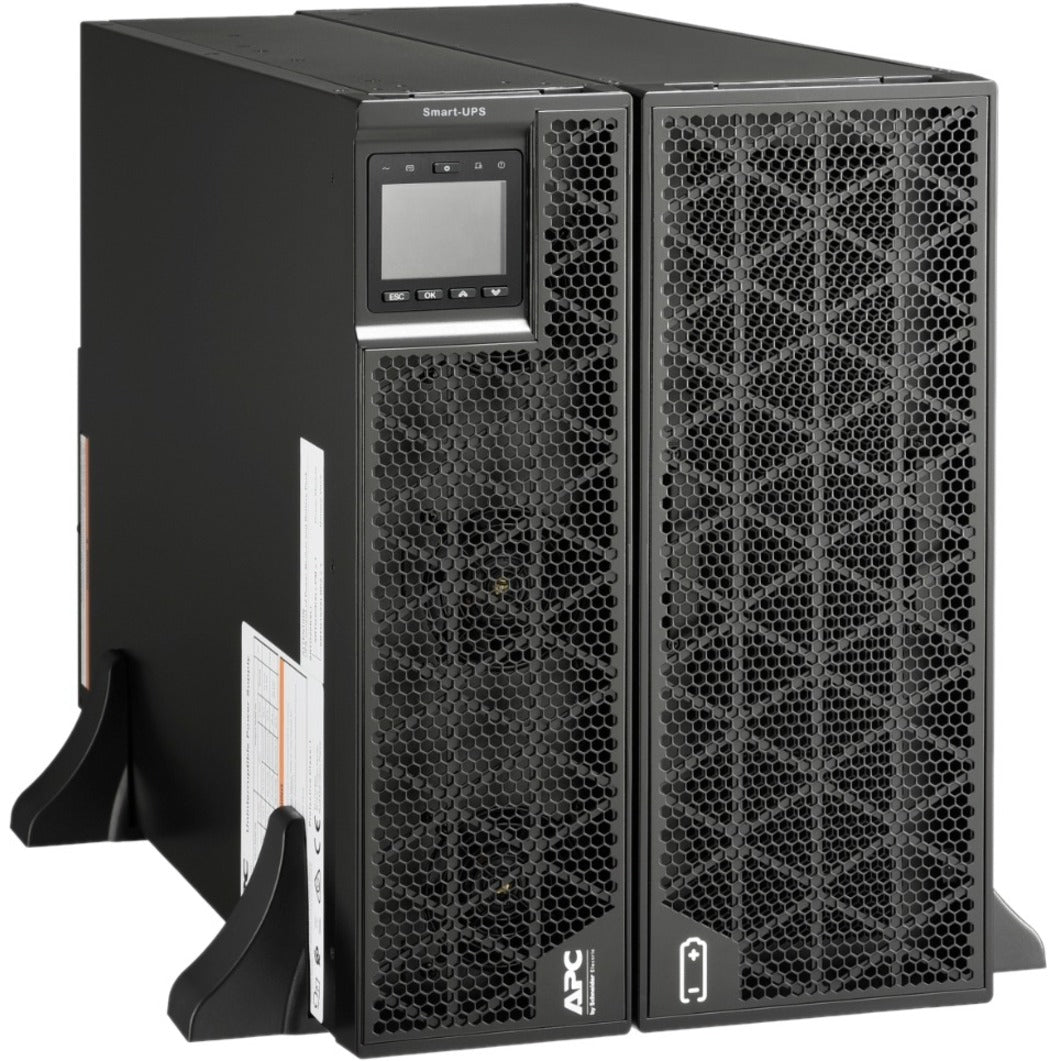

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 15 kVA - 7U Rack/Tower - 4 Hour Recharge - 230 V AC Input - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output - Pure Sine Wave - Serial Port

Datasheet 1
Datasheet 2
Datasheet 3
Datasheet 4

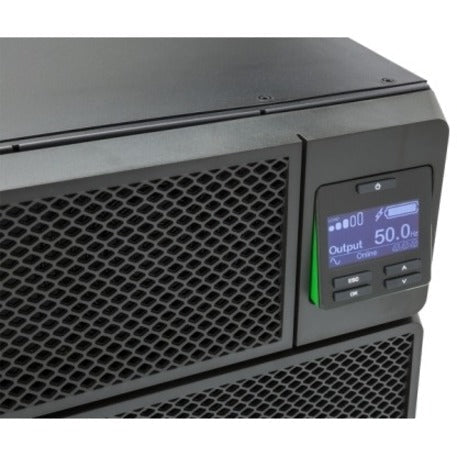

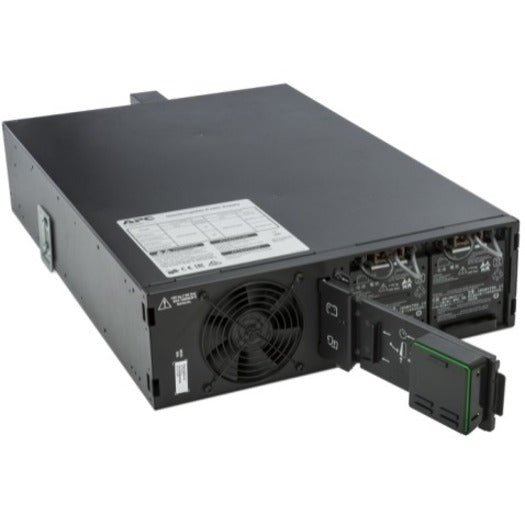

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 5 kVA/4.50 kW - Rack-mountable - 3 Hour Recharge - 4 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 Receptacle(s) - USB

APC Smart-UPS UPS Battery Pack - Lead Acid - 3 Year Minimum Battery Life - 5 Year Maximum Battery Life

User Manual
Product Datasheet
Datasheet 1
Datasheet 2
Datasheet 3
Datasheet 4
Datasheet 5
Datasheet 6

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1.50 kVA - 2U Rack-mountable - 230 V AC Output - 12 Receptacle(s) - Sine Wave - 12 x Battery/Surge Outlet

Datasheet 1
Datasheet 2

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1.50 kVA/1.50 kW - 2U Tower/Rack Convertible - 3 Hour Recharge - 5.20 Minute Stand-by - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13 Receptacle(s) - Serial Port

User Manual

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1 kVA/1 kW - 2U Tower/Rack Convertible - 3 Hour Recharge - 8.40 Minute Stand-by - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13 Receptacle(s) - Serial Port

Datasheet 1
Datasheet 2
