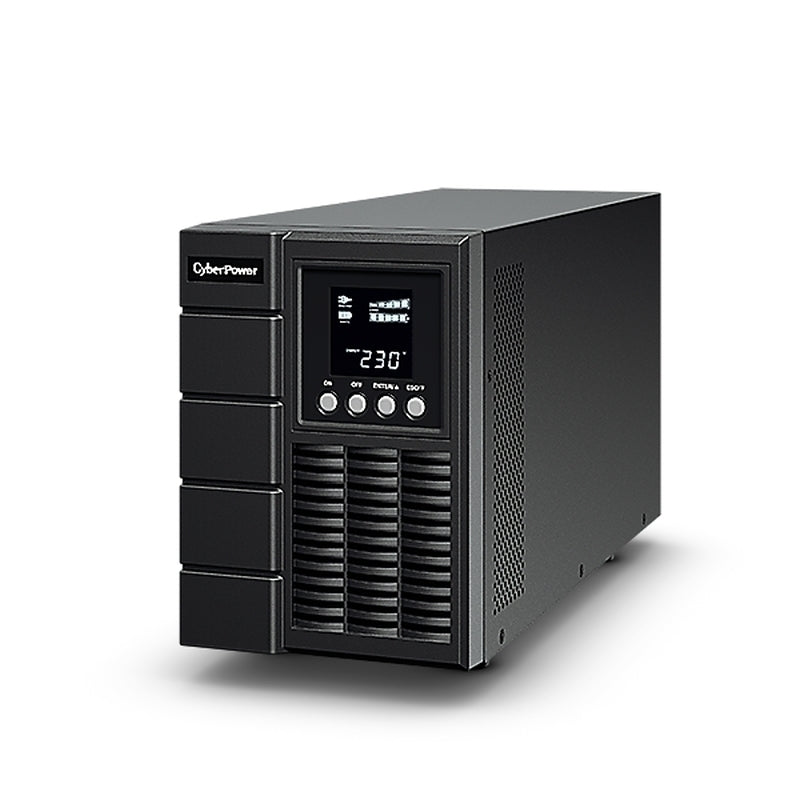

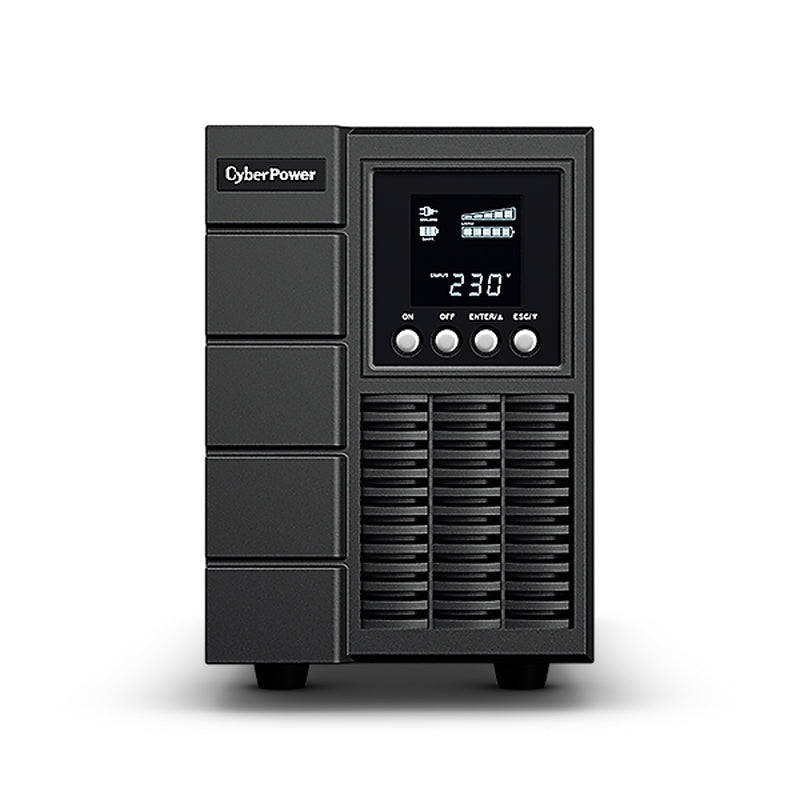

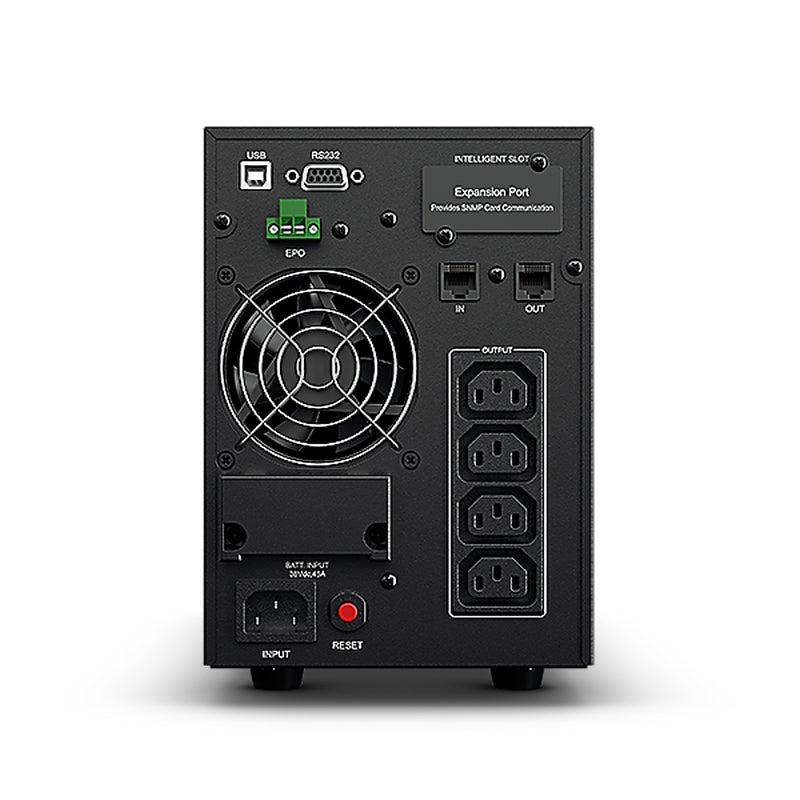

Cyberpower OLS1500E Premium Smart App Tower UPS - 1500VA/1350W

CP 1500VA/1350W Tower UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 160 - 300
Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 6.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1
Power Cord Length: 1.8m
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Outlet(s) - Total: 4
Outlet Type: IEC C13 x 4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 14
Runtime at Full Load ( min ): 4
Typical Recharge Time ( Hours ): 5
Maximum Charging Current ( A ): 1
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Compatible Extended Battery Module (EBM): BPSE36V45A
Max. EBM Quantity ( pcs ): 3
Surge Suppression ( Joules ): 440
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 151 x 225 x 394mm
Weight: 15.3kg
Online Thermal Dissipation ( BTU/hr ): 420
Audible Noise at 1.5M from Surface of Unit: 45 dBA
Certifications: CE / RCM / RoHS
Warranty: 2 Years

Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
What's in the box?
1 x OLS1500E UPS
1 x Power Cord
1 x USB Cable
1 x Phone Line
1 x User Manual

Part No.: OLS1500E
