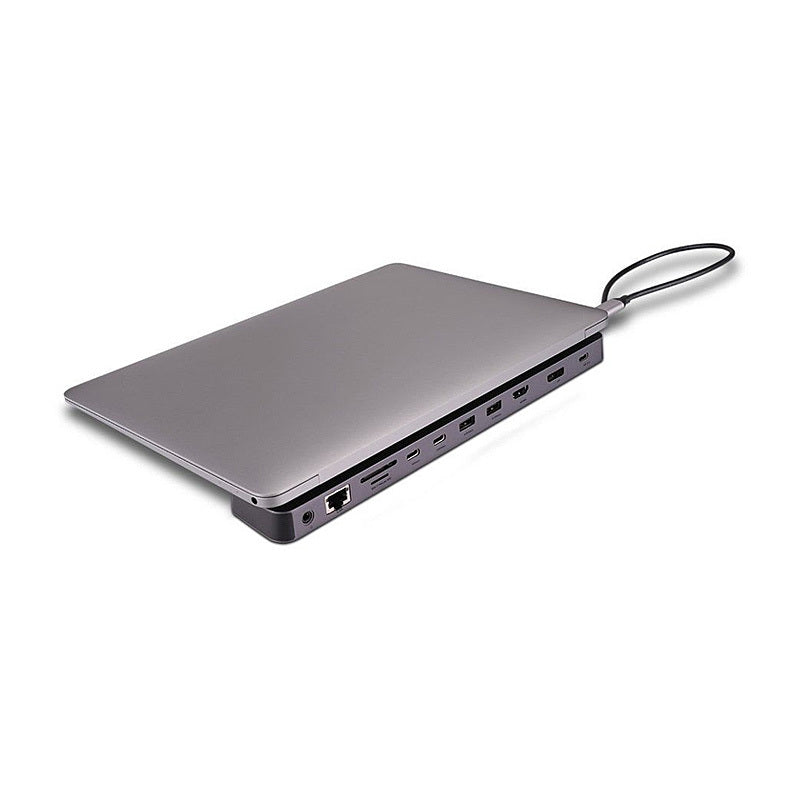

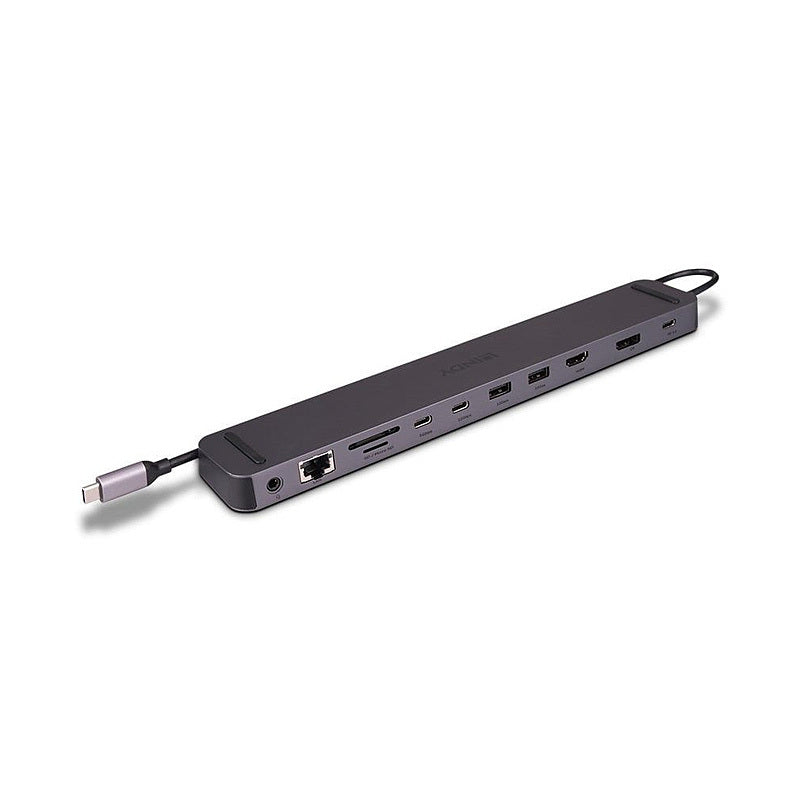

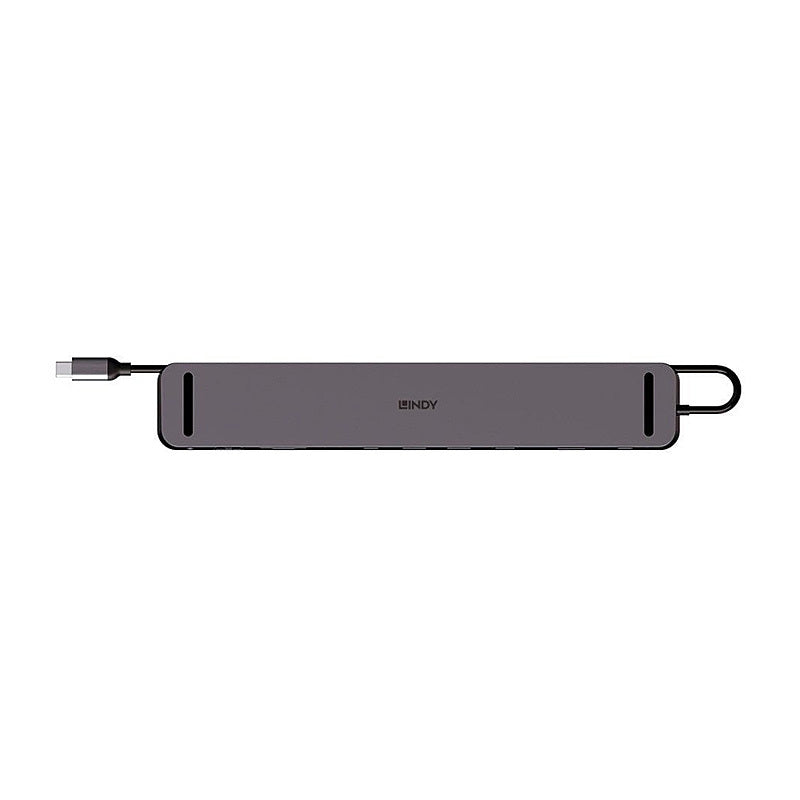

Lindy DST-Mini XT 810, USB-C Laptop Docking Station
Features/Specifications:
Connects an HDMI and/or a DisplayPort display, USB peripherals and power over a single cable
Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)
Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x Type A, 1 x Type C)
USB Power Delivery capable up to 100W
2 year warranty
Interface:USB Type C to 1x HDMI / 1x DP/ 2x USB Type A / 2x USB Type C / 1x RJ45 / 1x SD / 1x microSD / 1x 3.5mm Audio
Interface Standard:USB 3.2 / 3.1 Gen 2 ; Gen 1, Gigabit LAN, HDMI 2.1, DP 1.4a, Audio (combo)
Supported Bandwidth: 10 Gbps, 10/100/1000 Mbps
Maximum Input Resolution:8K 7680x4320 30Hz
Maximum Output Resolution:
Single Display: 7680x4320 30Hz, 3840x2160 120Hz
Dual Displays: 3840x2160 60Hz (each)
Chipset:VMM6210, VL822, GL3510, GL3224, RTL8153B, ALC4032, VL102
Compatibility:USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support;Windows, macOS, Linux, Android, ChromeOS.
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 1.4 ; 2.2
Supported Audio: Sampling rate 192kHz/24bit
Separate Audio Ports:1x Audio combo port 3.5mm
Special :DisplayPort Alternate Mode, MST Extended display support for Windows, Battery Charging 1.2 (only USB 3.2 Gen 2 Type C port), supports simultaneous card reading, PXE (Preboot Execution Environment) and Wake on LAN (WOL), Supports MAC Address Pass-through (this feature is dependent upon the compatibility of the hardware used in each set up)
Connectors
Inputs: 1x USB Type C (Male)

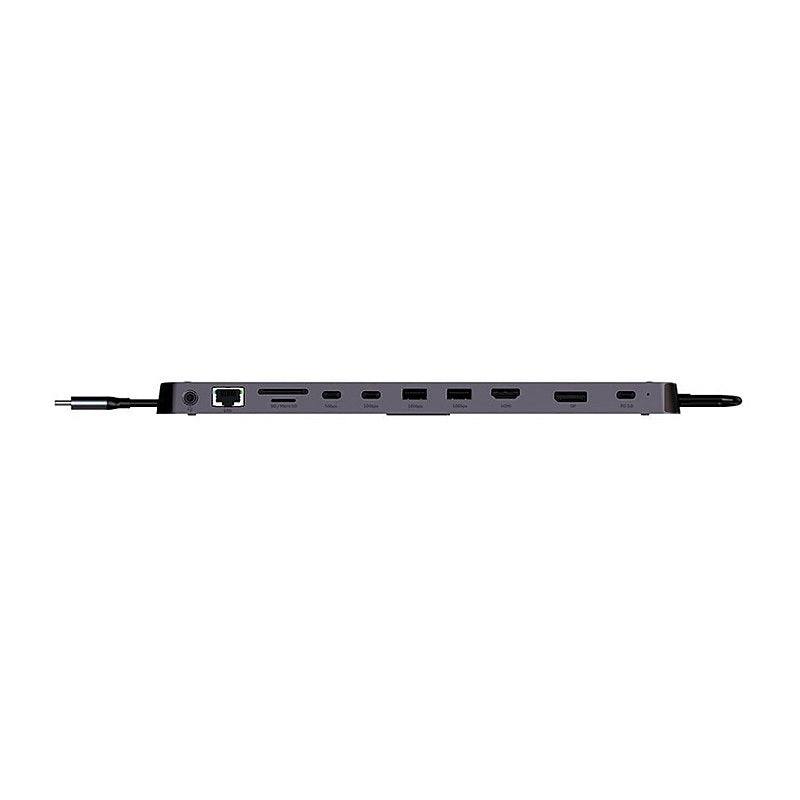

Outputs:1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 2x USB Type C (Female) / 1x SD slot, 1x microSD slot, 1x 3.5mm Audio (Female)
Power:1 x USB Type C (Female) PD port
Physical Properties
Dimensions WxDxH: 270x45x16mm (10.63x1.77x0.63in)
(Fixed) cable length: 360mm (14.17in)
Housing Material: Aluminium
Net Weight:0.23kg (0.51lb)
Operating Temperature: 0 °C - 40 °C (32 °F - 104 °F)
Storage Temperature: -10 °C - 70 °C (14 °F - 158 °F)
Humidity: 0% - 85% RH (non-condensing)
Power Requirements: 15W
Colour: Anthracite
Miscellaneous
Packaging Type: Carton box
Packaging Dimensions: 365x93x35mm (14.37x3.66x1.38in)
Gross Weight: 0.37kg (0.82lb)
Warranty (Years): 2
Product Compliance: CE, FCC, REACH ; RoHS, CP65
