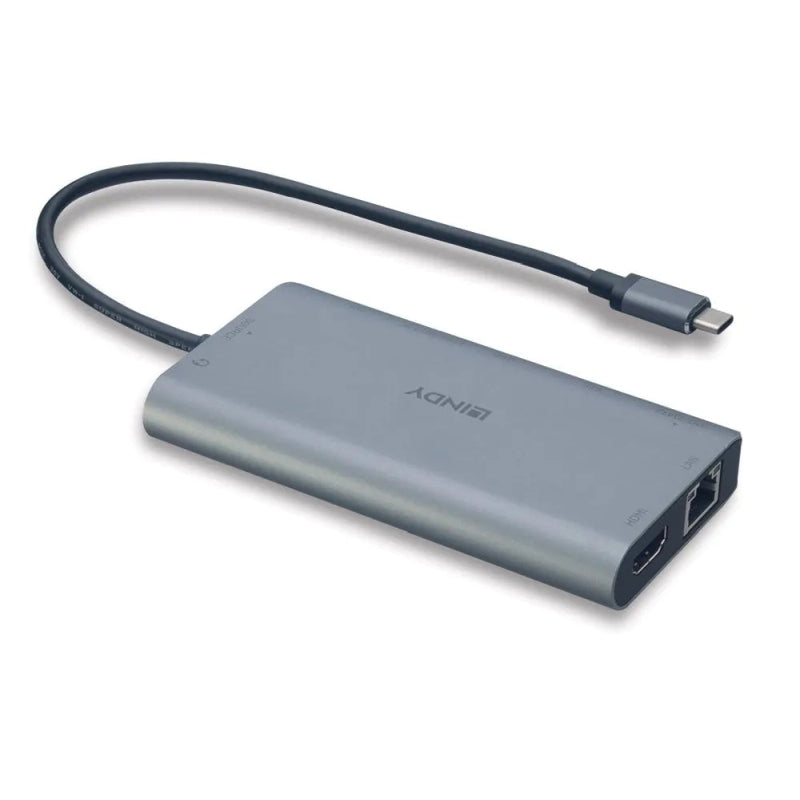

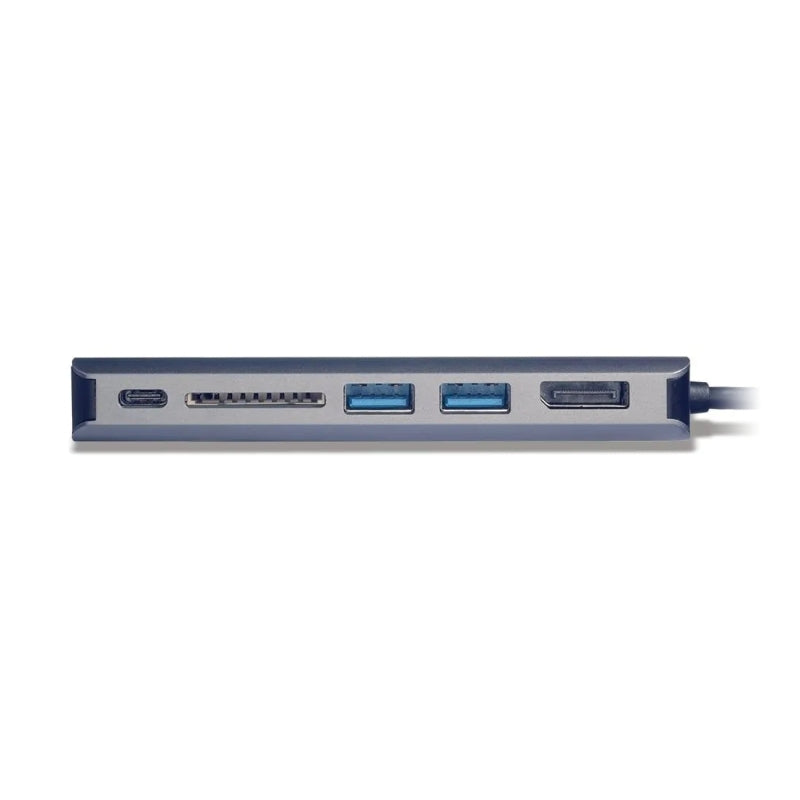

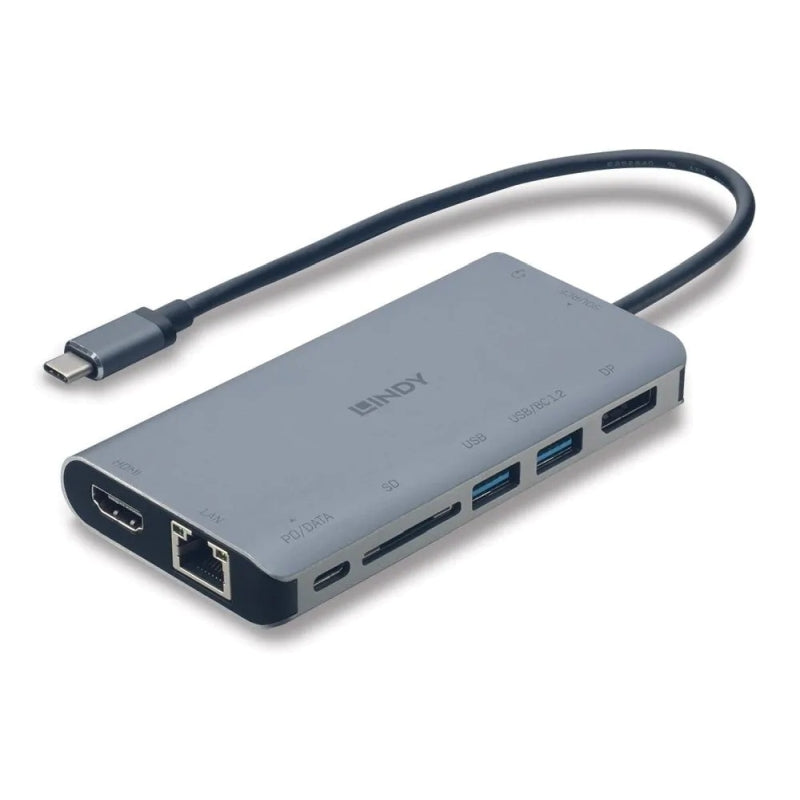

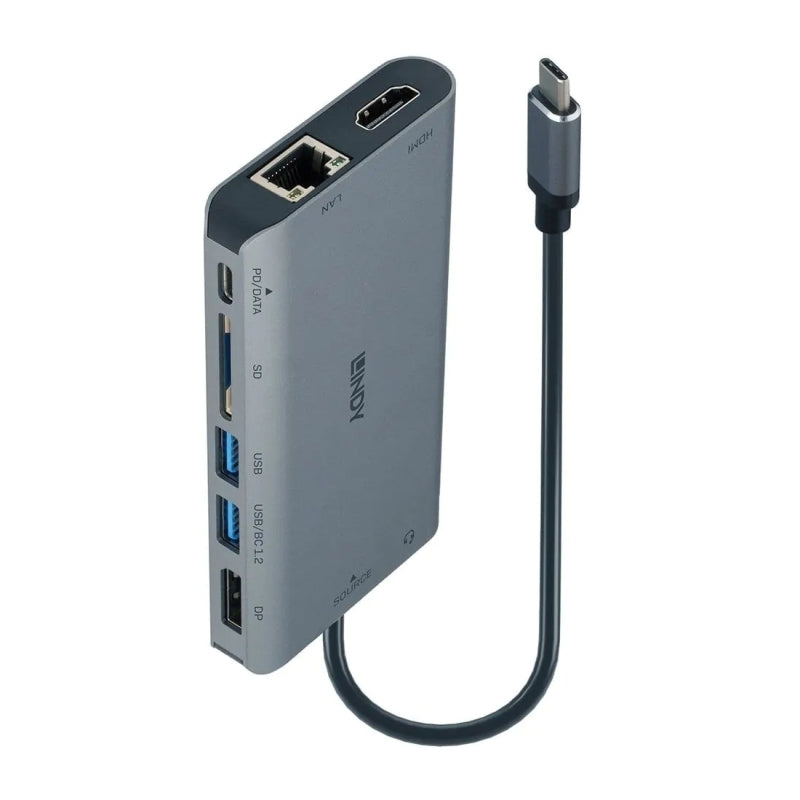

The Lindy USB 3.2 Type C Mini Laptop Dock is a compact and versatile solution for connecting laptops to a range of interfaces including displays. Featuring all critical interfaces required for a modern workstation
Features/Specifications:
Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0 | HDMI 1.4 | DP 1.2 | Gigabit LAN | Audio (combo)
Supported Bandwidth: 5 Gbps | 10/100/1000 Mbps
Maximum Input Resolution: 3840 x 2160@30Hz
Maximum Output Resolution: 3840 x 2160@30Hz (HDMI) | 3840 x 2160@30Hz (DP) | simultaneous connection: 1920 x 1080
Chipset: VM3332 | VL817 | VL102 | AU6438 | RTL8153B | HS-100B
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 1.4
Supported Audio: Supports 48/44.1kHz audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm
Special : DisplayPort Alternate Mode | USB Type C Female port supports power and data | 1x Battery Charging 1.2 port
Inputs: 1 x USB Type C (Male)
Outputs: 1x HDMI (Female) | 1x DisplayPort (Female) | 1x RJ45 (Female) | 2x USB Type A (Female) | 1x USB Type C (Female) / 1x SD slot | 1x 3.5mm Audio (Female)
Power: 1 x USB Type C (Female) PD port
Dimensions WxDxH: 116.5 x 61 x 16mm
Housing Material: Aluminium
Net Weight: 0.115kg
Power Requirements: Bus-powered
Packaging Dimensions: 150 x 137 x 120mm
Gross Weight: 0.15kg
Warranty (Years): 2
Certificated: CE | UKCA | FCC | REACH ; RoHS | California Proposition 65
Adds 2 USB Type A ports ; 1 USB Type C port (5Gbps) a 4K HDMI and DP port Gigabit Ethernet and an Audio port to a laptop
Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays
DisplayPort Alternate Mode
USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock
Extend Your Displays
Added Connectivity
Plug-and-Play
2 year warranty
Cartridge/Colour/Type: Grey
Output Port: HDMI
Output Port: DisplayPort
Output Port: USB-C
Output Port: Network
Output Port: USB-A
Output Port: Audio
