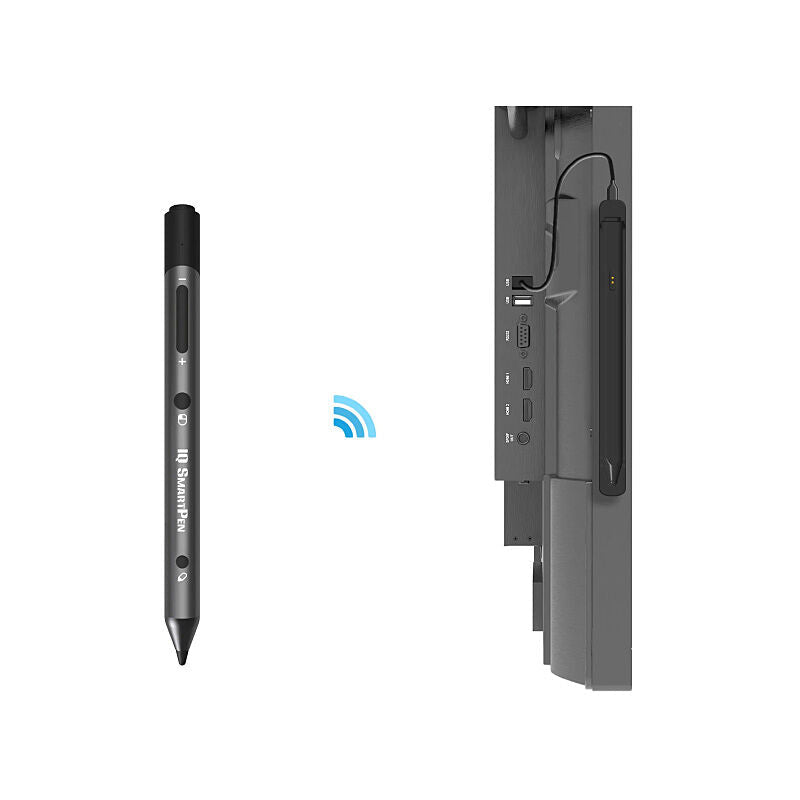

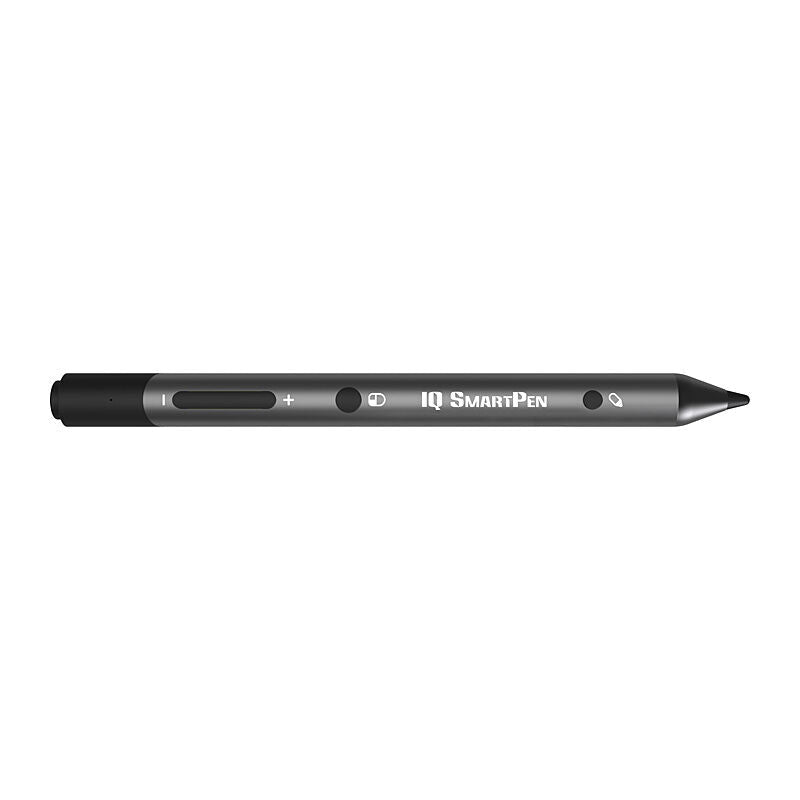

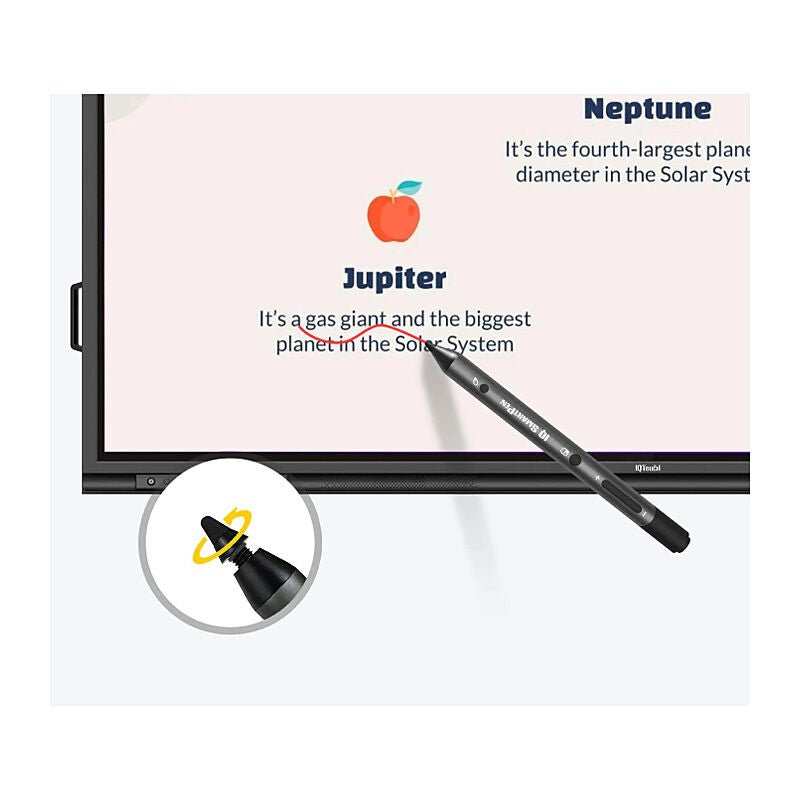

IQBOARD Smart Pen V3.0

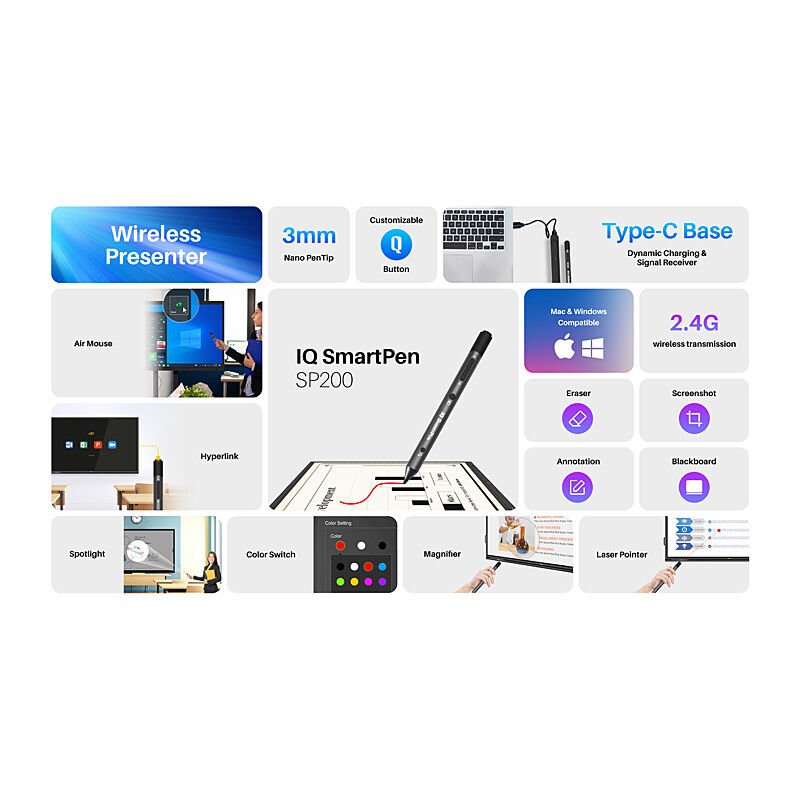

Features

• Seamless Compatibility Tailored to You
• Where Charging Meets Connectivity Excellence
• 3mm Nano Precision Unleashed
• Unlock Possibilities with Q Button
• Annotate and Erase As You Want
• Transform Your Mouse Experience with One Click
• Highlight key points with aid tools
• Elevate Your Teaching with IQ SmartPen and IQClass One Software

Specifications

• Tip: 3mm pom
• Communication Mode: 2.4GHz RF Wireless Technology
• Interface: Contact Charging
• Battery: Built-in 150mAh lithium Battery
• Working Current: About 10mA
• Frequency Range: 2402–2480MHz
• RF Transmission Rate: 250 Kbps
• Receiver Sensitivity: 5∼−40 dBm
• Working Temperature: −30°~55°C
• Communication Distance: > 15m

Charging Base (USB Receiver) Specifications

• Description: Charging Base (USB Receiver)
• Operating System: XP/WIN7/WIN8/WIN10, Android
• Compatible Interface: USB 2.0, USB 1.1 and USB 3.0
• Operating Voltage: USB Bus Power (3.3–4.2V)

Downloads

• Product brochure

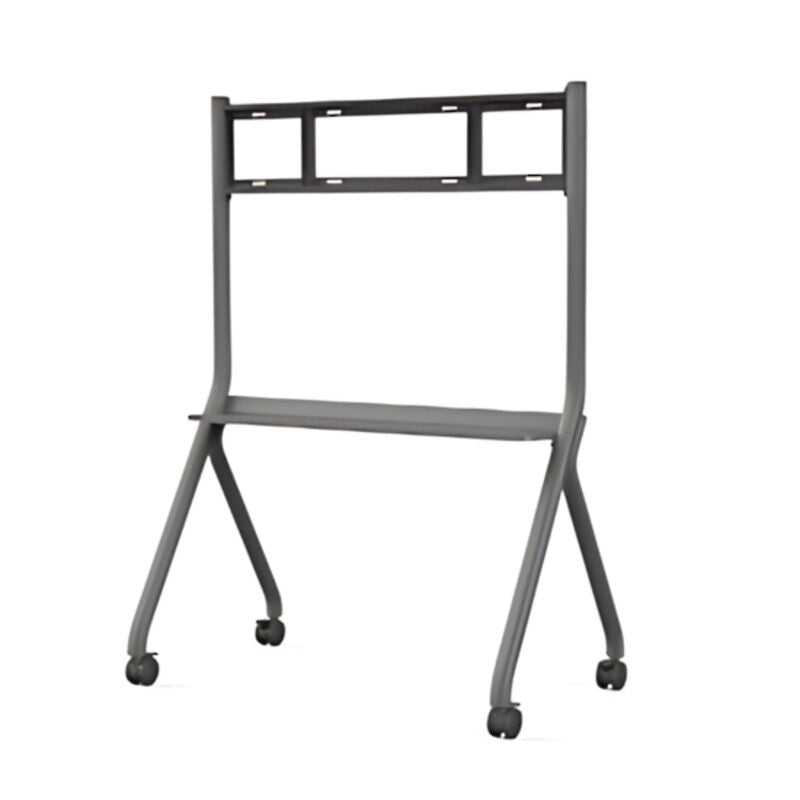

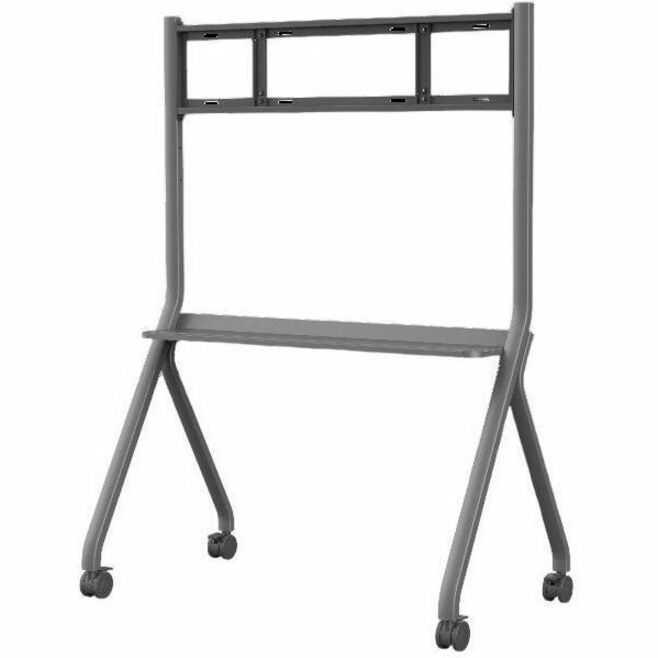

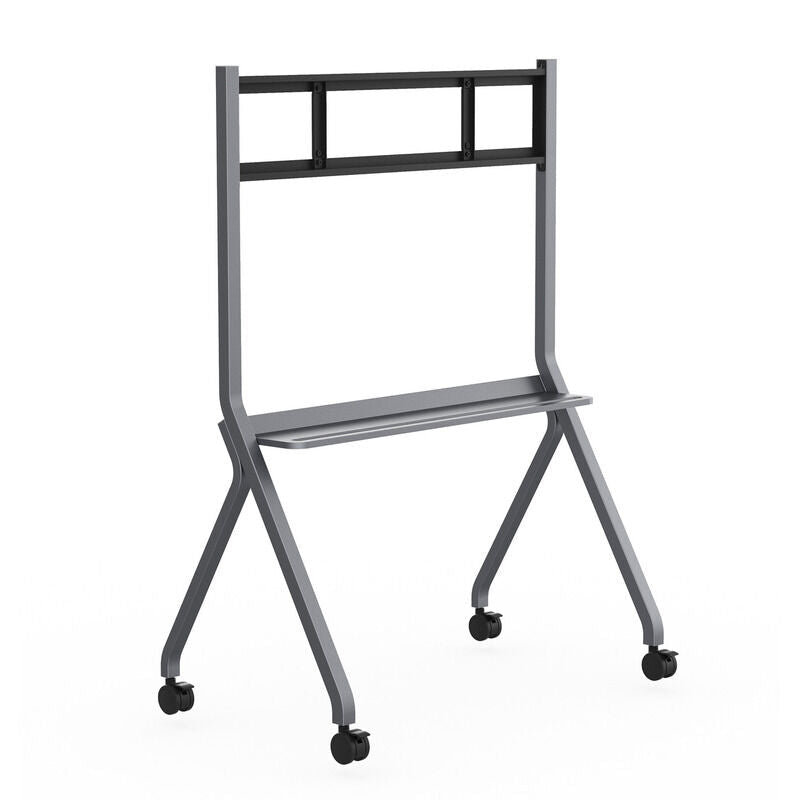

MAXHUB Trolley For Display - Maxmium load 100KG, avaliable for 55'' - 86''

Specifications

• Type: Multimedia stand
• Product colour: Grey
• Maximum weight capacity: 100 kg
• Height: 1597 mm, Width: 1160 mm, Depth: 661 mm
• Package width: 1630 mm, Package depth: 755 mm, Package height: 160 mm

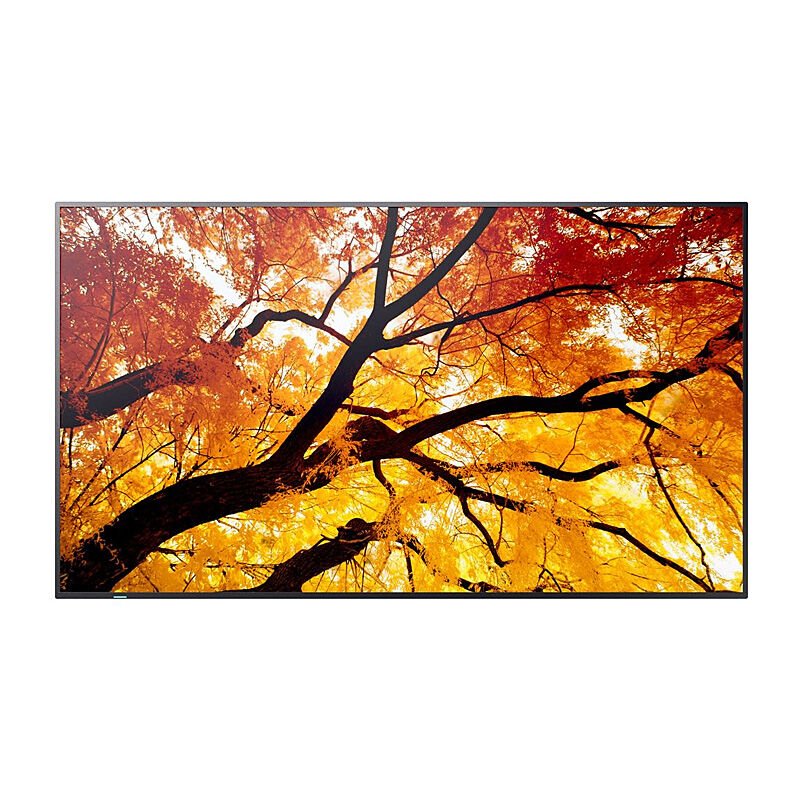

SHARP Commercial Display with 550nits Brightness and High Haze. Landscape or Portrait use. USB-C, HDMI and DP inputs, with SDM-S/L and RPi CM4/5 expansion slots. SpectraView Engine and Video & LAN daisychain. Full commercial feature set. 24/7 use.

Features

• Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment.
• Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.

Specifications

General Information

• Panel Technology: IPS with Direct LED backlights
• Active Screen Area (W × H): 941.2 × 529.4 mm
• Screen Size: 43 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.245 mm
• Brightness: 550 cd/m²
• Contrast Ratio: 8000:1
• Viewing Angle (H/V): 178° / 178° (typ. at CR 10:1)
• Colour Depth: 1.073 bn (10‑bit)
• Colour Gamut: 72% of NTSC
• Response Time: 8 ms
• Panel Refresh Rate: 60 Hz
• Haze Level: 25%
• Supported Orientation: Face Up; Landscape; Portrait

Resolution

• Native Resolution: 3840 × 2160
• Supported Resolutions: 640 × 480; 720 × 400; 720 × 480; 1024 × 768; 1280 × 720; 1280 × 800; 1280 × 1024; 1360 × 768; 1366 × 768; 1400 × 1050; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1920 × 2160; 3840 × 2160; 4096 × 2160

Synchronisation Rate

• Horizontal Frequency: 15–135 kHz
• Vertical Frequency: 23–76 Hz

Connectivity

• HDMI IN 1: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; ARC; CEC
• HDMI IN 2: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; CEC
• HDMI OUT: Video Output; UHD (60 Hz) HDCP 2.2; Audio Output; Loop Through: HDMI IN 2, Option, Compute module
• DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Input
• DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Output; Loop Through: DisplayPort IN, USB‑C 2
• USB‑A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
• USB‑A (Service): 2.5 W; Service
• USB‑C 1: Video Input; UHD (60 Hz); DP Alt 1.2; HDCP 2.2; Audio Input; USB 2.0 / 3.2; 65 W
• USB‑C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
• Audio Output (3.5 mm): Line Out
• LAN 1: 100 MBit/s
• LAN 2: Loop Through: LAN 1, RS‑232C, IR; 100 MBit/s
• RS‑232C: 9600 bps
• Remote In (3.5 mm): Eco Sensor (IR‑Extender, Ambient and Presence)
• Input Detect: Custom; Last; First
• PiP/PbP: 2‑Split; Scalable picture size

Calibration

• Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
• Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
• Calibration Software: Display Wall Calibrator

Open Modular Intelligence

• Compute Module Slot: RPi4 Compute Module
• Intel® SDM: Accepts Intel® Smart Display Modules Large and Small up to 66 W

Sensors

• Ambient Light Sensor: Integrated, triggered actions programmable
• Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
• Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

• Power Consumption: 75 W (shipping)
• Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
• Power Management: VESA DPMS
• Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80%
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 10% to 80%

Available Options

• Accessories: Eco Sensor (PNKTES1); Soundbar (PN‑ZCMS1)

Mechanical

• Dimensions (W × H × D): 965 × 557.2 × 66.5 mm
• Weight: 13.5 kg
• Bezel Width: 9.9 mm (left, right, top); 13.9 mm (bottom)
• VESA Mounting: 300 × 300 mm (FDMI); 4 holes; M6
• Ingress Protection: IP5x (front); IP2x (back)
• Packaging Dimensions (W × H × D): 1,070 × 675 × 161 mm
• Packaging Weight: 18 kg
• Material: Metal

Other Features

• Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C‑UL or CSA
• Pixel Failure Class: ISO 9241‑307, Class 1
• Resistance to Fire: Metal backcover; plastic material certified acc. to UL94‑5VB
• Energy Efficiency: 81 kWh/1000 h; Class G; LED backlight
• Ecological Standards: EnergyStar 8.0
• 3rd Party Certifications: Certified for Crestron CCV2 and XiO Cloud
• Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
• Colour Versions: Black Front Bezel, Black Back Cabinet
• Audio: Integrated Speakers (10 W + 10 W)
• Shipping Content: 2× AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Operating Hours: 24/7
• External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
• Remote Management: NaViSet Administrator 2
• Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

• Product brochure

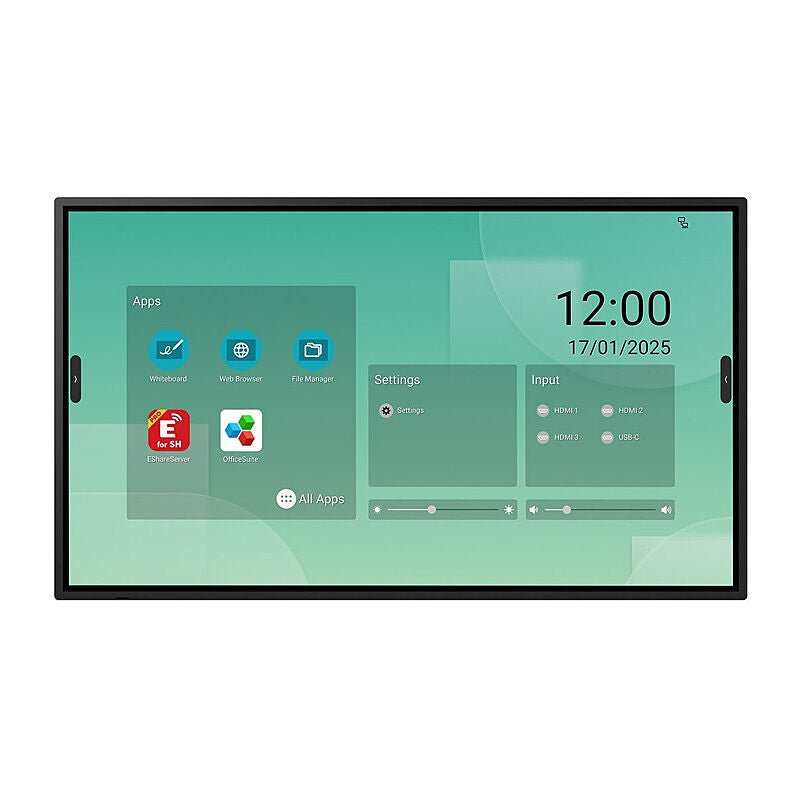

SHARP Recommended for 18/7 applications. 4K Display at up to 500nits brightness and 10W stereo speakers. Infrared touch up to 20 multi-touch. Built-in SoC with Android 14 and easy-to-use Applications. Ships with 2x Passive Stylus & Wireless Adapter.

Features

• Best readability – high brightness panel ensures content is readable even in well-lit environments and anti-glare coating avoids distracting reflections.
• Pen-On-Paper user experience – zero bonded glass and latest infrared touch technology enable highly accurate and responsive writing and drawing with up to 20 touch points.
• Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications.
• Highly customizable – a variety of settings allow the display to be optimised to meet the needs of different applications, from small meeting and huddle rooms to touch signage and wayfinding.
• Safe & Secure – latest Android 14 SoC provides a secure operating system which, together with extra security features, meets the highest IT security standards.

Specifications

General Information

• Panel Technology: VA with Direct LED backlights
• Screen Size: 43 inch
• Aspect Ratio: 16:9
• Contrast Ratio: 4000:1
• Brightness (without glass): 500 cd/m2
• Viewing Angle (H/V): 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Colour Depth [bn]: 1.073 (8bit + FRC)
• Response Time (typ.) [ms]: 8 (grey-to-grey)
• Panel Refresh Rate (Hz): 60Hz
• Haze Level (%): 25
• Supported Orientation: Landscape; Portrait; Tilt (0 to 45°)

Resolution

• Native Resolution: 3840 x 2160
• Supported Resolution: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 960; 1440 x 900; 1680 x 1050; 1920 x 1080; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 800 x 600

Touch Screen

• Touch Technology: Infrared
• Multi Touch: Real multi-touch up to 20 touches
• Touch Method: Finger; Gloves; Stylus dual pen tip (2.6mm/6.8mm)
• Supported Operating System: Native Multi-Touch: Windows 10/11, Linux, Android, Chrome OS; Single Touch (Default Mouse): Mac OS 13/14/15
• Data Interface: USB 2.0 (full speed) HID; USB powered, plug & play
• Accuracy [mm]: +/- 1
• Windows Ink: Yes
• Palm Rejection: No

Glass

• Type: Thermal-tempered, anti-glare coating; Zero Bonding
• Bonding Gap [mm]: 0.85
• Thickness [mm]: 3.1
• Hardness [H]: 9

Synchronisation Rate

• Horizontal Frequency [kHz]: 31.5 - 135
• Vertical Frequency [Hz]: 24 - 70

Connectivity

• HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.3); Audio Input; CEC
• HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.3); Audio Input; CEC
• HDMI IN 3: ARC; Video Input; UHD (60 Hz) HDCP (2.3); Audio Input; CEC
• HDMI OUT: Internal SoC content: FHD (60 Hz) HDCP (2.3); UHD (60 Hz); Video Output; Audio Output; Loop Through: HDMI IN 1/2/3, OPS, Android SoC
• USB-A 1: USB (3.0); Peripherals; USB Storage; Auto Switch (Android SoC, OPS, PC)
• USB-A 2: USB (3.0); Peripherals; USB Storage
• USB-A 3: USB (3.0); Peripherals; USB Storage; Auto Switch (Android SoC, OPS, PC)
• USB-A (Service): Wireless Adapter; USB 2.0; Service
• USB-C 1: Touch Signal; Video Input; UHD (60 Hz); DP alt. 1.4; HDCP (2.3); Audio Input; USB 2.0 / 3.0; 65 W
• USB-C 2: USB 3.0; 7.5 W; Peripherals; Auto Switch (Android SoC, OPS, PC)
• USB-B 1: Touch Signal; USB (3.0)
• Audio Output (3.5 mm): Audio Output; Line Out
• LAN 1: 100 MBit/s
• RS-232C: 9600 bps
• Remote In (3.5 mm): Eco Sensor (IR-Extender, Ambient and Presence)
• Input Detect: First

Sensors

• Ambient Light Sensor: Integrated, triggered actions programmable
• Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

• Power Supply: 100-240V AC, 50/60 Hz
• Power Consumption: 110W shipping
• Power Savings Mode: < 0.5; < 2 (Networked Standby)
• Power Management: VESA DPMS

Environmental

• Operating Temperature: +5ºC to +35ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -20ºC to 60ºC
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: Without stand: 994 x 582 x 73
• Weight [kg]: 21
• VESA Mounting [mm]: 400 x 400 (FDMI); 4 holes; M6
• Bezel Width [mm]: 15
• Packaging Dimensions (W x H x D) [mm]: 1,140 x 740 x 185
• Packaging Weight [kg]: 29
• Material: Aluminum alloy (front side); metal (back side)

Available Options

• Accessories: Eco Sensor (PNKTES1); Soundbar (PN-ZCMS1)

Embedded Computing

• System Version: Android 14
• CPU: Arm Cortex A53x4 2 GHz (octo-core); Arm Cortex A73x4 2.3 GHz
• System Memory: 4G RAM
• Internal Storage: 32GB ROM
• Android Features: App side loading (Google CTS compliant); Application lock; Hide Android SoC; Hide side bar; Portrait support (apps and OSD)
• Built-in Applications: File Manager; Input Select; Office and PDF Viewer - Office Suite; Setting; Web Browser; Whiteboard; Wireless Screen Sharing - E-Share
• Built-in Tools: Annotation overlay mode

Other Features

• Safety and Ergonomics: CE; EMC Class B; RoHS; UKCA
• Pixel Failure Class: ISO 9241-307, Class 1
• Energy Efficiency: ECOMode; LED backlight
• Ecological Standards: EnergyStar 8.0
• Special Characteristics: CEC Support; HDMI ARC; NaViSet Administrator 2 - free download; OSD rotation for portrait mode; Powered USB Port (65 W); Scheduler
• Audio: Integrated Speakers (10 W + 10 W)
• Shipping Content (Accessories): 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual; USB cable; Wireless Adapter
• Operating Hours: 18/7
• External Control: HDMI CEC; Scheduled Timer
• Remote Management: NaViSet Administrator 2
• Security: Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports; IEEE802.1X (Wi-Fi)

Downloads

• Product brochure

SHARP Commercial Display with 550nits Brightness and High Haze. Landscape or Portrait use. USB-C, HDMI and DP inputs, with SDM-S/L and RPi CM4/5 expansion slots. SpectraView Engine and Video & LAN daisychain. Full commercial feature set. 24/7 use.

Features

• Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment.
• Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.

Specifications

General Information

• Panel Technology: IPS with Direct LED backlights
• Active Screen Area (W × H): 1,895.0 × 1,066.0 mm
• Screen Size: 86 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.4935 mm
• Brightness: 550 cd/m²
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178° / 178° (typ. at CR 10:1)
• Colour Depth: 1.073 bn (10‑bit)
• Colour Gamut: 72% of NTSC
• Response Time: 8 ms
• Panel Refresh Rate: 60 Hz
• Haze Level: 25%
• Supported Orientation: Face Up; Landscape; Portrait

Resolution

• Native Resolution: 3840 × 2160
• Supported Resolutions: 640 × 480; 720 × 400; 720 × 480; 1024 × 768; 1280 × 720; 1280 × 800; 1280 × 1024; 1360 × 768; 1366 × 768; 1400 × 1050; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1920 × 2160; 3840 × 2160; 4096 × 2160

Synchronisation Rate

• Horizontal Frequency: 15–135 kHz
• Vertical Frequency: 23–76 Hz

Connectivity

• HDMI IN 1: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; ARC; CEC
• HDMI IN 2: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; CEC
• HDMI OUT: Video Output; UHD (60 Hz) HDCP 2.2; Audio Output; Loop Through: HDMI IN 2, Option, Compute module
• DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Input
• DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Output; Loop Through: DisplayPort IN, USB‑C 2
• USB‑A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
• USB‑A (Service): 2.5 W; Service
• USB‑C 1: Video Input; UHD (60 Hz); DP Alt 1.2; HDCP 2.2; Audio Input; USB 2.0 / 3.2; 65 W
• USB‑C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
• Audio Output (3.5 mm): Line Out
• LAN 1: 100 MBit/s
• LAN 2: Loop Through: LAN 1, RS‑232C, IR; 100 MBit/s
• RS‑232C: 9600 bps
• Remote In (3.5 mm): Eco Sensor (IR‑Extender, Ambient and Presence)

Calibration

• Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
• Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
• Calibration Software: Display Wall Calibrator

Open Modular Intelligence

• Compute Module Slot: RPi4 Compute Module
• Intel® SDM: Accepts Intel® Smart Display Modules Large and Small up to 66 W

Sensors

• Ambient Light Sensor: Integrated, triggered actions programmable
• Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
• Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

• Power Consumption: 190 W (shipping)
• Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
• Power Management: VESA DPMS
• Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80%
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W × H × D): 1,927.6 × 1,099.1 × 83.2 mm
• Weight: 47 kg
• Bezel Width: 14.3 mm (left, right, top); 14.8 mm (bottom)
• VESA Mounting: 600 × 400 mm; 4 × M8
• Packaging Dimensions (W × H × D): 2,090 × 1,225 × 225 mm
• Packaging Weight: 64 kg
• Ingress Protection: IP5x (front); IP2x (back)
• Material: Metal

Available Options

• Accessories: Eco Sensor (PNKTES1); Soundbar (PN‑ZCMS1)

Other Features

• Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C‑UL or CSA
• Pixel Failure Class: ISO 9241‑307, Class 1
• Resistance to Fire: Metal backcover; plastic material certified acc. to UL94‑5VB
• Energy Efficiency: 103 kWh/1000 h; Class G; LED backlight
• Ecological Standards: EnergyStar 8.0
• 3rd Party Certifications: Certified for Crestron CCV2 and XiO Cloud
• Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
• Colour Versions: Black Front Bezel, Black Back Cabinet
• Audio: Integrated Speakers (10 W + 10 W)
• Shipping Content: 2× AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Operating Hours: 24/7
• External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
• Remote Management: NaViSet Administrator 2
• Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

• Product brochure

SHARP Commercial Display with 550nits Brightness and High Haze. Landscape or Portrait use. USB-C, HDMI and DP inputs, with SDM-S/L and RPi CM4/5 expansion slots. SpectraView Engine and Video & LAN daisychain. Full commercial feature set. 24/7 use.

Features

• Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment.
• Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.

Specifications

General Information

• Panel Technology: IPS with Direct LED backlights
• Active Screen Area (W × H): 1,649.7 × 927.9 mm
• Screen Size: 75 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.430 mm
• Brightness: 550 cd/m²
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178° / 178° (typ. at CR 10:1)
• Colour Depth: 1.073 bn (10‑bit)
• Colour Gamut: 72% of NTSC
• Response Time: 8 ms
• Panel Refresh Rate: 60 Hz
• Haze Level: 25%
• Supported Orientation: Face Up; Landscape; Portrait

Resolution

• Native Resolution: 3840 × 2160
• Supported Resolutions: 640 × 480; 720 × 400; 720 × 480; 1024 × 768; 1280 × 720; 1280 × 800; 1280 × 1024; 1360 × 768; 1366 × 768; 1400 × 1050; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1920 × 2160; 3840 × 2160; 4096 × 2160

Synchronisation Rate

• Horizontal Frequency: 15–135 kHz
• Vertical Frequency: 23–76 Hz

Connectivity

• HDMI IN 1: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; ARC; CEC
• HDMI IN 2: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; CEC
• HDMI OUT: Video Output; UHD (60 Hz) HDCP 2.2; Audio Output; Loop Through: HDMI IN 2, Option, Compute module
• DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Input
• DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Output; Loop Through: DisplayPort IN, USB‑C 2
• USB‑A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
• USB‑A (Service): 2.5 W; Service
• USB‑C 1: Video Input; UHD (60 Hz); DP Alt 1.2; HDCP 2.2; Audio Input; USB 2.0 / 3.2; 65 W
• USB‑C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
• Audio Output (3.5 mm): Line Out
• LAN 1: 100 MBit/s
• LAN 2: Loop Through: LAN 1, RS‑232C, IR; 100 MBit/s
• RS‑232C: 9600 bps
• Remote In (3.5 mm): Eco Sensor (IR‑Extender, Ambient and Presence)

Calibration

• Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
• Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
• Calibration Software: Display Wall Calibrator

Open Modular Intelligence

• Compute Module Slot: RPi4 Compute Module
• Intel® SDM: Accepts Intel® Smart Display Modules Large and Small up to 66 W

Sensors

• Ambient Light Sensor: Integrated, triggered actions programmable
• Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
• Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

• Power Consumption: 140 W (shipping)
• Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
• Power Management: VESA DPMS
• Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80%
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W × H × D): 1,682.3 × 961.1 × 83.2 mm
• Weight: 38 kg
• Bezel Width: 14.3 mm (left, right, top); 14.8 mm (bottom)
• VESA Mounting: 600 × 400 mm; 4 × M8
• Packaging Dimensions (W × H × D): 1,830 × 1,070 × 225 mm
• Packaging Weight: 51 kg
• Ingress Protection: IP5x (front); IP2x (back)
• Material: Metal

Available Options

• Accessories: Eco Sensor (PNKTES1); Soundbar (PN‑ZCMS1)

Other Features

• Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C‑UL or CSA
• Pixel Failure Class: ISO 9241‑307, Class 1
• Resistance to Fire: Metal backcover; plastic material certified acc. to UL94‑5VB
• Energy Efficiency: 103 kWh/1000 h; Class G; LED backlight
• Ecological Standards: EnergyStar 8.0
• 3rd Party Certifications: Certified for Crestron CCV2 and XiO Cloud
• Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
• Colour Versions: Black Front Bezel, Black Back Cabinet
• Audio: Integrated Speakers (10 W + 10 W)
• Shipping Content: 2× AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Operating Hours: 24/7
• External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
• Remote Management: NaViSet Administrator 2
• Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

• Product brochure

SHARP Commercial Display with 550nits Brightness and High Haze. Landscape or Portrait use. USB-C, HDMI and DP inputs, with SDM-S/L and RPi CM4/5 expansion slots. SpectraView Engine and Video & LAN daisychain. Full commercial feature set. 24/7 use.

Features

• Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment.
• Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.

Specifications

General Information

• Panel Technology: IPS with Direct LED backlights
• Active Screen Area (W × H): 1,428.48 × 803.52 mm
• Screen Size: 65 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.372 mm
• Brightness: 550 cd/m²
• Contrast Ratio: 8000:1
• Viewing Angle (H/V): 178° / 178° (typ. at CR 10:1)
• Colour Depth: 1.073 bn (10‑bit)
• Colour Gamut: 72% of NTSC
• Response Time: 8 ms
• Panel Refresh Rate: 60 Hz
• Haze Level: 25%
• Supported Orientation: Face Up; Landscape; Portrait

Resolution

• Native Resolution: 3840 × 2160
• Supported Resolutions: 640 × 480; 720 × 400; 720 × 480; 1024 × 768; 1280 × 720; 1280 × 800; 1280 × 1024; 1360 × 768; 1366 × 768; 1400 × 1050; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1920 × 2160; 3840 × 2160; 4096 × 2160

Synchronisation Rate

• Horizontal Frequency: 15–135 kHz
• Vertical Frequency: 23–76 Hz

Connectivity

• HDMI IN 1: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; ARC; CEC
• HDMI IN 2: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; CEC
• HDMI OUT: Video Output; UHD (60 Hz) HDCP 2.2; Audio Output; Loop Through: HDMI IN 2, Option, Compute module
• DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Input
• DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Output; Loop Through: DisplayPort IN, USB‑C 2
• USB‑A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
• USB‑A (Service): 2.5 W; Service
• USB‑C 1: Video Input; UHD (60 Hz); DP Alt 1.2; HDCP 2.2; Audio Input; USB 2.0 / 3.2; 65 W
• USB‑C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
• Audio Output (3.5 mm): Line Out
• LAN 1: 100 MBit/s
• LAN 2: Loop Through: LAN 1, RS‑232C, IR; 100 MBit/s
• RS‑232C: 9600 bps
• Remote In (3.5 mm): Eco Sensor (IR‑Extender, Ambient and Presence)

Calibration

• Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
• Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
• Calibration Software: Display Wall Calibrator

Open Modular Intelligence

• Compute Module Slot: RPi4 Compute Module
• Intel® SDM: Accepts Intel® Smart Display Modules Large and Small up to 66 W

Sensors

• Ambient Light Sensor: Integrated, triggered actions programmable
• Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
• Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

• Power Consumption: 135 W (shipping)
• Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
• Power Management: VESA DPMS
• Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80%
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W × H × D): 1,454.5 × 832.4 × 59.5 mm
• Weight: 26 kg
• VESA Mounting: 400 × 400 mm (FDMI); 4 holes; M6
• Bezel Width: 11 mm (left, right, top); 13.9 mm (bottom)
• Ingress Protection: IP5x (front); IP2x (back)
• Packaging Dimensions (W × H × D): 1,620 × 950 × 185 mm
• Packaging Weight: 35 kg
• Material: Metal

Available Options

• Accessories: Eco Sensor (PNKTES1); Soundbar (PN‑ZCMS1)

Other Features

• Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C‑UL or CSA
• Pixel Failure Class: ISO 9241‑307, Class 1
• Resistance to Fire: Metal backcover; plastic material certified acc. to UL94‑5VB
• Energy Efficiency: 103 kWh/1000 h; Class G; LED backlight
• Ecological Standards: EnergyStar 8.0
• 3rd Party Certifications: Certified for Crestron CCV2 and XiO Cloud
• Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
• Colour Versions: Black Front Bezel, Black Back Cabinet
• Audio: Integrated Speakers (10 W + 10 W)
• Shipping Content: 2× AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Operating Hours: 24/7
• External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
• Remote Management: NaViSet Administrator 2
• Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

• Product brochure

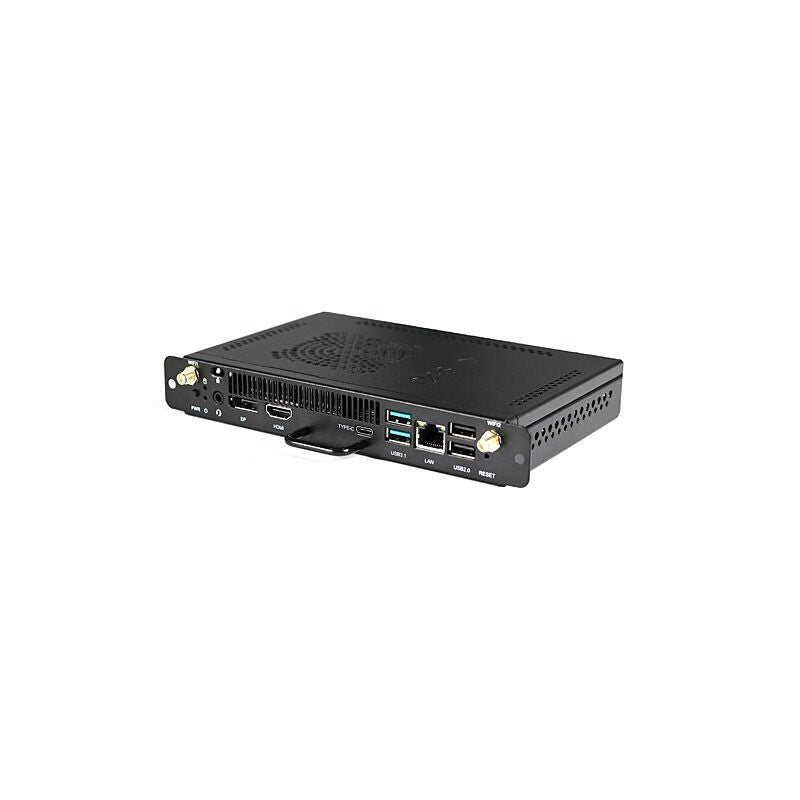

DAHUA i5 12th processor, 8GB + 256GB, Win 11 Pro activated

Features

• Intel® Alder Lake-H i5-12450H, 4.40GHz
• Intel® UHD Graphics for 12th Gen Intel® Processors
• 1 × 8GB DDR4 3200MHz
• 1 × 256GB 2280 SSD, Nvme/SATA
• 1 × 2230 PCIE/USB2.0, WIFI/BT Module
• 1 × HDMI 1.4, 1 × DP1.2, 2 × USB3.1, 2 × USB2.0, 1 × RJ45 10/100/1000M, 1 × USB3.1 Type-C

Specifications

Function

• Processor: Intel® Alder Lake-H i5-12450H, 4.40 GHz
• Chip: SOC
• BIOS: AMI UEFI BIOS
• Integrated Graphics Card: Intel® UHD Graphics for 12th Gen Intel® Processors
• Sound Card: Realtek ALC897
• Memory: 8 GB
• Disk: 256 GB
• Wireless: 1 × 2230 CNVI AX101, Wi-Fi/BT Module
• Button: Front, 1 × power button, 1 × resetting button (recessed socket)
• Operating System: Supports Windows 11 Pro or without any operating system

CPU Details

• Number of Cores: 8
• Number of Threads: 12
• Level 3 Cache: 12 MB

Device Ports

• Power: 1 × DC IN
• Network Port: 1 × RJ-45 (10/100/1000 Mbps)
• USB: 2 × USB 3.1, 2 × USB 2.0
• Type-C Port: 1 × USB 3.1 Type-C
• DP: 1 × DP1.2 out, Max. 4K/60 Hz
• HDMI: 1 × HDMI 1.4 out, Max. 4K/30 Hz
• Audio Port: 1 × Line-out and MIC-In, 2-in-1 connector
• Extension Interface: 1 × 80 pin JAE port

Power

• Operating Voltage: 12–19 VDC
• Standby Power Consumption: 0.8 W
• Power Consumption: Typ: 53 W; Max: 58.8 W

Environment

• Operating Temperature: –5 °C to +45 °C (+23 °F to +113 °F)
• Operating Humidity: 10%–90%, non-condensing
• Storage Temperature: –20 °C to +70 °C (–4 °F to +158 °F)
• Storage Humidity: 10%–90%, non-condensing

Structure

• Casing Material: SGCC
• Product Dimensions: 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
• Packaging Dimensions: 254 mm × 196 mm × 77 mm (10.00" × 7.72" × 3.03")
• Net Weight: 0.75 kg (1.65 lb)
• Gross Weight: 0.95 kg (2.09 lb)
• Casing Color: Black

Accessory

• 2 × antennas
• 2 × M3 screws
• 1 × desiccant
• 1 × user's manual

Certifications

• Certifications: CE, Energy Star

Downloads

• Product brochure

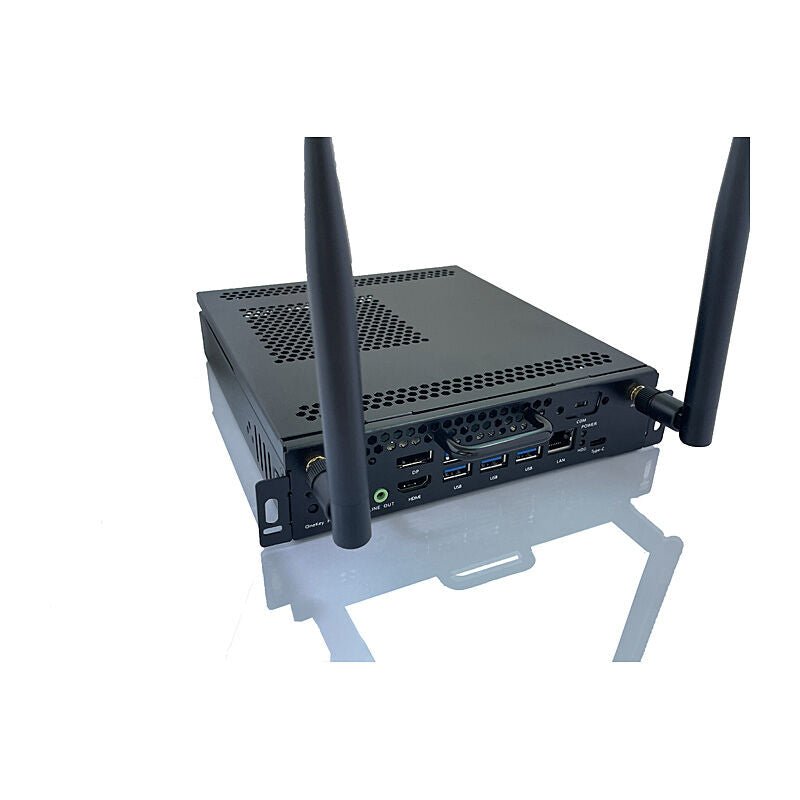

IQBOARD OPS Module i5

Unlicenced Windows 11 Pro pre-loaded (licence fees apply to reseller or end user)

Features

• CPU: Intel® Core™ i5 10200H, Processor base frequency 2.4 GHz, 4 cores 8 threads, 8M cache
• RAM: 8 GB
• Storage: 512G SSD
• Graphics Card: Intel® Core™ 630

Specifications

Output

• DP/HDMI dual display
• 1 × DP (Maximum supported resolution: 4096 × 2160 @ 60 Hz)
• 1 × HDMI (Maximum supported resolution: 4096 × 2160)

Network

• Network Card: 1 × RJ45 LAN, 1 × RTL8111 H 10/100/1000M
• WIFI: 1 × WIFI, support 802.11ac/a/b/g/n; BT4.2

I/O

• USB 3.0: 6 × USB 3.0 + 1 × Type C
• Power button: 1 × power button
• OPS: 1 × OPS (80 pin)
• Audio: 1 × LINE-OUT & MIC-IN
• LED Light: 1 × Power light & 1 × Harddisk light

Power Supply

• Input: 19 V / 4.74 A

Dimension

• Dimension: 180 mm (L) × 195 mm (W) × 42 mm (H)

Environment

• Temperature: Operating temperature: 0°C ∼ 50°C; Storage temperature: -20°C ∼ 70°C
• Humidity: 5%∼90% No condensation

Downloads

• Product brochure

MAXHUB XBar V50 Dual-eyes 4K Microsoft Teams Rooms MDEP Videobar Android system 8GB RAM 64GB ROM / Dual-eyes 100MP 4K Camera HFOV 125? / AP30 x1

MAXHUB XBar W70 Qua-eyes 4K Microsoft Teams Rooms Windows Videobar 12thGen Intel 10-core i5 processor 16GB RAM 256GB ROM / Quad-eyes 200MP 4K Camera HFOV 125?+ Dual tele cam / TCP31T x 1

MAXHUB XBar V70 Qua-eyes 4K Microsoft Teams Rooms MDEP Videobar Android system 8GB RAM 64GB ROM / Quad-eyes 200MP 4K Camera HFOV 125?+ Dual tele cam / AP30 x 1

MAXHUB B Series B8620 Smart Blackboard Screen size: 86'' 4K Res, 98% sRGB, Android 13 system, 8GB RAM, 128GB ROM, 50M camera, 4-mic array, IR Touch, 20 touch points, 2x12+2?25W speaker, camera, 50MP dual lens, 12 microphone array, 2*10W speaker

Logitech R500s Presenter Graphite

Features/Specifications:
Connection: 2.4GHz Wireless via USB Receiver or Bluetooth
Wirless Range: Up to 20 Metres
Laser Class: 1
Laser Wave Length: 640 ~ 660nm (Red Light)
Battery: 1 x AAA
Battery Life: Up to 12 months
Dimensions: 123.6 x 36.6 x 24.7mm
Compatibility: USB-A Port or Bluetooth Enabled Device Required - Windows 10 or Later / macOS X 10.12 or later / ChromeOS / Linux 2.6+
Weight: 48.4g
Warranty: 1 Year Limited

Present Effortlessly with the easy to use button layout
Optimized to work with Windows, macOS and leading presentation software
In-Built Red Laser Pointer
Up to 20 Metres of wireless range
Simple, reliable, and hassle-free design
Downloadable Logitech Presentation App - Customize button functions, monitor battery life, and set an on-screen timer
Designed to fit snugly into your palm
Soft rubber surface and textured buttons allow for a confident grip
Easy to setup
What's in the box?
1 x Logitech R500s Laser Presentation Remote with In-built Laser Pointer
1 x Wireless Mini USB Receiver
1 x AAA Battery
1 x User Manual

Ultra Advanced IR Technology, narrow bezel design, AI powered triple 50M camera with auto framing and speaker tracking, Anti-glare glass,16 mic array, Stereo speakers, Intelligent touchscreen technology, Palm rejection. OS Purchased seperately

Features/Specifications:
Display Type: 4K Ultra HD Flat Panel UHD Display
Screen Size: 86 inches diagonal
Resolution: 4K Ultra HD resolution for exceptional clarity
Technology: Cutting-edge technology for vibrant colors and detailed visuals
Interactive Capabilities: Intuitive touch interface for interactive use
Versatility: Supports both portrait and landscape orientations
Connectivity: Comprehensive connectivity options for seamless integration
Application: Ideal for classrooms, boardrooms, and digital signage
Design: Sleek design that integrates well into various environments
Usability: Designed for reliability and ease of use

Ultra Advanced IR Technology, narrow bezel design, AI powered triple 50M camera with auto framing and speaker tracking, Anti-glare glass,16 mic array, Stereo speakers, Intelligent touchscreen technology, Palm rejection. OS Purchased seperately

Features/Specifications:
Display Type: 4K Ultra HD Flat Panel UHD Display
Screen Size: 75 inches diagonal
Resolution: 4K Ultra HD resolution for exceptional clarity
Technology: Cutting-edge technology for vibrant colors and detailed visuals
Interactive Capabilities: Intuitive touch interface for interactive use
Versatility: Supports both portrait and landscape orientations
Connectivity: Comprehensive connectivity options for seamless integration
Application: Ideal for classrooms, boardrooms, and digital signage
Design: Sleek design that integrates well into various environments
Usability: Designed for reliability and ease of use

Ultra Advanced IR Technology, narrow bezel design, AI powered triple 50M camera with auto framing and speaker tracking, Anti-glare glass,16 mic array, Stereo speakers, Intelligent touchscreen technology, Palm rejection. OS Purchased seperately

Features/Specifications:
Display Type: 4K Ultra HD Flat Panel UHD Display
Screen Size: 65 inches diagonal
Resolution: 4K Ultra HD resolution for exceptional clarity
Technology: Cutting-edge technology for vibrant colors and detailed visuals
Interactive Capabilities: Intuitive touch interface for interactive use
Versatility: Supports both portrait and landscape orientations
Connectivity: Comprehensive connectivity options for seamless integration
Application: Ideal for classrooms, boardrooms, and digital signage
Design: Sleek design that integrates well into various environments
Usability: Designed for reliability and ease of use

Ultra Advanced IR Technology, narrow bezel design, AI powered triple 50M camera with auto framing and speaker tracking, Anti-glare glass,16 mic array, Stereo speakers, Intelligent touchscreen technology, Palm rejection. OS Purchased seperately

Features/Specifications:
Display Type: 4K Ultra HD Flat Panel UHD Display
Screen Size: 55 inches diagonal
Resolution: 4K Ultra HD resolution for exceptional clarity
Technology: Cutting-edge technology for vibrant colors and detailed visuals
Interactive Capabilities: Intuitive touch interface for interactive use
Versatility: Supports both portrait and landscape orientations
Connectivity: Comprehensive connectivity options for seamless integration
Application: Ideal for classrooms, boardrooms, and digital signage
Design: Sleek design that integrates well into various environments
Usability: Designed for reliability and ease of use

MAXHUB Xboard V7 MTR 75''

MAXHUB Xboard V7 MTR 55''

MAXHUB Wall speaker (pair)

MAXHUB U series U8640 86''

MAXHUB U series U7540 75''

MAXHUB U series U6540 65''

MAXHUB All in one video conference terminal, camera, 50MP dual lens, 12 microphone array, 2*10W speaker, NT98692, RK3562

MAXHUB UC BM45 Microsoft Teams Rooms Speakerphone

Features/Specifications:
Plug-and-play
Built-in 8 microphone array and an advanced full-range loud-speakers
AI Noise Suppression
Full duplex
Automatic Echo Cancellation
Automatic Gain Control
An equal sound
Fit for any Spaces

Audio
Microphone Quantity: 8
Voice Pick-up Range: Best 4m (13.1 ft) ,maxium 8m (26.2 ft)
Microphone Frequency Range: 100-10kHz
Speaker Output Power (Maxium): 5W
Sound Pressure Level: 82db@1m
Speaker Bandwidth: 100Hz~20kHz
AI Noise Suppression: Yes
Full Duplex: Yes
Auto Gain Control (AGC): Yes
Auto Echo Cancellation (AEC): Yes
Connectivity
USB-C: 1
RJ45 (POE in): Quantity : 1
to connec to a POE switch
to connect the previous UC BM45 in a cascading mode
to connect MAXHUB V7 XBoard (Mic in)
RJ45 (POE out): Quantity : 1
to connect the next UC BM45 in a cascading mode
DC in: 54V / 0.925A

Easy of Use
Hot Key: Mute / Unmute, Volume +, Volume -, Answer, Hand up
LED Indicator: Yes
Physical Information
Product Dimension:
122 mm (Diameter) x 65 mm
4.8 inch (Diameter) x 2.6 inch
Product Weight: 472 g / 1 lbs

MAXHUB Touch Controller, 10.1, 1920(H)?1080(V)?10-point capacitive touch recognition?Compatible with MAXHUB IFP V6 Above?Android 10 operation system.

Features/Specifications:
Touch Screen - 10-point capacitive touch recognition
Power Over Ethernet - A single cable carries both power and data to reduce clutter
Cable Free Paring - Connect to your Maxhub Display/Videobar wirelessly
Sleek Design - Control options are clear and accessible
Compatibility - Compatible with MAXHUB IFP/Commercial Display/VideoBar S10Pro/S15 family
Display
Size: 10.1 inch
Resolution:1920 (H) x 1080 (V)
Refreshing Frequency: 60Hz
NTSC: 55%
Back Light Unit'' ELED
Brightness with glass (typ): 280cd/m2
Life span: 15000 Hours
Operating System
System Version: Android 10.0
RAM: 4G
ROM: 16G
CPU: A53x4
GPU: Mali-G52

MAXHUB Touch Controller Wall Bracket Kit

Maxhub OPS72A-i5 12th Gen i5, 8G+256G

Features/Specifications:
Slot in PC Module for IFP
Compatible with Classic, Vogue ; Transcend
8th Generation Intel Core i7
DDR4 16GB RAM
M.2 256GB SSD
3x USB 3.0 / 1x HDMI Out / Gigabit LAN
Windows 10
