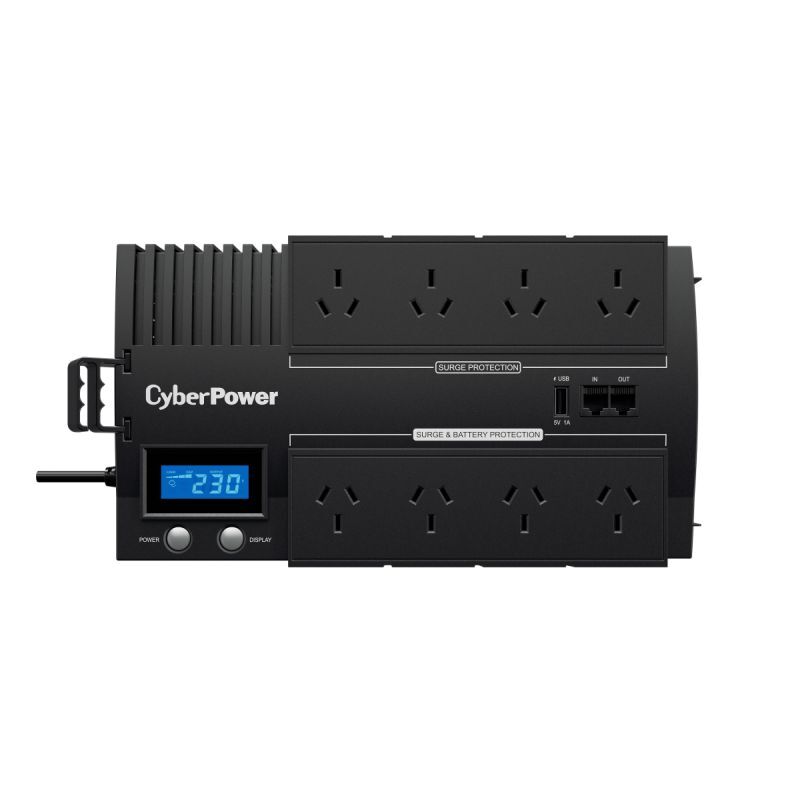

CyberPower BR700ELCD offers home and office users a reliable battery backup and safeguards office PCs, network comms equipment, and other electronic devices from surges, spikes, and brownouts. Designed with GreenPower UPS Technology
Features/Specifications:
Phase: Single Phase
Form Factor: Desktop
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 170 - 290
Input Frequency ( Hz ): 50 ± 5 | 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 3.18
Power Cord Length (ft.): 5
Power Cord Length (m.): 1.5
Output Capacity (Watts): 420
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) - Total: 8
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 4
Typical Transfer Time ( ms ): 4
USB Charging Port(s): USB-A x 1
USB Charging Current: 5 V/ 1 A
Runtime at Half Load ( min ): 9
Runtime at Full Load ( min ): 1.5
Typical Recharge Time ( Hours ): 8
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0083
RBP Quantity ( pcs ): 1
Surge Suppression ( Joules ): 125
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
LCD Panel: Yes
LCD Information Display: Power Status, Battery Status, Load Status, Other Information
LCD Setting & Control: Alarm Setting
HID Compliant USB Port(s): 1
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs ): USB Cable x1, Phone Line x1
Power Management Software: PowerPanel Personal (Recommended)
Enclosure Construction: Plastic
Dimensions: 166 x 118 x 288mm
Weight: 5.3kg
Certifications: CE, RCM
Line-interactive UPS Topology
Simulated Sine Wave Output
USB Charging Port(s)
Phone/Fax/Modem/DSL/Network Protection
PowerPanel Management Software
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Surge and Spike Protection
LCD Status Display
Wall Mount Installation
Form Factor: Powerboard
