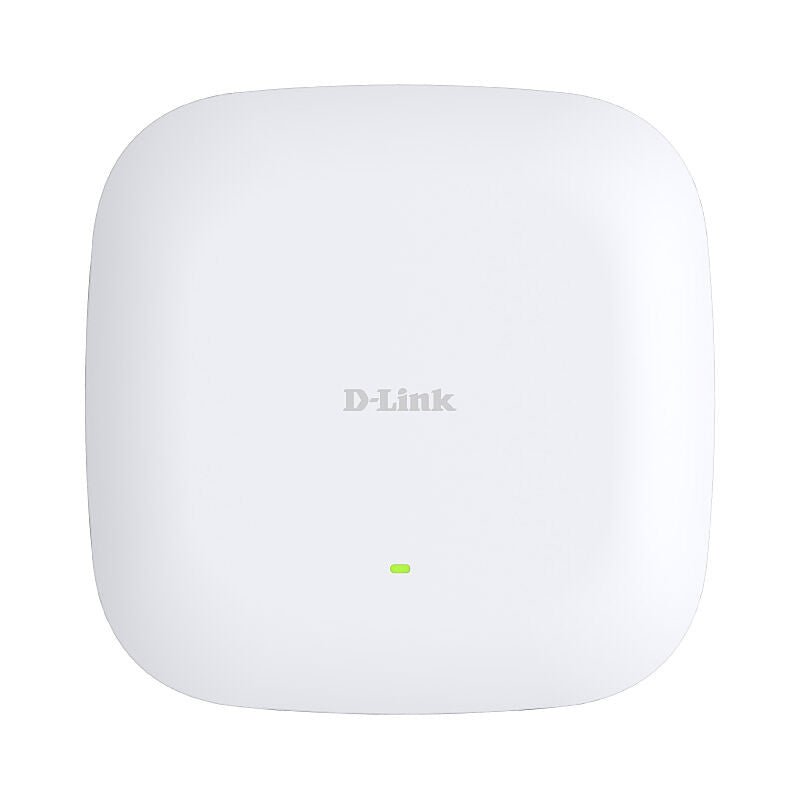

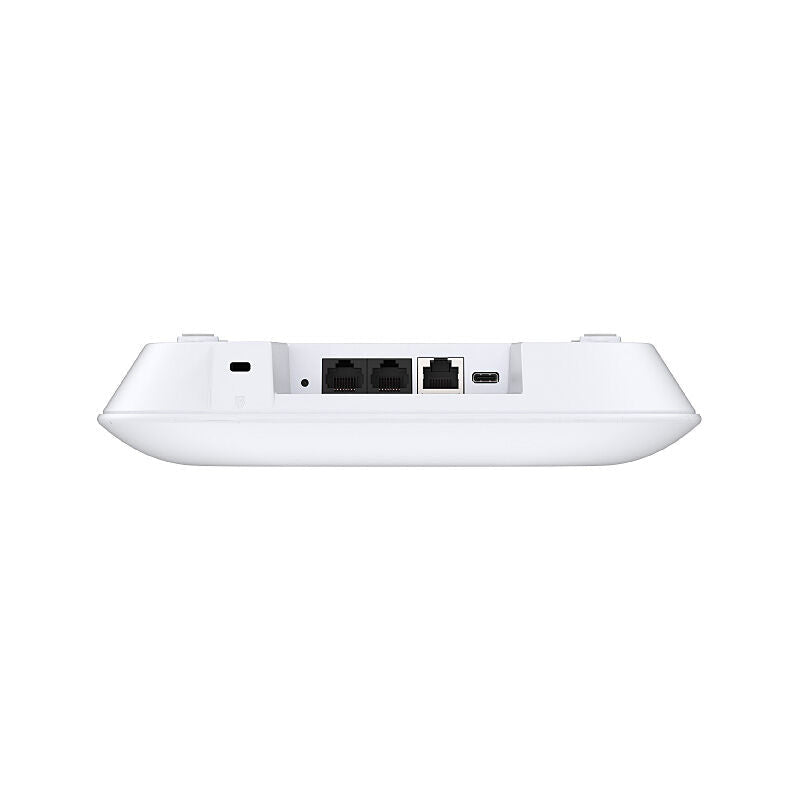

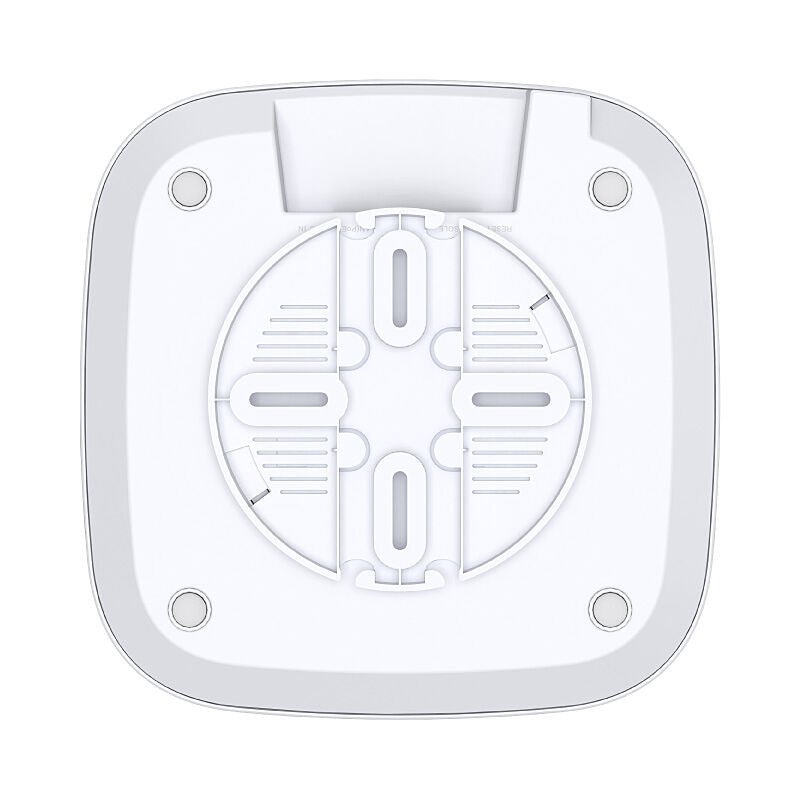

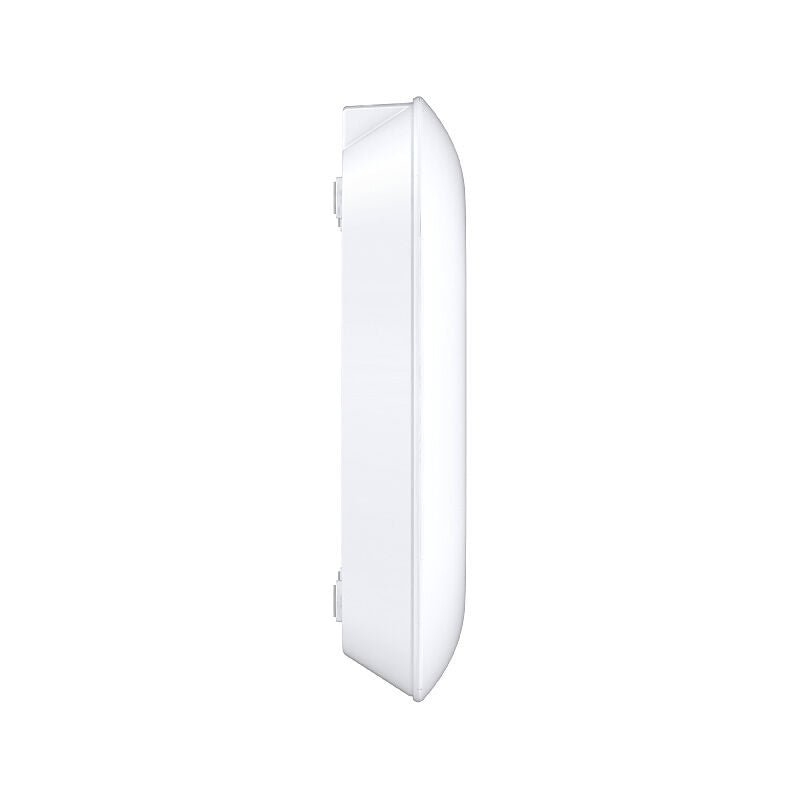

D-Link DAP-E9560 Wi-Fi 7 ceiling-mount access point for business wireless networks, with tri-band BE9500 performance, PoE support, secure WPA3 connectivity and Nuclias management for easier setup and control.

Features

• Wi-Fi 7 BE9500 Tri-band high-speed connectivity
• 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
• Powered by 802.3bt PoE, USB-C adapter
• Max. channel bandwidth support (320MHz)
• 4096-QAM – Up to 20% faster than Wi-Fi 6
• Flexible use of multiple operating modes
• WPA3 encryption for enhanced Wi-Fi security
• Customizable Captive Portal for user access
• Multi-Link Operation boosts connection stability
• Centrally managed via Nuclias Network Controller

Specifications

• Category: Ceiling
• Interfaces: 1 x 10-Gigabit Ethernet PoE LAN port
  1 x 2.5-Gigabit Ethernet LAN port
• Antenna type: 2 x 2.4 GHz internal antennas
  2 x 5 GHz internal antennas
  2 x 6 GHz internal antennas
• Antenna gain: 2.4 GHz: 3.3 dBi
  5 GHz: 4.8 dBi
  6 GHz: 4.6 dBi
• Maximum Output Power: 2.4 GHz: 23 dBm
  5 GHz: 25 dBm
  6 GHz: 24 dBm
• Data Signal Rate: 2.4 GHz: Up to 688 Mbps
  5 GHz: Up to 2882 Mbps
  6 GHz: Up to 5764 Mbps
• IEEE Standard: IEEE 802.11be/ax/ac/n/g/b/a
  IEEE 802.3u/ab/an/bz
  IEEE 802.3bt PoE
• Operating Frequency: 2.4 - 2.483 GHz
  5.15 - 5.35 GHz
  5.47 - 5.85 GHz
  5.925 - 7.125 GHz
• Security Protocol: WPA/WPA2/WPA3™ Personal/Enterprise
  WEP 64/128-bit
  SSID broadcast disable
  Enhanced Open
  MAC address access control
  Internal RADIUS server
• Network Management: Web
  Nuclias Unity
  Nuclias hardware and software controller
  SNMP
• Power Supply: IEEE 802.3bt PoE
  USB Type-C
• Max. Power Consumption: 27.756 W
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C to 65°C (-4°F to 149°F)
• Operating Humidity: 10% to 90%
• Storage Humidity: 5% - 95%
• Dimensions: 223 x 223 x 46.7 mm

Downloads

• Product brochure

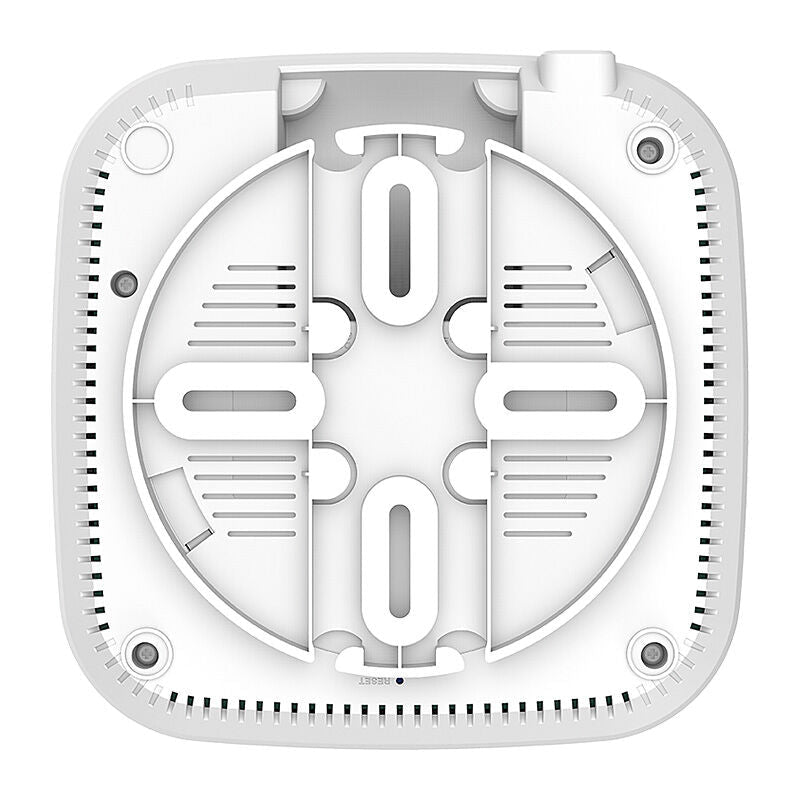

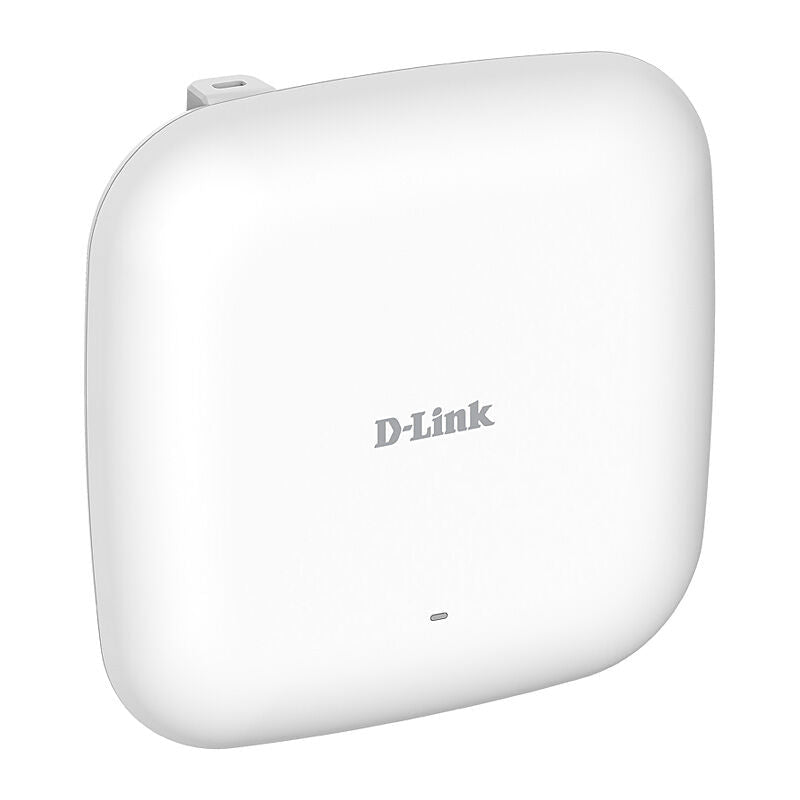

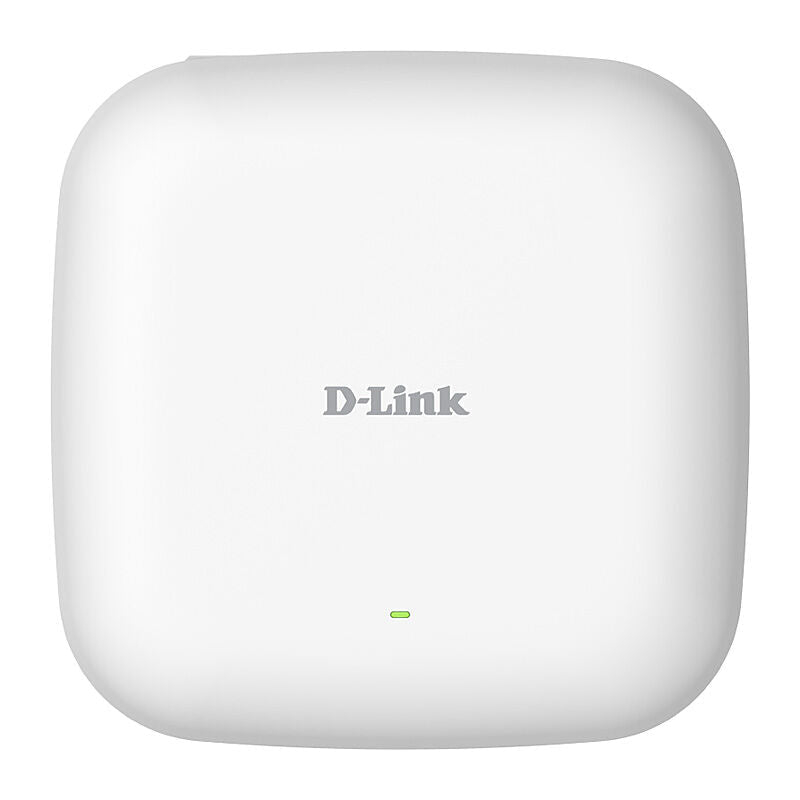

D-Link DBR-X3000-AP AX3000 Wi-Fi 6 smart access point delivers fast business wireless with PoE, mesh support, WPA3 security, guest Wi-Fi and centralised management via Smart Office Series routers.

Features

• AX3000 Wi-Fi 6, up to 3.0 Gbps
• 1 x GE PoE LAN port enables flexible installation
• Wall-mount or ceiling options to suit diverse spaces
• Support dual-band to deliver optimal performance
• Seamless roaming allows devices to keep connected
• Effortlessly expands coverage with mesh technology
• WPA3 enhanced security for wireless networks
• Guest Wi-Fi support to protect the main network
• Central management by DBR series business router
• Made In Taiwan

Specifications

• Wireless Standard: 802.11ax Wi‑Fi 6
• Frequency Band Mode: 2.4G / 5G dual‑band simultaneous
• Wireless Speed:
  2402 Mbps (5GHz)
  574 Mbps (2.4GHz)
• Antenna Gain:
  3 dBi for 5GHz
  4 dBi for 2.4GHz
• MIMO:
  2.4G: 2T2R
  5G: 2T3R
• Interfaces:
  1 × Gigabit Ethernet LAN
• PoE Standard: IEEE 802.3at
• Mounting: Wall / Ceiling
• Support Mode:
  AP Mode
  Extender Mode
• Wi‑Fi Security:
  WPA/WPA2/WPA3 Enterprise
  WPA/WPA2/WPA3 Personal
• Multiple SSID: Up to 7 per device
• Guest Mode: Yes
• Central Management: Managed by DBR‑600‑P / DBR‑700
• Captive Portal: Click‑Through, Local DB (when managed by DBR‑700 / DBR‑600‑P)
• Dimensions: 170 × 170 × 28 mm
• Operating Temperature: 0°C – 40°C (32°F – 104°F)
• Storage Temperature: -10°C – 70°C (14°F – 158°F)
• Operating Humidity: 10% – 90% non‑condensing
• Storage Humidity: 5% – 95% non‑condensing
• Wireless Standard: 802.11ax Wi‑Fi 6
• Indoor/Outdoor: Indoor

Downloads

• Product brochure

Wireless AX1800 Wi-Fi 6 Dual Band PoE Access Point

Features/Specifications:
Management Options: Standalone|Software Managed|Controller Managed
Wi-Fi Bands: Dual Band 2.4 and 5 GHz
AP Design: Indoor|Built-in Antennas|PoE+
Central Management: Nuclias Connect|Nuclias Connect Hub
Wi-Fi Type: Wireless AX1800
Antenna Type: Built-in
Auto Channel Selection: Yes
Dimensions (Size): 170 x 170 x 28 mm
LAN Interface: 1 x Gigabit
Operation Modes: AP|WDS (Site-to-Multisite)|WDS+AP|AP Client
PoE Standard: PoE+ 802.3at
Security: 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|WEP|MAC filtering|WPA3
Number of SSIDs: 16
Warranty: Limited Lifetime
Indoor or Outdoor: Indoor Deployment
Wi-Fi Configuration: Wi-Fi 6|Wireless AX1800|2.4 GHz / 5 GHz Dual Band

Easy to manage with D-Link's free software-based management solution (Nuclias Connect)
The latest Wi-Fi 6 technology
2 x 2 MU-MIMO design with 1800Mbps combined throughput
Supports WPA3 — the latest Wi-Fi encryption standard
Airtime Fairness and Band Steering technologies
High power 26dBm design
Powered by IEEE 802.3at PoE

D-LINK Wireless AX3000 Wi-Fi 6 Dual Band Out Door PoE Access Point

D-LINK Wireless AX3000 Wi-Fi 6 Dual Band PoE Access Point

Features/Specifications: The Wi-Fi 6-enabled DAP-X3060 delivers incredible speeds, significantly increased capacity, and interference-free coverage for business environments of all sizes.

Easy to manage with D-Links free software-based management solution, Nuclias Connect
The latest Wi-Fi 6 technology
MU-MIMO design with 3000Mbps combined throughput
Supports WPA3™ — the latest Wi-Fi encryption standard
2.5 Gbps LAN port
Airtime Fairness and Band Steering technologies
High power 23dBm design
Powered by IEEE 802.3at P

Management Options : Standalone|Software Managed|Controller Managed
Wi-Fi Bands : Dual Band 2.4 and 5 GHz
AP Design : Indoor|Built-in Antennas|PoE+
Central Management : Nuclias Connect|Nuclias Connect Hub
Wi-Fi Type : Wireless AX3000
Antenna Type : Built-in
Auto Channel Selection : Yes
Dimensions (Size) : 190 x 190 x 42.8 mm
LAN Interface : 1 x 2.5Gb
Operation Modes : AP|WDS (Site-to-Multisite)|WDS+AP
PoE Standard : PoE+ 802.3at
Security : 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|WEP|MAC filtering|WPA3
Number of SSIDs : 16
Warranty : Limited Lifetime
Indoor or Outdoor : Indoor Deployment
Wi-Fi Configuration : Wi-Fi 6|2.4 GHz / 5 GHz Dual Band|Wireless AX3000
