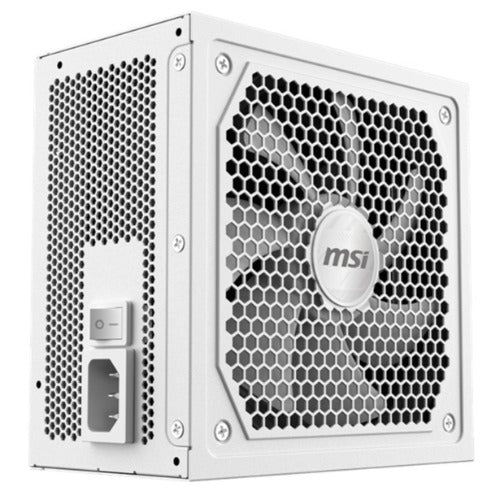

MSI MAG A1000GL PCIE5 ATX Power Supply Uni - White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP

MSI MAG A1000GL PCIE5 ATX Power Supply Uni - White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP

The MAG A1000GL PCIE5 WHITE power supply provides 80 PLUS Gold-certified power efficiency, ATX 3.1 ready, and PCIe 5.1 GPU support, cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance. Outfitted with a half-bridge LLC DC-to-DC topology, an extra-compact ATX frame, and a fully modular design, this PSU is ideal for spatially-efficient PCs requiring robust, no-nonsense performance.

SPECIFICATIONS:

Efficiency Rating

80 PLUS Gold (up to 90%)

Modular

Yes (fully modular)

Fan Size

135 mm

Fan Bearing

Fluid Dynamic Bearing

Dimensions (DxWxH)

150 x 150 x 86 mm

PFC Type

Active PFC

Input Voltage Range

100-240V~

Power Watt

1000W

Power Excursion

2000W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range

50-60Hz

Protection

OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin)

1

EPS (4+4 pin)

2

PCI-E 5.1 (16 pin)

1 (600W)

PCI-E (6+2 pin)

4

SATA (15 pin)

12

PERIPHERAL (4 pin)

4

FDD (4 pin)

1

Warranty: 120 months

Part No.: MAG A1000GL PCIE5 WHITE
