Features/Specifications:
AV Interface: HDMI Interface
Standard: HDMI 2.0
Supported Bandwidth: 18 Gbps
Maximum Distance: 70m - 3840x2160@60Hz 4:4:4 8bit | 100m - 3840x2160@30Hz 4:4:4 8bit | 150m - 1280x720@60Hz
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: Pass-through
Supported Audio: HDMI Audio Pass-through
IR Support: 20KHz - 60KHz
CEC Support: Pass-through
Serial Interface: RS-232 (Bi-directional)
Transmission Protocol: HDBaseT
Transmission Medium: 1 x Cat.6
Chipset: VS010-A0
Special : HDMI Loop Out Port PoC (Power over Cat.6)

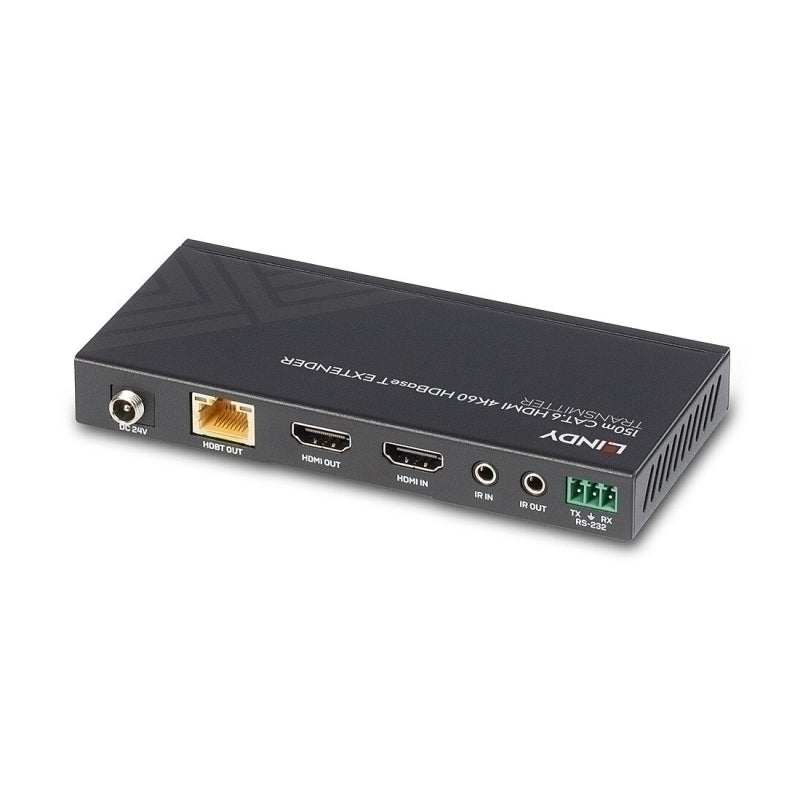

Transmitter Input: HDMI Type A (Female) | IR (Female)
Transmitter Output: HDMI Type A (Female) | RJ-45 (Female) | IR (Female)
Receiver Input: RJ-45 (Female)
Receiver Output: HDMI Type A (Female) | 3.5mm (Female)
Bi-directional Ports: RS-232 (Female)
Power : 5.5/2.1mm
Dimensions: 140 x 65 x 18mm
Weight: 0.472kg Per Unit
Power Requirements: 24VDC 1A
Warranty (Years): 2
Certificated: CE | UKCA | FCC | RoHS | REACH
Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT & Long Reach technology
Supports HDMI 18G resolutions up to 4K 3840x2160@60Hz 4:4:4
RS-232 CEC pass-through and bi-directional IR for simple control
Supports PoC (Power over cable) requiring a power supply connection from only one side of the installation
2 Year Warranty
