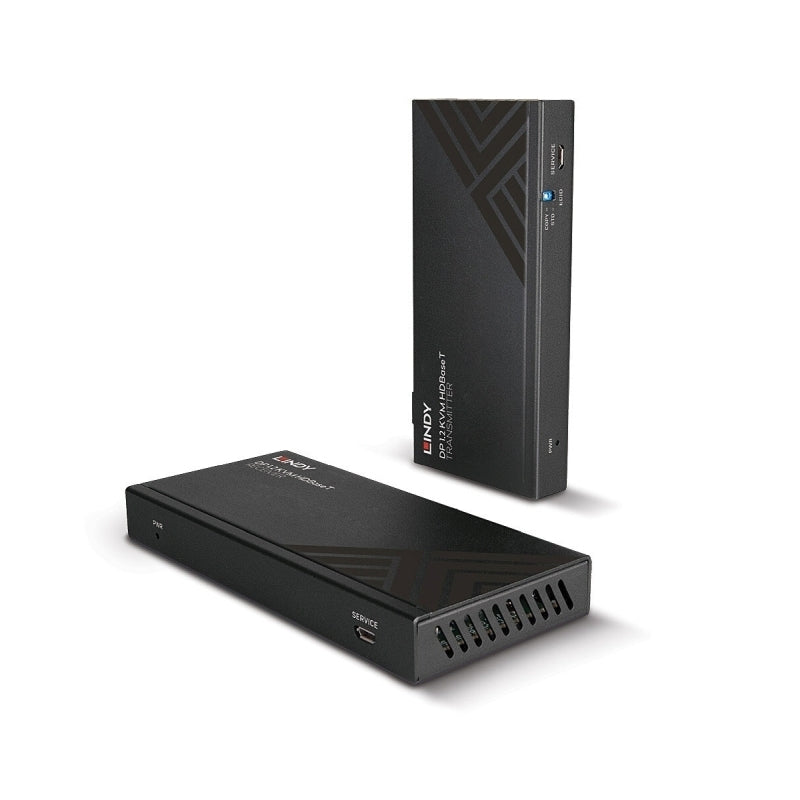

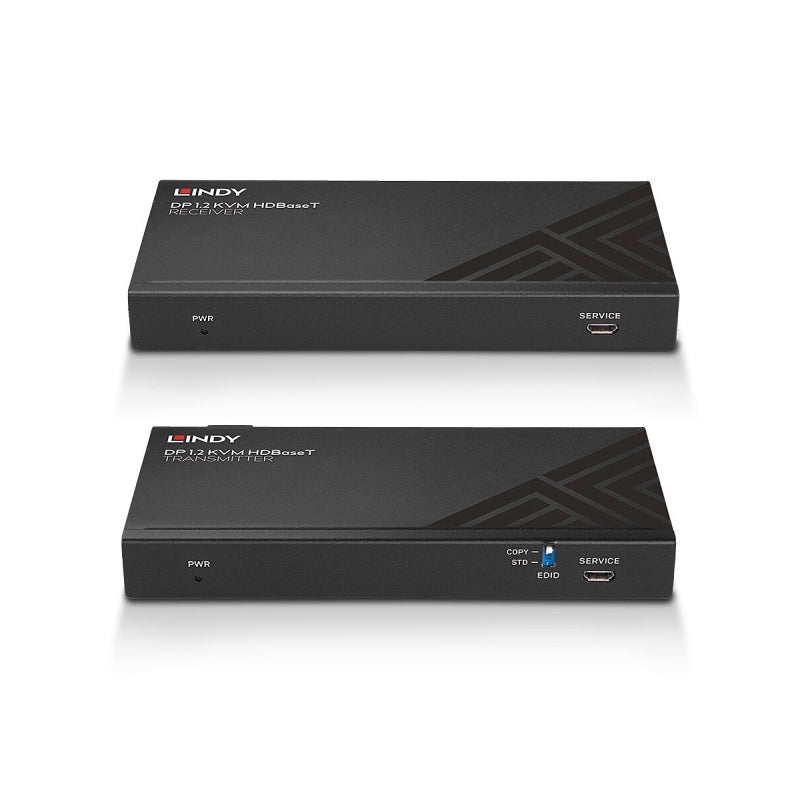

Lindy 150m Cat.6 DisplayPort 1.2 USB IR & RS-232 HDBaseT KVM Extender

$695.00 $695.00
Unit price  per

Guaranteed safe & secure checkout

    Payment methods
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Lindy 150m Cat.6 DisplayPort 1.2 USB IR & RS-232 HDBaseT KVM Extender
local_offer

Specifications:

  • AV Interface: DisplayPort
  • Interface Standard: DisplayPort 1.2, USB 1.1
  • Supported Bandwidth: 21.6Gbps
  • Maximum Distance: 150m
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass-Through: Dip Switch with copy function
  • Supported Audio: Pass-Through
  • Separate Audio Ports: -
  • IR Support: 20 - 60KHz
  • CEC Support: -
  • Serial Interface: RS-232 Pass Through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Chipset: VS010-A0
  • Special Features: Bi-directional IR, RS-232 and PoC

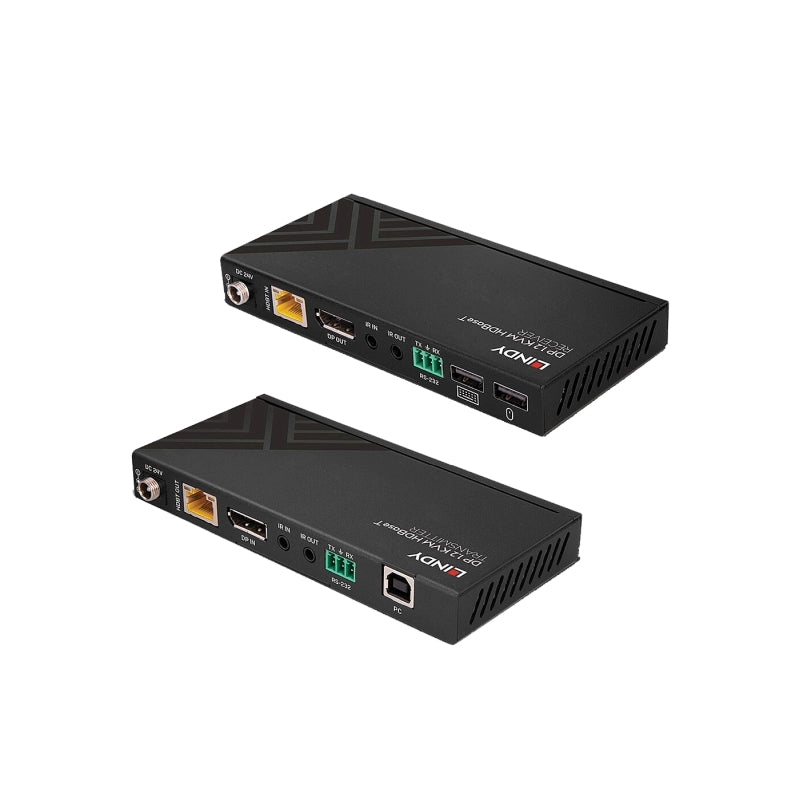

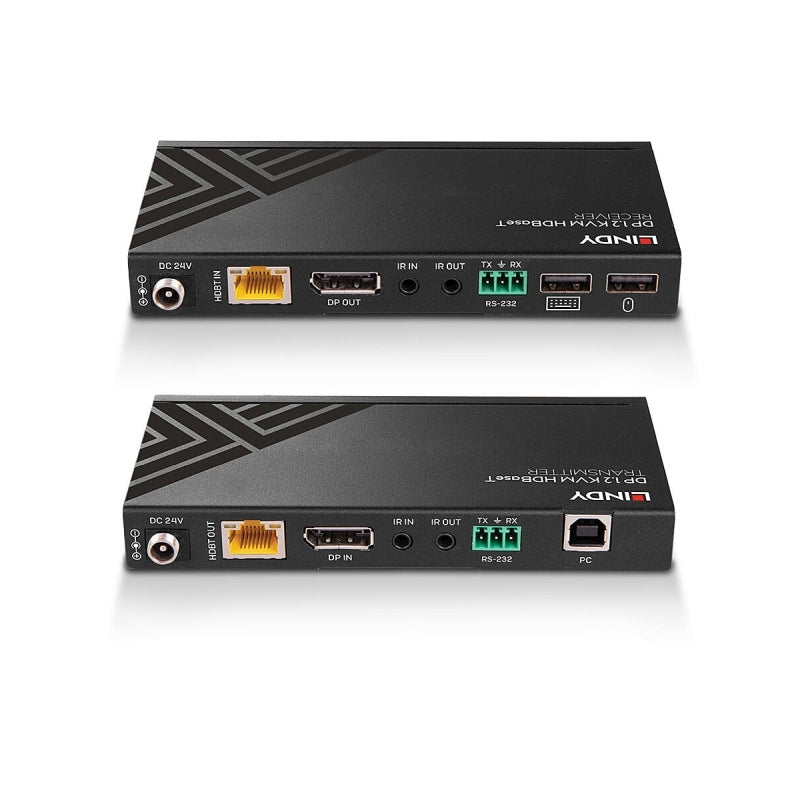

  • Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm
  • Dimensions: 140x65x18mm each unit
  • Housing Material: Metal
  • Net Weight: 0.8kg
  • Operating Temperature: 0C - 40C
  • Storage Temperature: -20C - 60C
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black
  • Packaging Type: Carton Box
  • Packaging Dimensions: 245x75x185mm
  • Gross Weight: 1.02kg
  • Warranty: 2-year
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Features:

  • Extends DisplayPort signals up to 150m distances over Cat.6 network cable via HDBaseT technology
  • Supports resolutions up to 4K@60Hz 4:4:4
  • USB ports for mouse and keyboard connection
  • Bi-directional IR & RS-232 control and PoC (Power over Cable) function
  • 2-year warranty
