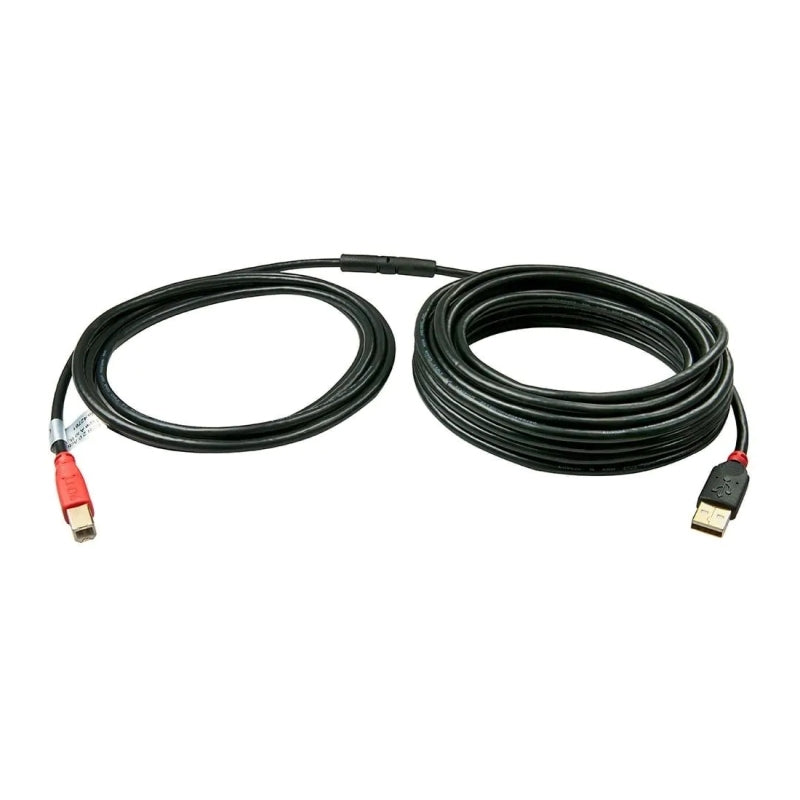

Lindy 10m USB-A 2.0 to USB-B Active Cable

The Lindy USB 2.0 Active Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps.

Features/Specifications:
Connector A: USB Type A Male
Connector B: USB Type B Male
Housing Material: Plastic
Connector Plating: Front: Gold / Back: Nickel
Pin Construction: Brass
Pin Plating: Gold Flash
Dimensions: USB A Male: 14x41x6mm, USB B Male: 10x41x10mm, Repeater: 10mm (diameter), length: 52.5mm
Length: 10m
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
Jacket Material: Half matt PVC low toxic
Conductor Material: Tinned Copper
Conductor Gauge: 26/20AWG
Shielding: AL Mylar and braid
Supported Bandwidth: 480 Mbps
Nominal Attenuation: (0.064 MHz, -0.08 dB), (0.256MHz, -0.11 dB), (0.512MHz, -0.13 dB), (0.772 MHz, -0.15 dB), (1 MHz, -0.2 dB), (4 MHz, -0.39 dB), (8 MHz, -0.57 dB), (12 MHz, -0.76 dB), (24 MHz, -0.95 dB), (48 MHz, -1.35dB), (96 MHz, -1.9 dB), (200 MHz, -3.2 dB), (400 MHz, -5.8 dB),
Minimum Bend Radius: 26mm
Operating Temperature: 0C - 50C
Storage Temperature: -20C - 60C
Transmission Medium: Twisted Pair
Transmission Technology: USB 2.0
Packaging Type: Polybag
Weight: 0.372kg
Warranty: 2
Product Compliance: CE, FCC, RoHS & REACH

10m USB 2.0 Active Repeater Cable
Supports transfer rates up to 480Mbps
Ideal for direct device connection
Plug & Play installation
2-year warranty

Cartridge Yield: 10m
Cartridge/Colour/Type: Black
Cable Length: 5-10 Metre
Cable Type: USB-A
Cable Output: USB-B

Part No.: 42761
