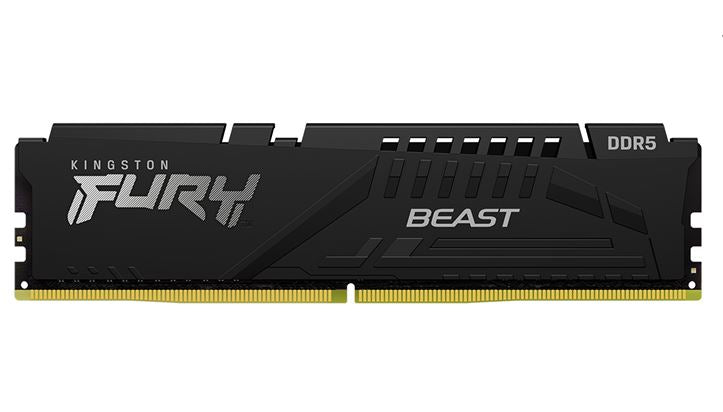

Kingston 16GB (1x16GB) DDR5 UDIMM 5600MHz CL40 FURY Beast Black XMP Gaming PC Desktop Memory - Ex-demo(box damaged only)

Kingston 16GB (1x16GB) DDR5 5600MT/s CL40 FURY Beast Black XMP Memory

Kingston FURY KF556C40BB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.

The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V.

The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

DEFAULT FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37' (34.9mm), w/heatsink

DEFAULT SPECIFICATIONS

CL(IDD) 40 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)

Row Active Time (tRASmin) 32ns(min.)

UL Rating 94 V - 0

Operating Temperature 0 to +85C

Storage Temperature -55 C to +100 C

Warranty: 12 months

Part No.: KF556C40BB-16-SP
