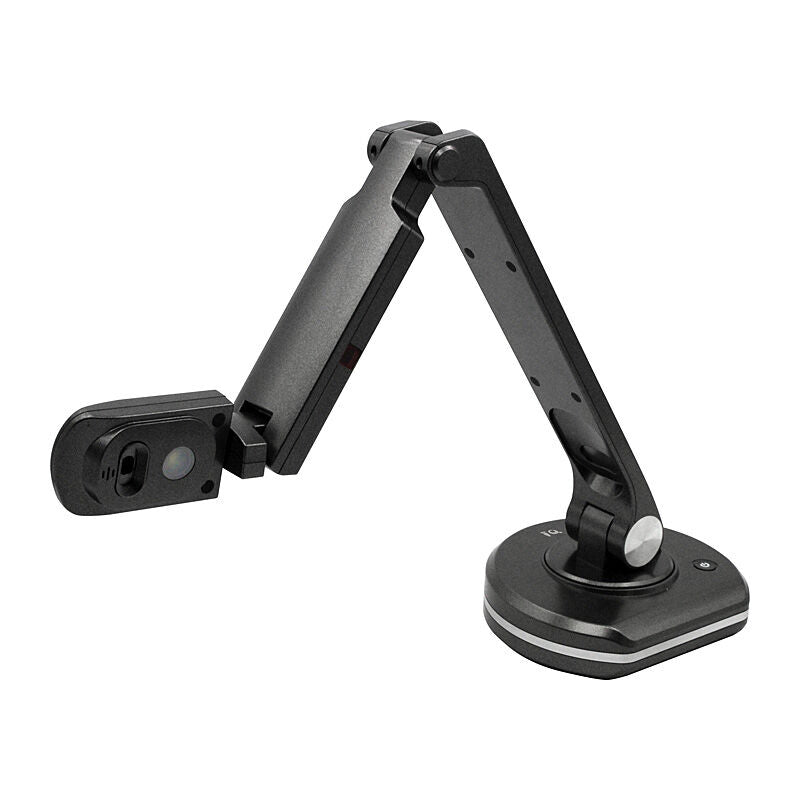

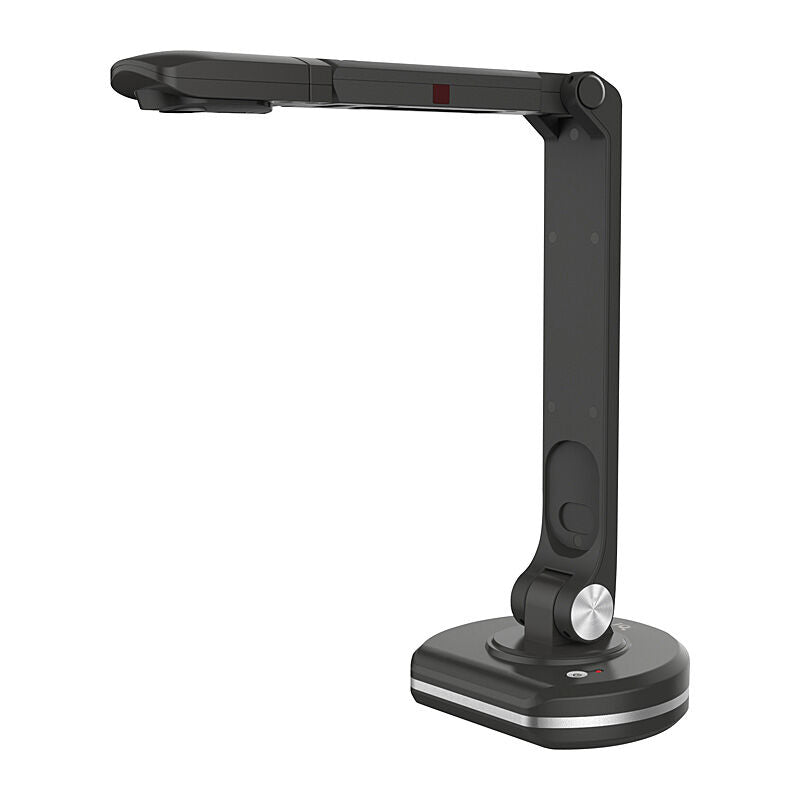

IQBoard E6510 - Document Camera

IQBOARD Document Camera

Features

• 8.0 Mega Pixels (3256×2440)
• 10x Digital Zoom Function
• Macro Shooting: ≤5cm
• Image capture and processing, Audio & Video Recording
• Auto Focus
• Flexible camera head with 180° rotation
• LEDs with softbox
• Supports IQView Micro-lecture Making Software

Specifications

• Model: E6510

• Pickup Device: CMOS 1/4'', 8MP

• Resolution:
  • 2592×1994 (5MP) 1280×960 (SXGA)
  • 1280×720 (720p) 1920×1080 (1080p) 3256×2440 (8MP)

• Digital Zoom: ×10

• Auto Focus: YES

• Auto Exposure: YES

• Auto White Balance: YES

• Frame Rate: 15fps@1920×1080

• Scanning Area: Nearly A3

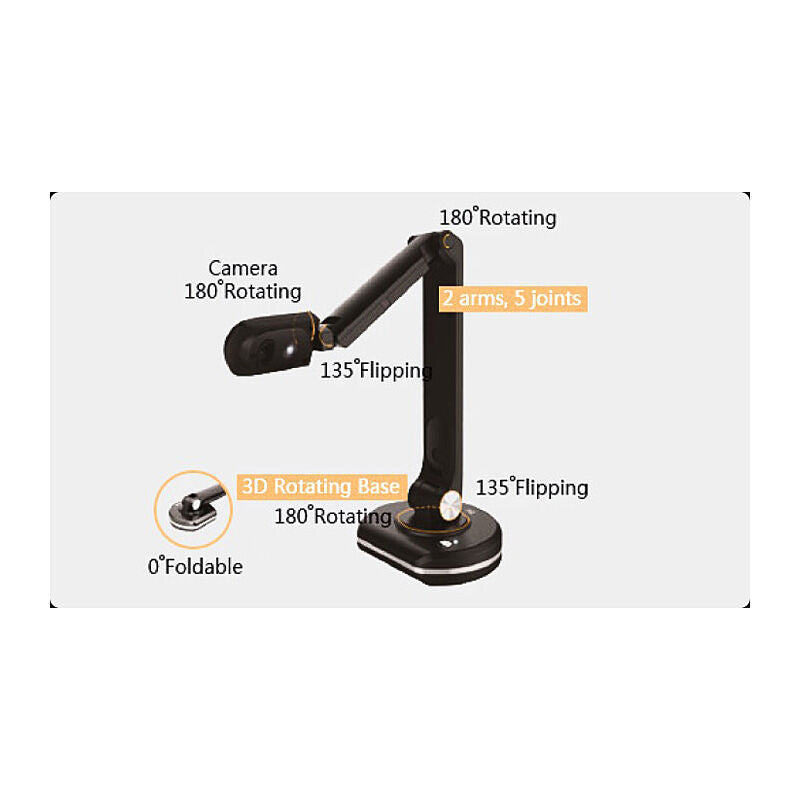

• Rotation: Camera 180°, Arm 360°

• Macro Shooting Distance: ≤5 cm

• Image Processing: Contrast ratio, Brightness control, Sharpness, Saturation, Rotation

• Light Source: 11 LEDs with softbox

• SNR: ≥40 db

• Power Supply: USB 2.0

• Audio: Built-in MIC

• Interface Ports: USB 2.0

• Integrated Software: IQView Micro-lecture Making Software

• Operation System: Windows XP/Vista/7/8/10

• Product Weight: 976 g

• Product Size: W115 mm × D75 mm × H330 mm

Downloads

• Product brochure

Part No.: E6510
