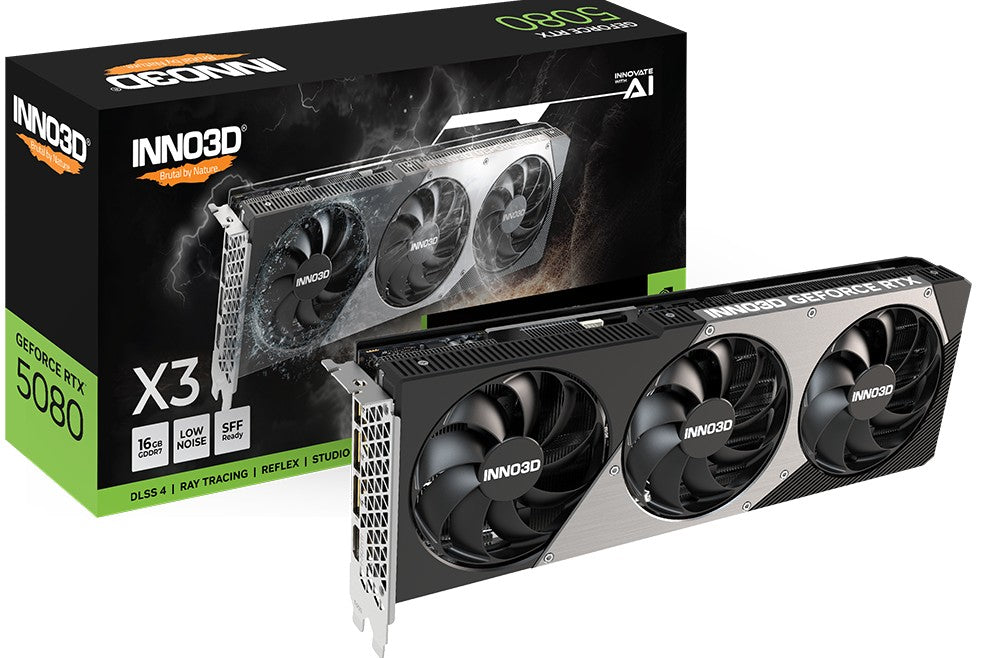

INNO3D nVidia GeForce RTX 5080 X3 16GB GDDR7 2617 MHz Boost Clock, RAM 30 Gbps, 3x DP, 1xHDMI 300x116x41mm Dual Slot

INNO3D nVidia GeForce RTX 5080 X3 16GB GDDR7 2617 MHz Boost Clock, RAM 30 Gbps, 3x DP, 1xHDMI 300x116x41mm Dual Slot

GPU Engine Specs

CUDA Cores 10752

Boost Clock (MHz) 2617MHz

Base Clock (MHz) 2295MHz

Thermal and Power Spec

Minimum System Power Requirement (W) 850W

Supplementary Power Connectors 3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable

Memory Specs

Memory Clock 30Gbps

Standard Memory Config 16GB

Memory Interface GDDR7

Memory Interface Width 256-bit

Memory Bandwidth (GB/sec) 960 GB/sec

Feature Support

Real-Time Ray Tracing Yes

Ray Tracing Cores 4th Generation, 171 TFLOPS

Tensor Cores 5th Generation, 1801 AI TOPS

NVIDIA Architecture Blackwell

Microsoft DirectX 12 Ultimate

NVIDIA DLSS 4

NVIDIA Ansel Yes

NVIDIA FreeStyle Yes

Bus Support PCI Express Gen 5

NVIDIA ShadowPlay Yes

OS Certification Windows 11 / 10, Linux, FreeBSDx86

NVIDIA Highlights Yes

NVIDIA G-SYNC™-Ready Yes

Game Ready Drivers Yes

NVIDIA Studio Drivers Yes

NVIDIA GPU Boost™ Yes

Vulkan API 1.4

OpenGL 4.6

NVIDIA Encoder 2x Ninth Generation

NVIDIA Decoder 2x Sixth Generation

Accessories

Graphics Card Dimensions

Length 300mm

Height 116mm

Width 41mm

Display Support

Multi Monitor up to 4

Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC

HDCP 2.3

Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b

Warranty: 36 months

Part No.: N50803-16D7-176068N
