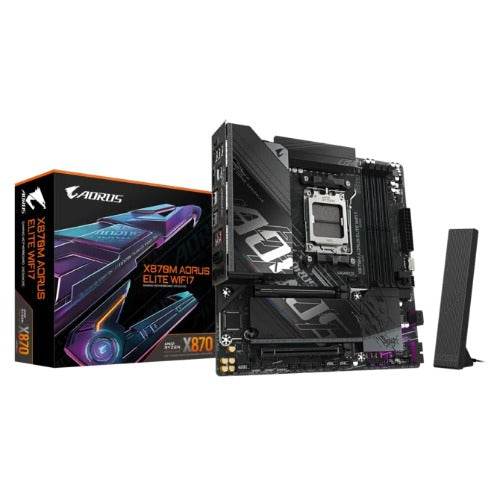

Gigabyte X870M AORUS ELITE WIFI,AMD AM5, Ryzen 9000/8000/7000, 4×DDR5 256GB, PCIe 5.0 M.2, USB4, Wi-Fi 7, 2.5GbE LAN , ALC1220, HDMI, Win11 64-bit

Gigabyte X870M AORUS ELITE WIFI,AMD AM5, Ryzen 9000/8000/7000, 4×DDR5 256GB, PCIe 5.0 M.2, USB4, Wi-Fi 7, 2.5GbE LAN , ALC1220, HDMI, Win11 64-bit

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

Chipset

AMD X870

Memory

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

Audio

Realtek® ALC1220 CODEC

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi 7 RTL8922AE

Expansion Slots

1 x PCI Express x16 slot

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU

1 x M.2 connector (M2C_SB), integrated in the Chipset

USB

CPU+ASMedia USB4® controller:

- 2 x USB4® USB Type-C® ports on the back panel

CPU:

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 11 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty: 36 months

Part No.: X870M A ELITE WF7
