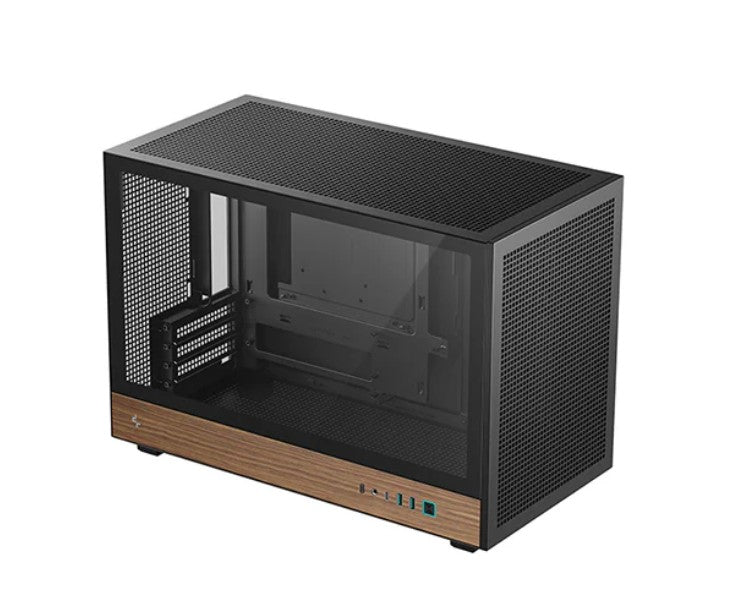

DeepCool CH260 Wood High Airflow Compact Micro-ATX Wood Grain Case.USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

CH260 WOODThe CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.

Technical Spec

Product Dimensions 438mm*225mm*312.5mm(L×W×H)

Net Weight 5.3Kg

Materials ABS+SPCC+Tempered Glass

Motherboard Support Mini-ITX / Micro-ATX

Micro-ATX(Rear Connector)

Front I/O Ports USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

3.5' Drive Bays 1

2.5' Drive Bays 1

Expansion Slots 4Slots

Pre-Installed Fans None

Fan Support Front:2×120mm

Top:3×120mm/2×140mm

Rear: 1×120mm

Radiator Support Front: NA

Top:120/140/240/280/360mm

Bottom: NA

Rear:120mm

CPU Cooler Height Limit 174mm

GPU Length Limit 388/413mm（No Front fans）

Power Supply Type ATX PS2（maximum length: 150mm）

EAN 6.93341E+12

P/N R-CH260-BKNWM0-G-1

Warranty: 12 months

Part No.: R-CH260-BKNWM0-G-1
