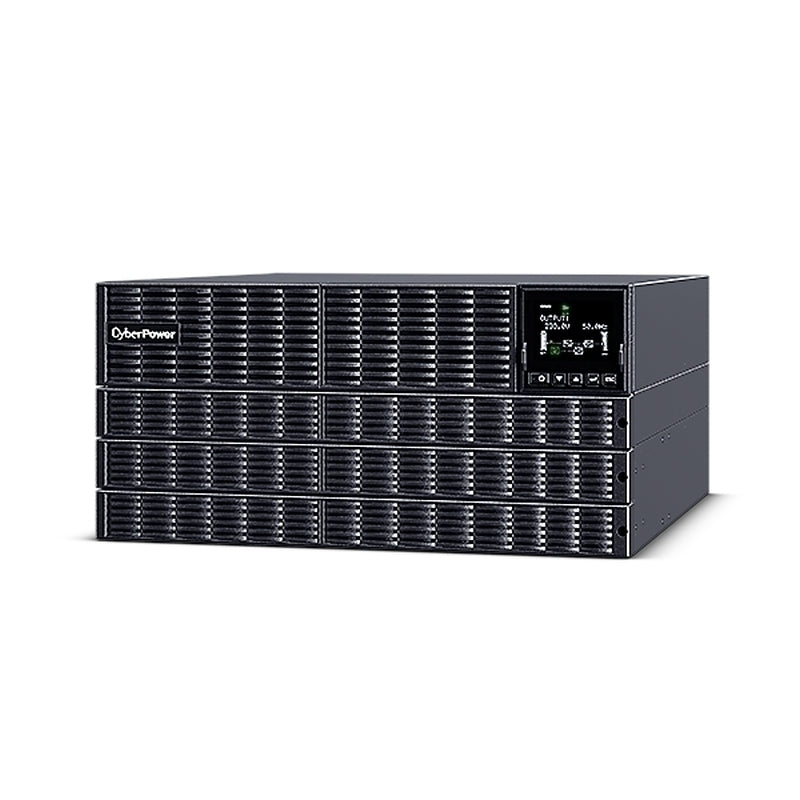

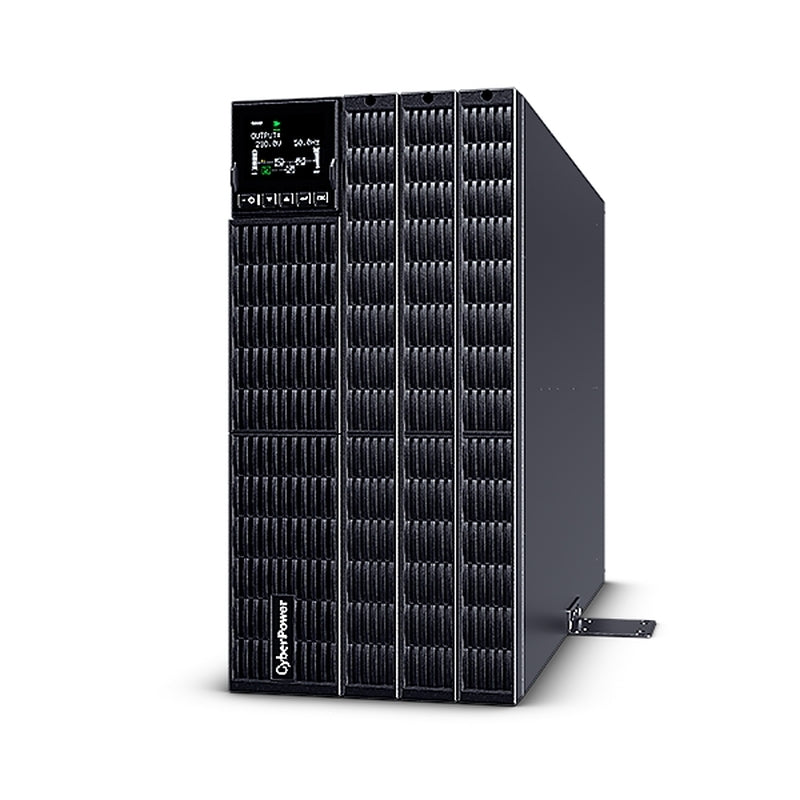

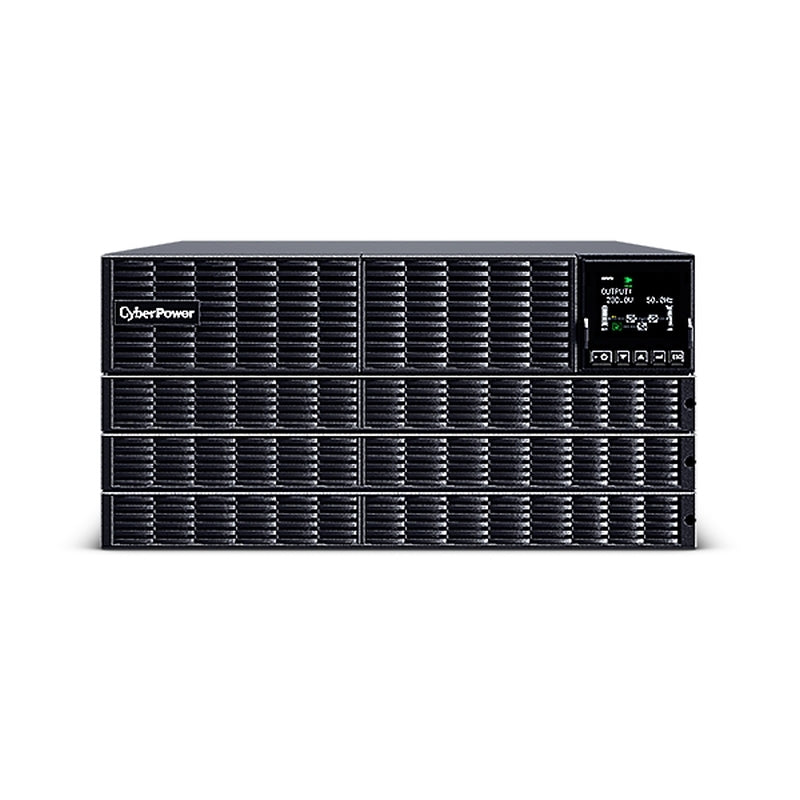

Cyberpower OLS6KERT5U Premium Smart App Rack Tower UPS - 6000VA/6000W

CP 6000VA/6000W Rack Tower UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount / Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 98%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 110 - 300
Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac
Input Frequency ( Hz ): 50 - 60
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 30
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
Capacity (VA): 6000
Capacity (Watts): 6000
On Battery Waveform: Pure Sine Wave
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately
Harmonic Distortion (Linear Load): THD?1.5%
Harmonic Distortion (Non-linear Load): THD?2%
Internal Bypass: Automatic Bypass / Manual Bypass
Maintenance Bypass: Yes
Outlet(s) - Total: 9

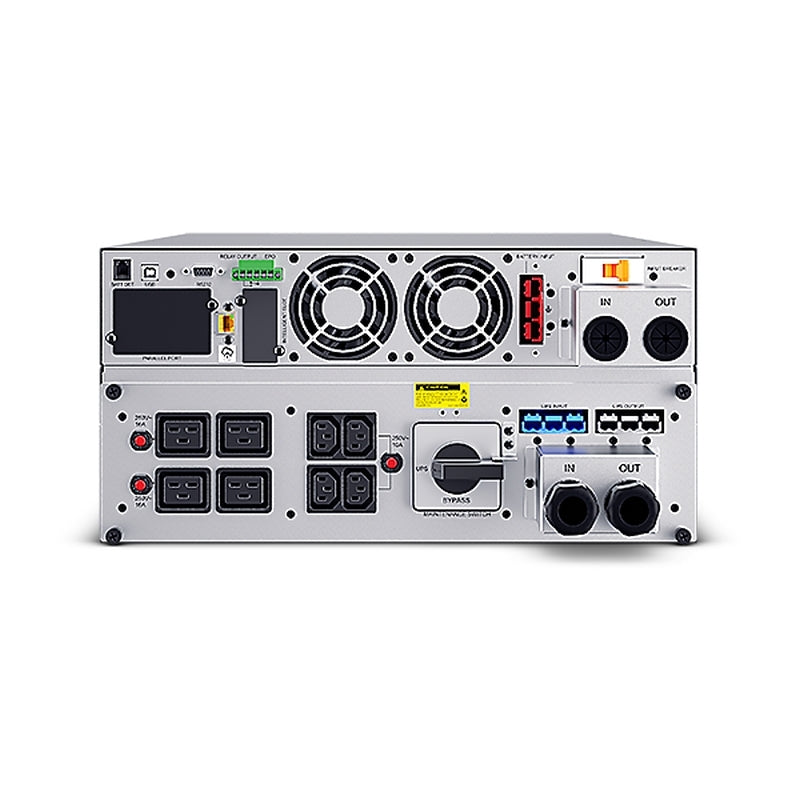

Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 17.7
Runtime at Full Load ( min ): 5.6
Typical Recharge Time ( Hours ): 4
Maximum Charging Current ( A ): 4
Adjustable Charging Current ( A ): 1 - 4
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: Yes
Hot-swappable: Yes
Compatible Extended Battery Module (EBM): BPS240V7ART3U
Extended Battery Module Auto-detection: Yes
Max. EBM Quantity ( pcs ): 10
Surge Suppression ( Joules ): 1335
EMI/RFI Filtration: Yes
Tiltable LCD Panel: 15 Degrees
HID Compliant USB Port(s): 1
Serial Port: RS232
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 213.5 x 661mm
Weight: 75kg
Installed Rack Height ( U ): 5
Online Thermal Dissipation ( BTU/hr ): 1777
Audible Noise at 1.0M from Surface of Unit: 62 dBA
Certifications: CE / RoHS

Online (Double Conversion) UPS Topology
High Output Power Factor
Overload Protection
Maintenance Bypass Switch
Extended Battery Module Auto-detection
User-replaceable Batteries
Tiltable LCD Panel
Relay-type Dry Contact
SNMP/HTTP Remote Management Capability (Optional)
Rack/Tower Convertible Configurations
ECO Mode
Pure Sine Wave Output
Zero Transfer Time
Extended Battery Module (EBM)
Adjustable Charging Current
Color LCD Panel
Emergency Power Off (EPO) Port
PowerPanel Management Software
Built-in Remote Cloud Card by Ethernet
What's in the box?
1 x OLS6KERT5U UPS
1 x External Maintenance Bypass PDU
1 x Rackmount Rail
1 x Rackmount Ears
1 x Rail Kit
1 x Screw Kit
1 x Power Cord
1 x USB Cable
1 x Phone Line
1 x User Manual

Part No.: OLS6KERT5U
