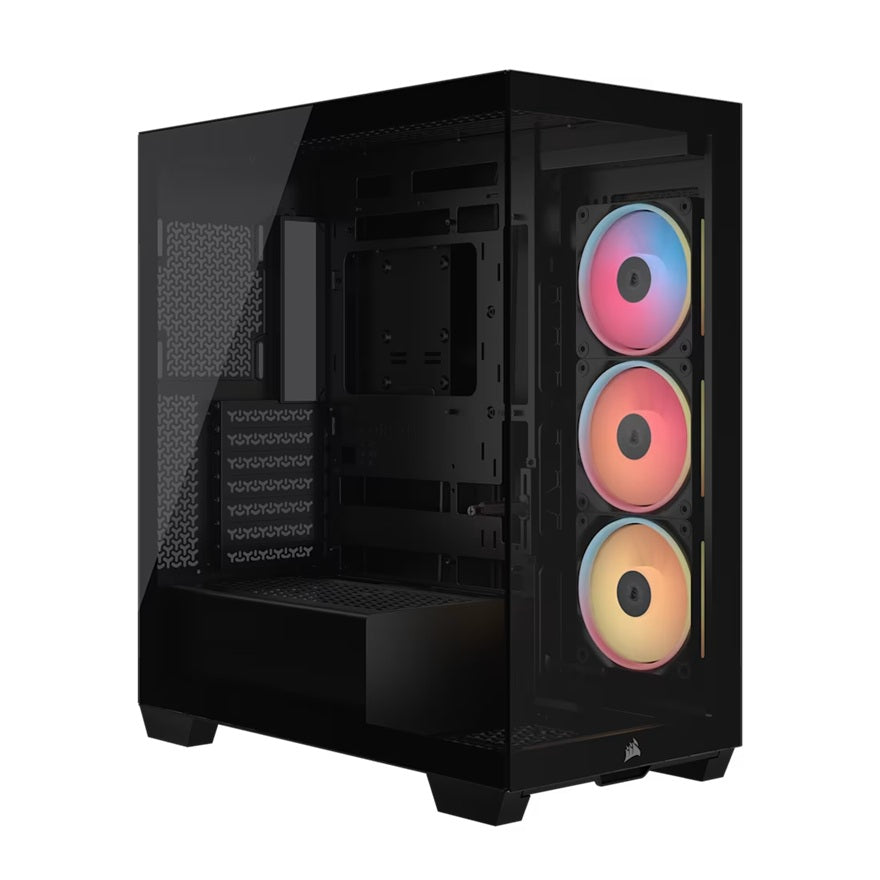

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case - Black, E-ATX, Side 360mm Rad, Glass Panels, USB-C, RS ARGB Fans, 425mm GPU, iCUE LINK Ready

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case - Black

•Wraparound glass view with removable front and side panels

•Three pre-installed iCUE LINK LX120-R fans with iCUE LINK System Hub

•Builder-friendly features for a high-performance custom PC

•Side, roof, and PSU fan mounting points for great cooling

•Compatible with reverse connection motherboards

EDITION

3500 LX-R RGB iCUE LINK

BUILD WITHOUT BOUNDARIES

You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.

REVERSE MOTHERBOARD SUPPORT

Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isn’t spoiled by cables.

INCLUDES iCUE LINK LX120-R RGB PERFORMANCE FANS

Three LX120-R RGB reverse rotor fans and an iCUE LINK System Hub enable you to take advantage of a revolutionary ecosystem for an easier build. These fans undergo months of rigorous testing to ensure they deliver powerful, efficient airflow that keeps your system running at its best.

COOLING PERFORMANCE

Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.

TECH SPECS

Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height 506

Case Length 460

Case Width 240

Material Steel, Tempered Glass

Color BLACK

Case Size Mid-Tower

Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm

Case Window Tempered Glass

Compatible Liquid Coolers H60, H100, H115, H150 (All Series)

Case Warranty 2 Year

Internal 3.5' Drive Bays 2

Internal 2.5' Drive Bays 2

Maximum CPU Cooler Height 170mm

Maximum PSU Length 180mm

Case Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length 425mm

Weight 10.9kg

Case Expansion Slots 7 Horizontal (or 4 Vertical)

Case Power Supply ATX

Radiator Support - Top 360mm, 280mm, 240mm

Radiator Support - Front None

Radiator Support - Bottom None

Radiator Support - Side 360mm, 280mm, 240mm

Radiator Support - Rear 1x 120mm

Fan Support - Top 3x 120mm; 2x 140mm

Fan Support - Front None

Fan Support - Bottom 3x 120mm; 1x 140mm

Fan Support - Side 3x 120mm; 2x 140mm

Fan Support - Rear 1x 120mm

Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support Yes

Included Fans iCUE LINK LX Series

Dust Filtration Yes

Cable Routing Space 45mm

RapidRoute Included Compatible (Sold Separately)

Left Side Panel Tempered Glass

Right Side Panel Steel

Vertical Mount Support Supported (Riser Card Sold Separately)

Left Side Panel Tempered Glass

Right Side Panel Steel

Vertical Mount Support Supported (Riser Card Sold Separately)

Warranty: 12 months

Part No.: CC-9011324-WW
