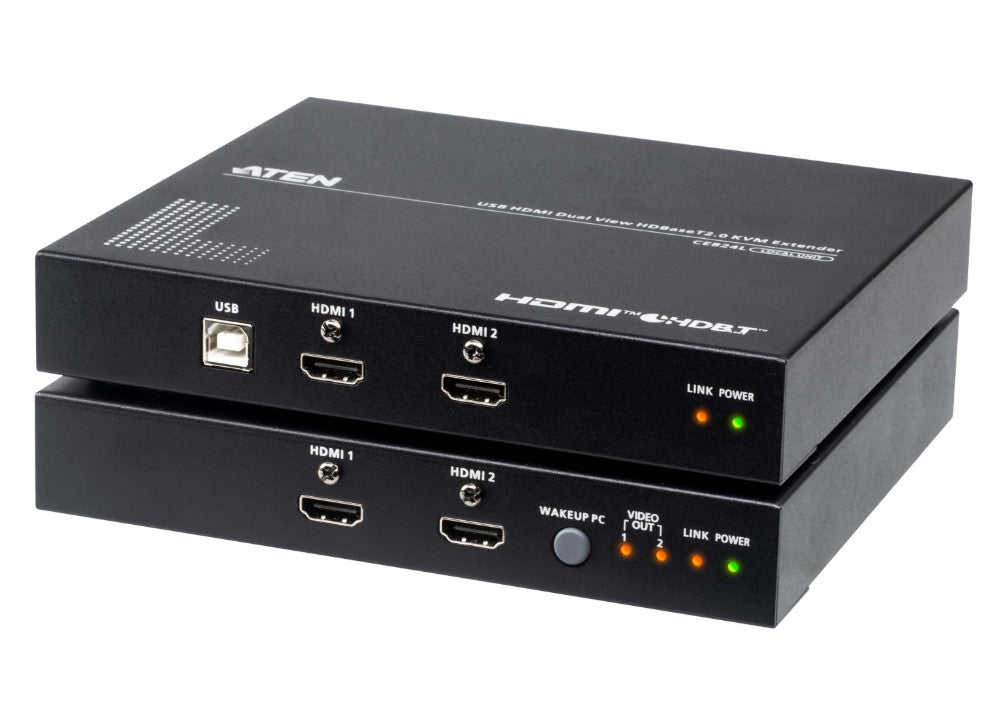

ATEN USB HDMI Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View), 1x CE824L and 1x CE824R

ATEN CE824 adopts HDBaseT 2.0 technology to transmit uncompressed HDMI video, stereo audio, USB, and RS-232 signals while supporting up to 4096 x 2160 @ 30Hz (4:4:4) on a single display / 1080p on dual displays across 100 m over a single Cat 6 / 6A cable (ATEN 2L-29330 recommended), allowing access to a distant computer for KVM control from the remote console. With Long Reach Mode enabled, the CE824 can extend 1080p HDMI source along with other signals up to 150 m.* The ease of cabling installation plus the rack mount compatibility assure a more efficient system setup. The CE824 serves as an ideal solution forapplications that require high-quality multi-signal extension and KVM control across long distances – such as control centers, banking and finance sectors, industrial warehouses, and extended workstations.

Note: 1080p @ 150 m can only be achieved via single display installation.

Package Contents

1x CE824L USB HDMI Dual View HDBaseT 2.0 KVM Extender (Local Unit)

1x CE824R USB HDMI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)

2x HDMI cables

1x pink audio jack cable set

1x green audio jack cable set

1x USB Type-A to USB Type-B cable

2x power adapters

1x foot pad set (8 pcs)

2x mounting kits

1x user instructions

Warranty: 24 months

Part No.: CE824-AT-U
