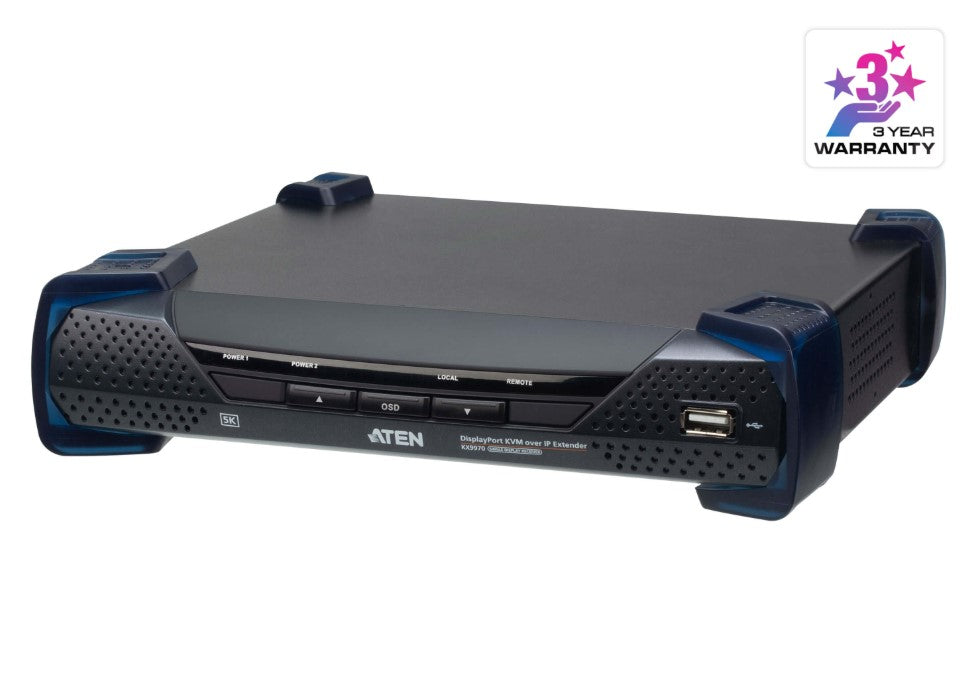

Aten 5K DisplayPort KVM over IP Receiver with Boundless Switching and Support for Video Walls

Native DP signal processing with color depth up to 12 bits

Lossless video compression up to True 4K, 5K with zero latency

Support 32:9 ultra-wide resolution

USB isochronous transfer enables USB camera and USB speaker usage between transmitter and receiver

Advanced Features

Lossless video compression up to 5120 x 2880 including UHD or DCI with zero latency

Native DP signal processing with color depth 24, 30, 36 bits

Supports Adobe RGB

Supports USB isochronous transfer to enable USB camera and USB speaker usage between transmitter and receiver

ATEN Matrix Link – allows users to instantly link transmitters and receivers to perform real-time port and profile switching on an iPad

Boundless Switching – simply moves the mouse cursor across screen borders to switch between different receivers (Rx)

Push and Pull – shares content instantly to/from a single Rx or video wall by just one click

Video walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout

Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date

Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx

Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+

Advanced User Authorization Settings – administrators can set up to four access modes on Tx devices for collaboration or prevention of interference among users

Configurable user and group permissions for access and control of KX devices

Tx grouping of up to 4 sets of KX transmitters to support multi-display applications

Rx access control – users at the Tx local console can enable / disable Rx control privilege by simply pressing a control button2

Note:

1. These advanced functions are supported when the KX transmitters are paired with KX receivers and managed by CCKM.

2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

Warranty: 24 months

Part No.: KX9970R-AX-U
