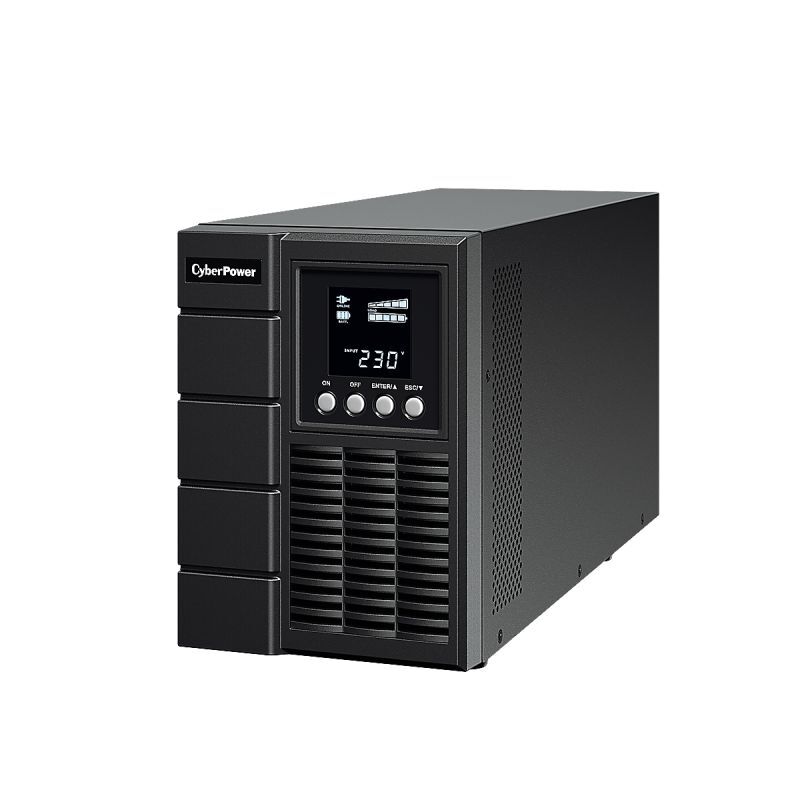

Cyberpower 1000VA/900W Tower UPS

CyberPower OLS1000E is a high-performance UPS featuring online double-conversion topology, providing seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance, transportation, and emergency systems.

Features/Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 160 - 300
Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 4.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Power Cord Length (m.): 1.8
Output Capacity (Watts): 900
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Internal Bypass: Automatic Bypass, Manual Bypass
Outlet(s) - Total: 4
Outlet Type: IEC C13 x 4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 15
Runtime at Full Load ( min ): 5
Typical Recharge Time ( Hours ): 5
Maximum Charging Current ( A ): 1
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Battery Type: Sealed Lead-acid
Compatible Extended Battery Module (EBM): BPSE36V45A
Max. EBM Quantity ( pcs ): 3
Surge Suppression ( Joules ): 440
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 151 x 225 x 394mm
Weight: 13.1kg
Certifications: CE, RCM

Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)

Warranty: 3 Years
Enclosure Construction: Metal
Form Factor: Tower
Input Frequency Detection: 1.8
Phase: Single Phase
UPS Topology: Online Double Conversion
Recharge Time: 5 Hours

Part No.: OLS1000E
