CyberPower PR2000ERTXL2U guarantees power backup protection for home theatre, multimedia, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. UPS adopts line-interactive topology.

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 - 288
Adjustable Voltage Range ( Vac ): 151 - 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Power Cord Length (m.): 3
Output Capacity (Watts): 2000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) - Battery & Surge Protected: 10
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 5
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 12.8
Runtime at Full Load ( min ): 4
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0129
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
LCD Orientation: Rotatable LCD Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 500mm
Weight: 34.4kg
Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA

Line-interactive UPS Topology
Active PFC Compatible
Toolless Battery Replacement
High Output Power Factor
Overload Protection
Quick Charging Technology
Extended Battery Module (EBM)
EMI and RFI Filtration
USB Connectivity Port
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Battery Management Technology
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Hot-swappable Batteries
Surge and Spike Protection
LCD Status Display
Serial Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations

Form Factor: Rackmount / Tower

CyberPower PR1000ERTXL2U guarantees power backup protection for home theatre, multimedia, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. UPS uses line-interactive topology.

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 - 288
Adjustable Voltage Range ( Vac ): 151 - 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Power Cord Length (m.): 3
Output Capacity (Watts): 1500
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) - Battery & Surge Protected: 10
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 5
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 19.3
Runtime at Full Load ( min ): 6.5
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0129
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
LCD Orientation: Rotatable LCD Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 500mm
Weight: 32kg
Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA

Line-interactive UPS Topology
Active PFC Compatible
Toolless Battery Replacement
High Output Power Factor
Overload Protection
Quick Charging Technology
Extended Battery Module (EBM)
EMI and RFI Filtration
USB Connectivity Port
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Battery Management Technology
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Hot-swappable Batteries
Surge and Spike Protection
LCD Status Display
Serial Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations

Form Factor: Rackmount / Tower

CP Pro 1000VA Rack UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount | Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
Input Voltage Range ( Vac ): 160 - 286
Adjustable Voltage Range ( Vac ): 150 - 300 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1
Power Cord Length: 3m
Capacity (VA): 1000
Capacity (Watts): 800
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5 % | 230 ± 5 % | 240 ± 5 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.8
Automatic Voltage Regulation (AVR): Double Boost | Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 6
Outlet(s) - Critical Load (CL): 2
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 12
Runtime at Full Load ( min ): 3.1
Typical Recharge Time ( Hours ): 6
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Cartridge (RBP): RBP0027
Battery Cartridge (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning
LCD Setting & Control: Alarm Setting | Input & Output | Battery Setting
LED Indicators: Power On
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode | Low Battery | Overload | Overcharge | Overheat
Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | Serial Cable x1 | EPO Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 430 x 44 x 490mm
Weight: 18kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 72
Certifications: CE | C-Tick | EAC | RoHS
Warranty: 3 Years

Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Critical/Non-critical Load Outlets
Surge and Spike Protection
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Hot-swappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations
What's in the box?
1 x PR1000ELCDRT1U UPS
1 x Rackmount Ears
1 x Screw Kit
1 x Power Cord
1 x USB Cable
1 x Serial Cable
1 x EPO Cable
1 x User Manual

CP Switched ATS 32Amp

Features/Specifications:
Phase: Single Phase
Dual Power Inputs: Yes
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 32
Input Connector Type: IEC 60309 32A x 2
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 20
Outlets - # of Bank(s): 2
Outlet(s) - Total: 18
Outlet(s) - Rear: 18
Outlet Type: IEC C19 x 2 | IEC C13 x 16
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Installed Rack Height (U): 2
Form Factor: 2U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 433 x 88 x 215mm
Weight: 7.8kg
Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS

CP Switched ePDU 32Amp

Features/Specifications:
Phase: Single Phase
Nominal Input Voltage ( Vac ): 200 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 32 (CE)
Input Connector Type: IEC 60309 32A x 1 ?
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) ( A ): 20
Idle Power Consumption ( W ): < 5
Outlets - # of Bank(s): 2
Outlet(s) - Total: 24
Outlet(s) - Front: 24
Outlet Type: IEC C13 x 21 | IEC C19 x 3
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
Auto LCD Orientation: Yes
LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Tx/Rx | Link | Outlet
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 56 x 1665 x 48mm
Weight: 8.0kg
Certifications: CE | EN 55032 Class A | RoHS
Warranty: 2 Years

Real-time Local/Remote Monitoring and Switching
Overload Protection
Ultra Low Power Consumption
Digital Real-time Load Display
Hot-swappable LCD Design
LED Status Indicator
Support ENVIROSENSOR
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Work under High Temperature
Industrial-grade Metal Housing
User Configurable Color LCD
Rotatable LCD for Proper Display Orientation
Firmware Upgrade via USB
User-upgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking
What's in the box?
1 x PDU41405
1 x User Manual
1 x Product Registration Card
1 x Cord Retention Tray
1 x Mounting Brackets
1 x Cable Ties
1 x Screw Kit

CP Smart App Rack 1500VA UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 165 - 271
Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 x 1
Power Cord Length: 1.83m
Capacity (VA): 1500
Capacity (Watts): 900
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.6
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting | Circuit Breaker
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 2
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 11
Runtime at Full Load ( min ): 2.5
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Replacement Battery Pack (RBP): RBP0026
Replacement Battery Pack (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information
LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output
HID Compliant USB Port(s): 1
Serial Port: Dry Contact
Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
Management Cable ( pcs ): Power Cord x4 | USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 433 x 44 x 389mm
Weight: 14.9kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 24
Certifications: CE | EAC | RCM | RoHS
Warranty: 2 Years

Line-interactive UPS Topology
Simulated Sine Wave Output
Overload Protection
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
What's in the box?
1 x OR1500ERM1U UPS
1 x Rackmount Ears
1 x Power Cord
1 x USB Cable
1 x User Manual

CP Smart App Rack 1000VA UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 165 - 271
Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 x 1
Power Cord Length: 1.83m
Capacity (VA): 1000
Capacity (Watts): 600
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10 %
On Battery Frequency ( Hz ): 50 ± 10% | 60 ± 10%
Power Factor: 0.6
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting | Circuit Breaker
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 2
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 14
Runtime at Full Load ( min ): 3.5
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Replacement Battery Pack (RBP): RBP0025
Replacement Battery Pack (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information
LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output
LED Indicators: Power On
HID Compliant USB Port(s): 1
Serial Port: Dry Contact
Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
Management Cable ( pcs ): Power Cord x4 | USB Cable x1
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 433 x 44 x 389mm
Weight: 13.7kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 24
Certifications: CE | EAC | RCM | RoHS
Warranty: 2 Years

Line-interactive UPS Topology
Simulated Sine Wave Output
Overload Protection
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
What's in the box?
1 x OR1000ERM1U UPS
1 x Rackmount Ears
1 x Power Cord
1 x USB Cable
1 x User Manual

CyberPower OLS3KECR Double Conversion Online UPS - 3 kVA/2.70 kW - Tower - 4 x AU, 2 x IEC 60320 C13, 1 x Terminal Block Receptacle(s) - Serial Port - USB - SNMP

CyberPower OLS2KECR Double Conversion Online UPS - 2 kVA/1.80 kW - Tower - 4 x AU Receptacle(s) - Serial Port - USB - SNMP

CyberPower OLS1KECR Double Conversion Online UPS - 1 kVA/900 W - Tower - 3 x AU Receptacle(s) - Serial Port - USB - SNMP

CyberPower Online OLS1500E Double Conversion Online UPS - 1.50 kVA/1.20 kW - Tower - 5 Minute Stand-by - 280 V AC Input - 240 V AC Output - 4 x IEC 60320 C13 Receptacle(s) - Serial Port - USB

19 Inch 42U Rack Enclosure, Width: 750mm, Depth: 1200mm

Features/Specifications:
Product Category: Rack Enclosure
Rack Height (U): 42
Rack Door Type: Perforated Metal Door
Equipment Mounting Hole Type: Square Mounting Holes
Colour: Black
Weight: 156 kg
Dimensions: 75x 120 cm
Leveling Feet: Preinstalled
Rolling Casters: Preinstalled
Stabilization Brackets: Yes
Joining Brackets: Yes
Removable Roof: Yes
Removable Door(s) and Side Panels: Yes
Reversible Front Door: Yes
Split Rear Door: Yes
Lockable Doors and Side Panels: Yes, Keyed-alike
Rack U Numbering: Yes
Ventilation: Perforated Door and Ventilated Roof
Heat Dissipation: Optional Fan Kit
Cable Management: Pre-installed Rails with Toolless Mounting Slots
Cable Access: Roof
Integrated Grounding: Yes
Certifications: CE | DIN41491 | DIN41494 | EIA/ECA-310-E | IEC 297-2 | RoHS
Warranty: 1-year

Industry Standard Depth Rack Enclosure
Hexagonal Perforated to Enhance Ventilation Capability
Removable Door(s) and Side Panels
Rear Accessory Channels with Toolless Mounting Slots
Reversible Front Door
Pre-installed Heavy Duty Leveling Feet
Shipping Brackets Included
Rack Row Bolt Hardware Included
Optional Fan Kit for Increasing Ventilation
Adjustable Mounting Depth
Doors and Side Panels with Keyed-alike Locks
Pre-installed Casters
Split Rear Door
Removable Enclosure Roof
Rack U Numbering
Easy Roof Cable Access
Integrated Grounding Points
PCI DSS Compliant
What's in the box:
Mini PC PN63
AC Adapter
Driver DVD (non-OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard ; Mouse (optional)
VESA Mount (optional)

19 Inch 42U Rack Enclosure, Width: 600mm, Depth: 1200mm

Features/Specifications:
Product Category: Rack Enclosure
Rack Height (U): 42
Rack Door Type: Perforated Metal Door
Equipment Mounting Hole Type: Square Mounting Holes
Colour: Black
Weight: 156 kg
Dimensions: 60 x 120 cm
Leveling Feet: Preinstalled
Rolling Casters: Preinstalled
Stabilization Brackets: Yes
Joining Brackets: Yes
Removable Roof: Yes
Removable Door(s) and Side Panels: Yes
Reversible Front Door: Yes
Split Rear Door: Yes
Lockable Doors and Side Panels: Yes, Keyed-alike
Rack U Numbering: Yes
Ventilation: Perforated Door and Ventilated Roof
Heat Dissipation: Optional Fan Kit
Cable Management: Pre-installed Rails with Toolless Mounting Slots
Cable Access: Roof
Integrated Grounding: Yes
Certifications: CE | DIN41491 | DIN41494 | EIA/ECA-310-E | IEC 297-2 | RoHS
Warranty: 1-year

Industry Standard Depth Rack Enclosure
Hexagonal Perforated to Enhance Ventilation Capability
Removable Door(s) and Side Panels
Rear Accessory Channels with Toolless Mounting Slots
Reversible Front Door
Pre-installed Heavy Duty Leveling Feet
Shipping Brackets Included
Rack Row Bolt Hardware Included
Optional Fan Kit for Increasing Ventilation
Adjustable Mounting Depth
Doors and Side Panels with Keyed-alike Locks
Pre-installed Casters
Split Rear Door
Removable Enclosure Roof
Rack U Numbering
Easy Roof Cable Access
Integrated Grounding Points
PCI DSS Compliant
What's in the box:
Mini PC PN63
AC Adapter
Driver DVD (non-OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)

CyberPower Systems Online S (A) 2000VA/1800W Rack UPS - 12V/9AHx4 - 8x IEC C13 - USB & Serial Port & SNMP Slot (optional RMCARD205) - 2 Yrs Adv. Replacement WTY - Incl Rail kit Features/Specifications: Phase: Single Phase Form Factor: Rackmount, Tower UPS Topology: Online Double Conversion Energy Saving Technology: Online ECO Mode Efficiency > 95% Active PFC Compatibility: Yes Generator Compatibility: Yes Nominal Input Voltage ( Vac ): 230 ± 10% Input Voltage Range ( Vac ): 190 - 300 Adjustable Voltage Range ( Vac ): 0-30% Load for 80 - 300 Vac | 0-50% Load for 120 - 300 Vac | 0-75% Load for 160 - 300 Vac | 0-90% Load for 190 - 300 Vac | 0-100% Load for 200 - 300 Vac Input Frequency ( Hz ): 50 ± 10 | 60 ± 10 Input Frequency Detection: Auto-sensing Rated Input Current ( A ): 9 Input Power Factor: 0.99 Input Connector Type: IEC C14 Power Cord Length (m.): 1.5 Output Capacity (Watts): 1800 On Battery Waveform: Pure Sine Wave On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1% Output Voltage Setting: Configurable On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5% Output Frequency Setting: Configurable Power Factor: 0.9 ECO Mode Voltage Tolerance: ± 15 % Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately Overload Protection (Bypass Mode): >130% Load Immediately Crest Factor: 3 : 1 Harmonic Distortion (Linear Load): THD?3% Harmonic Distortion (Non-linear Load): THD?5% Internal Bypass: Automatic Bypass, Manual Bypass Outlet(s) - Total: 8 Outlet Type: IEC C13 x 8 Outlet(s) - Battery ; Surge Protected: 8 Outlet(s) - Critical Load (CL): 4 Outlet(s) - Non-Critical Load (NCL): 4 Typical Transfer Time ( ms ): 0 Runtime at Half Load ( min ): 11.9 Runtime at Full Load ( min ): 4 Typical Recharge Time ( Hours ): 4 Maximum Charging Current ( A ): 1.5 Start On Battery: Yes Smart Battery Management (SBM): Yes User-replaceable: Yes - Qualified Personnel Only Battery Type: Sealed Lead-acid Battery Cartridge: RBP0157 RBP Quantity ( pcs ): 1 Battery Quantity (Each RBP) ( pcs ): 4 Battery Voltage (Each RBP) ( V ): 48 Compatible Extended Battery Module (EBM): BPSE48V40ART2U Extended Battery Module Auto-detection: Yes Max. EBM Quantity ( pcs ): 3 Surge Suppression ( Joules ): 363 EMI/RFI Filtration: Yes Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault ; Warning, Other Information, Event ; Log LCD Setting ; Control: Mode Setting, Alarm Setting, Input ; Output, Battery Setting HID Compliant USB Port(s): 1 Dry Contact (with Relay): Yes Emergency Power Off (EPO) Port: Yes Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery Management Cable ( pcs ): Power Cord x2, USB Cable x1 Power Management Software: PowerPanel Business (Recommended) SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205 Enclosure Construction: Metal Rackmount Rail: Yes Rackmount Ears: Yes Dimensions: 438 x 88 x 430 Weight: 19.2kg Certifications: CE, RCM Online (Double Conversion) UPS Topology Generator Compatible Zero Transfer Time Extended Battery Module Auto-detection Critical/Non-critical Load Outlets Phone/Fax/Modem/DSL/Network Protection Variable Speed Fans PowerPanel Management Software Rack/Tower Convertible Configurations ECO Mode Overload Protection Smart Battery Management (SBM) Surge and Spike Protection EMI and RFI Filtration Color LCD Panel Emergency Power Off (EPO) Port SNMP/HTTP Remote Management Capability (Optional) Form Factor: Rackmount / Tower

CP 1500VA/1350W Tower UPS

Features/Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 160 - 300
Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 6.5
Input Power Factor: 0.98
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1
Power Cord Length: 1.8m
Capacity (VA): 1500
Capacity (Watts): 1350
On Battery Waveform: Pure Sine Wave
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Harmonic Distortion (Linear Load): THD?3%
Harmonic Distortion (Non-linear Load): THD?5%
Outlet(s) - Total: 4
Outlet Type: IEC C13 x 4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 14
Runtime at Full Load ( min ): 4
Typical Recharge Time ( Hours ): 5
Maximum Charging Current ( A ): 1
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Compatible Extended Battery Module (EBM): BPSE36V45A
Max. EBM Quantity ( pcs ): 3
Surge Suppression ( Joules ): 440
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 151 x 225 x 394mm
Weight: 15.3kg
Online Thermal Dissipation ( BTU/hr ): 420
Audible Noise at 1.5M from Surface of Unit: 45 dBA
Certifications: CE / RCM / RoHS
Warranty: 2 Years

Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
What's in the box?
1 x OLS1500E UPS
1 x Power Cord
1 x USB Cable
1 x Phone Line
1 x User Manual

19Inch 1U Heavy Duty Depth-Adjustible Shelf, 180lbs (80kg) capacity, 25 (650mm) depth

Features/Specifications:
Capacity: 80kg
Installation: Hardware Included
Material: Cold Rolled Steel
Vented: Yes
Maximum Mounting Depth: 83.2cm
Minimum Mounting Depth: 65.0cm
Dimensions: 48.5 x 4.3 x 65.0cm
Adjustable Mounting Depth: 65 - 83.2cm
Weight: 5.5kg
Certifications: RoHS
Warranty: 2 Years

Durable and Sturdy Rack Shelves
Installation Hardware Included
Cold Rolled Steel with Black Finish
Adjustable Mounting Depth
Easy Installation for Racks
Ventilation Design

19Inch 1U Slide Shelf, 100lbs (45kg) capacity, 25 (650mm) depth

Features/Specifications:
Capacity: 60kg
Installation: Hardware Included
Material: Cold Rolled Steel
Vented: Yes
Maximum Mounting Depth: 101.4cm
Minimum Mounting Depth: 65.0cm
Dimensions: 48.5 x 6.0 x 65.0cm
Adjustable Mounting Depth: 65 - 101.4cm
Weight: 9.0kg
Certifications: RoHS
Warranty: 2

Durable and Sturdy Rack Shelves
Installation Hardware Included
Cold Rolled Steel with Black Finish
Adjustable Mounting Depth
Easy Installation for Racks
Ventilation Design

Combination Door Lock, 2 per pack

Features/Specifications:
Installation: Hardware Included
Material: Plastic and Cold Rolled Steel
Handles per Package: 2
Dimensions: 3.6 x 16.0 x 4.5cm
Weight: 0.42kg
Certifications: RoHS

2 Handles per Set
Key Override
Reversible Handle Direction for Different Door Orientations
Installation Hardware Included

19Inch 6U 600mm depth Wall Mount Enclosure, hex perforated metal door, 60KG loading capacity

Features/Specifications:
Rack Height: 6 Units
Rack Door Type: Perforated Metal Door
Equipment Mounting Hole Type: Dual Mounting Hole (Square and #12-24)
Weight Capacity: 60kg
Maximum Mounting Depth: 56.2cm
Dimensions: 60 x 37.2 x 60cm
Weight: 16.9kg
Certifications: CE / DIN41491 / DIN41494 / EIA/ECA-310-E / IEC 60297-3-100 / RoHS

Square and #12-24 Threaded Mounting Holes
Hexagonal Perforated to Enhance Ventilation Capability
Easy Cable Access Top and Bottom
Reversible Front Door
Flexible Enclosure Configuration
Optional Caster Kit for Mobility
PCI DSS Compliant
Adjustable Mounting Depth
Doors and Side Panels with Keyed-alike Locks
Removable Doors and Side Panels
Rack U Numbering
Integrated Grounding Points
Optional Fan Kit for Increasing Ventilation

19inch 48U Rack Enclosure, Width: 600mm, Depth: 1200mm

Features/Specifications:
Product Category: Rack Enclosure
Rack Height (U): 48
Rack Door Type: Perforated Metal Door
Equipment Mounting Hole Type: Square Mounting Holes
Colour: Black
Dimensions: 60 x 120 cm
Leveling Feet: Preinstalled
Rolling Casters: Preinstalled
Stabilization Brackets: Yes
Joining Brackets: Yes
Removable Roof: Yes
Removable Door(s) and Side Panels: Yes
Reversible Front Door: Yes
Split Rear Door: Yes
Lockable Doors and Side Panels: Yes, Keyed-alike
Rack U Numbering: Yes
Ventilation: Perforated Door and Ventilated Roof
Heat Dissipation: Optional Fan Kit
Cable Management: Pre-installed Rails with Toolless Mounting Slots
Cable Access: Roof
Integrated Grounding: Yes
Certifications: CE | DIN41491 | DIN41494 | EIA/ECA-310-E | IEC 297-2 | RoHS
Warranty: 1-year

Industry Standard Depth Rack Enclosure
Hexagonal Perforated to Enhance Ventilation Capability
Removable Door(s) and Side Panels
Rear Accessory Channels with Toolless Mounting Slots
Reversible Front Door
Pre-installed Heavy Duty Leveling Feet
Shipping Brackets Included
Rack Row Bolt Hardware Included
Optional Fan Kit for Increasing Ventilation
Adjustable Mounting Depth
Doors and Side Panels with Keyed-alike Locks
Pre-installed Casters
Split Rear Door
Removable Enclosure Roof
Rack U Numbering
Easy Roof Cable Access
Integrated Grounding Points
PCI DSS Compliant
What's in the box:
Mini PC PN63
AC Adapter
Driver DVD (non-OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)

19inch 48U Rack Enclosure, Width: 600mm, Depth: 1070mm

Features/Specifications:
Product Category: Rack Enclosure
Rack Height (U): 48
Rack Door Type: Perforated Metal Door
Equipment Mounting Hole Type: Square Mounting Holes
Colour: Black
Dimensions: 60 x 107 cm
Leveling Feet: Preinstalled
Rolling Casters: Preinstalled
Stabilization Brackets: Yes
Joining Brackets: Yes
Removable Roof: Yes
Removable Door(s) and Side Panels: Yes
Reversible Front Door: Yes
Split Rear Door: Yes
Lockable Doors and Side Panels: Yes, Keyed-alike
Rack U Numbering: Yes
Ventilation: Perforated Door and Ventilated Roof
Heat Dissipation: Optional Fan Kit
Cable Management: Pre-installed Rails with Toolless Mounting Slots
Cable Access: Roof
Integrated Grounding: Yes
Certifications: CE | DIN41491 | DIN41494 | EIA/ECA-310-E | IEC 297-2 | RoHS
Warranty: 1-year

Industry Standard Depth Rack Enclosure
Hexagonal Perforated to Enhance Ventilation Capability
Removable Door(s) and Side Panels
Rear Accessory Channels with Toolless Mounting Slots
Reversible Front Door
Pre-installed Heavy Duty Leveling Feet
Shipping Brackets Included
Rack Row Bolt Hardware Included
Optional Fan Kit for Increasing Ventilation
Adjustable Mounting Depth
Doors and Side Panels with Keyed-alike Locks
Pre-installed Casters
Split Rear Door
Removable Enclosure Roof
Rack U Numbering
Easy Roof Cable Access
Integrated Grounding Points
PCI DSS Compliant
What's in the box:
Mini PC PN63
AC Adapter
Driver DVD (non-OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)

19Inch 45U 22-40Inch depth 4-POST Open Frame Rack, DEPTH ADJUSTABLE, 800KG loading capacity

Features/Specifications:
Rack Height: 45 Units
Equipment Mounting Hole Type: Square
Weight Capacity: 800kg
Maximum Mounting Depth: 101.6
Minimum Mounting Depth: 55.88
Dimensions: 60 x 210.4 x 104.9cm
Adjustable Depth: 59.2 - 104.9cm
Weight: 36.1kg
Certifications: DIN41491 / DIN41494 / EIA/ECA-310-E / IEC 60297-3-100 / RoHS
Warranty: 2 Years

Adjustable Depth Open Frame Rack
Rack U Numbering
Integrated Grounding Points
Toolless Mounting Slots and Included Cable Rings for Cable Management
Heavy Duty Leveling Feet Included

19inch 42U Rack Enclosure, Width: 600mm, Depth: 1070mm depth, hex perforated metal door, with 4 casters, 1300KG loading capacity

Features/Specifications:
Rack Height: 42 Units
Rack Door Type: Perforated Metal Door
Equipment Mounting Hole Type: Square
Weight Capacity: 1365kg
Maximum Mounting Depth: 90.5cm
Dimensions: 60 x 199.2 x 107cm
Weight: 128kg
Certifications: CE / DIN41491 / DIN41494 / EIA/ECA-310-E / IEC 297-2 / RoHS

Industry Standard Depth Rack Enclosure
Hexagonal Perforated to Enhance Ventilation Capability
Removable Doors and Side Panels
Rear Accessory Channels with Toolless Mounting Slots
Reversible Front Door
Pre-installed Heavy Duty Leveling Feet
Shipping Brackets Included
Rack Row Bolt Hardware Included
Optional Fan Kit for Increasing Ventilation
Adjustable Mounting Depth
Doors and Side Panels with Keyed-alike Locks
Pre-installed Casters
Split Rear Door
Removable Enclosure Roof
Rack U Numbering
Easy Roof Cable Access
Integrated Grounding Points
PCI DSS Compliant

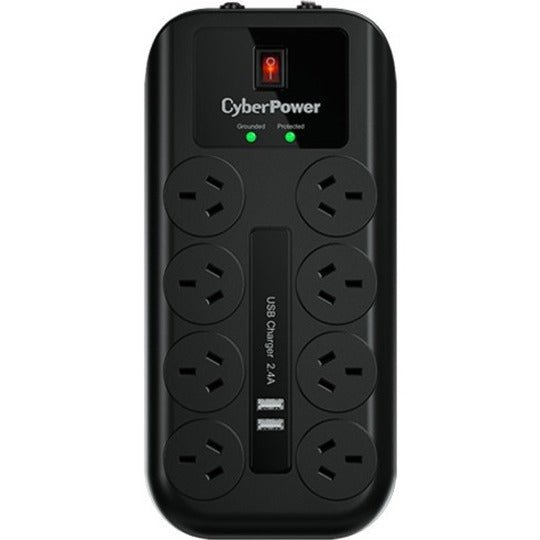

CyberPower CPSURGE08USB-ANZ Surge Suppressor/Protector - 8 x AU, 2 x USB - 2750 J - 230 V AC - Phone, Network - 2 m

CyberPower BRICs II BR700ELCD Line-interactive UPS - 700 VA/390 W - Tower - 8 Hour Recharge - 230 V AC Input - 230 V AC Output - 8 x Schuko Receptacle(s)

CyberPower BRICs LCD BR1000ELCD Line-interactive UPS - 1 kVA/600 W - Wall Mountable - 8 Hour Recharge - 1 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x AU, 1 x USB Receptacle(s) - Serial Port - USB - 4 x Battery/Surge Outlet
Product Brochure

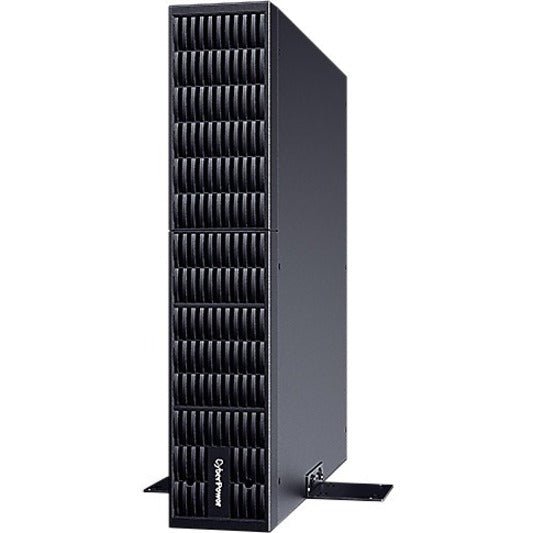

CyberPower BPSE48V40ART2U External Battery Pack - 9000 mAh - 48 V DC - Lead Acid - Sealed/User Replaceable - 2 Hour Recharge Time

CyberPower BRICs LCD BR1200ELCD Line-interactive UPS - 1.20 kVA/720 W - Brick - 8 Hour Recharge - 220 V AC Input - 230 V AC Output - 8 x FR/Schuko Receptacle(s)

CyberPower BPSE72V45A extended battery module significantly extends runtime when used with a compatible CyberPower UPS. With rugged, industrial-grade metal construction, it can be installed even in demanding environments.

Features/Specifications:
Nominal Output Voltage ( Vdc ): 72
Rated Output Current ( A ): 45
Battery Type: Sealed Lead-acid
Battery Quantity ( pcs ): 12
Single Battery Voltage ( V ): 12
Single Battery Capacity ( AH ): 7
Built-in Charger: No
Typical Recharge Time: 10 Hours (Depends on Connected UPS)
Expansion Ready: Yes
Form Factor: Tower
Enclosure Construction: Metal
Dimensions: 196 x 337 x 416mm
Weight: 34.2Kg
Certifications: CE, EAC, LOA

Sealed Lead-acid Batteries
Metal Housing
EBM Expansion Capability

Warranty: 2 Years
Battery Type: Sealed Lead-acid
Built-in Charger: No
Enclosure Construction: Metal
Form Factor: Tower
Battery Quantity: 12
Recharge Time: 10 Hours
Nominal Output Voltage: 72

CyberPower BP48VP2U01 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR750RTXL2U and PR1000RTXL2U.

Features/Specifications:
Nominal Output Voltage ( Vdc ): 48
Rated Output Current ( A ): 60
Battery Type: Sealed Lead-acid
Battery Quantity ( pcs ): 8
Single Battery Voltage ( V ): 12
Single Battery Capacity ( AH ): 7
Built-in Charger: Yes
Typical Recharge Time ( Hours ): 6
Expansion Ready: Yes
Battery Cartridge: RBP0128
Battery Cartridge Quantity ( pcs ): 2
Form Factor: Rackmount, Tower
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 412mm
Weight: 25.3kg
Certifications: CE, FCC Class B, UL, RCM, VCCI

Rack/Tower Convertible Configurations
Built-in charger for Extended Battery Module (EBM)
Hot-swappable Batteries
Metal Housing
Sealed Lead-acid Batteries
User-replaceable Batteries
EBM Expansion Capability

Warranty: 2 Years
Battery Type: Sealed Lead-acid
Built-in Charger: Yes
Enclosure Construction: Metal
Form Factor: Rackmount / Tower
Battery Quantity: 8
Recharge Time: 6 Hours
Nominal Output Voltage: 48
