Gigabyte B850M FORCE WIFI6E V2, AMD AM5, 2 x DDR5 up to 128 GB, 1 x HDMI, 2 x PCI Express x16, 3 x M.2, 5x USB 3.2, 6x USB 2.0, 5GbE LAN

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B850

Memory

Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

(Graphics specifications may vary depending on CPU support.)

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 1 x USB 2.0/1.1 port on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Warranty: 36 months

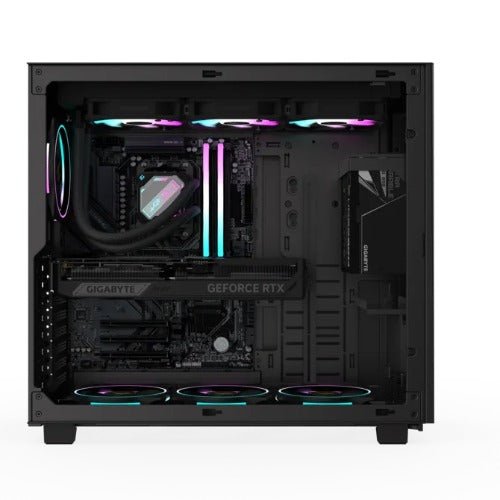

Gigabyte Gaming PC AORUS PRIME 5 A7N8-5103AU, AMD Ryzen 7 9800X3D, B850, GeForce RTX 5080, 32GB (2x16GB) DDR5, 4 x SATA 6.0Gb, Gen4 SSD 2TB

Processor

AMD Ryzen 7 9800X3D,

Chipset

B850 (B850 GAMING WIFI6)

Graphics

Up to NVIDIA GeForce RTX 5080

Memory

32GB (2x16GB) DDR5-5600

SATA

4 x SATA 6.0Gb/s ports

Storage

Gen4 SSD 2TB

Front I/O Ports

Power Button

Audio In

Audio Out

2 x USB 3.0

1 x USB 3.2 Gen 2 Type-C

Rear I/O Ports

1 x DisplayPort

1 x HDMI

4 x USB 2.0/1.1

1 x PS/2 Keyboard/Mouse

1 x USB 3.2 Gen 1 Type-C

2 x USB 3.2 Gen 2 Type-A

3 x USB 3.2 Gen 1

GbE LAN

Wi-Fi 6

3 x Audio Jacks

Expansion Slots

1 x PCIe 5.0 x16 (Occupied)

3 x PCIe 3.0 x1

1 x PCIe 5.0 M.2 2280 (Occupied)

2 x PCIe 4.0 M.2 2280

Network and communication

1Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3

Audio

High Definition 7.1-channel Audio

Operating System

Windows 11 Home

Weight

22Kg (48.5lbs)

Dimensions (W x D x H)

H562x W301x D510mm

Form Factor

ATX

Warranty: 12 months

Gigabyte Gaming PC AORUS PRIME 5 A7N7T-5102AU, AMD Ryzen 7 9800X3D, B850, GeForce RTX 5070ti, 32GB (2x16GB) DDR5, 4 x SATA 6.0Gb, Gen4 SSD 2TB

Processor

AMD Ryzen 7 9800X3D

Chipset

B850 (B850 GAMING WIFI6)

Graphics

Up to NVIDIA GeForce RTX 5070ti

Memory

32GB (2x16GB) DDR5-5600

SATA

4 x SATA 6.0Gb/s ports

Storage

Gen4 SSD 2TB

Front I/O Ports

Power Button

Audio In

Audio Out

2 x USB 3.0

1 x USB 3.2 Gen 2 Type-C

Rear I/O Ports

1 x DisplayPort

1 x HDMI

4 x USB 2.0/1.1

1 x PS/2 Keyboard/Mouse

1 x USB 3.2 Gen 1 Type-C

2 x USB 3.2 Gen 2 Type-A

3 x USB 3.2 Gen 1

GbE LAN

Wi-Fi 6

3 x Audio Jacks

Expansion Slots

1 x PCIe 5.0 x16 (Occupied)

3 x PCIe 3.0 x1

1 x PCIe 5.0 M.2 2280 (Occupied)

2 x PCIe 4.0 M.2 2280

Network and communication

1Gbps Ethernet, Wi-Fi 6, Bluetooth 5.3

Audio

High Definition 7.1-channel Audio

Operating System

Windows 11 Home

Weight

22Kg (48.5lbs)

Dimensions (W x D x H)

H562x W301x D510mm

Form Factor

ATX

Warranty: 12 months

Gigabyte B850M A ELT WF6E, AM5 board with B850 chipset, DDR5 256GB, 16x PCIe5, dual M.2, 2.5GbE, Wi-Fi 6E, DP, rich USB SATA, 7.1 audio support

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

Chipset

AMD B850

Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC (Only for rev. 1.0)

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Realtek® ALC1220 CODEC (Only for rev. 1.1)

* The back panel line out jack supports DSD audio.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty: 36 months

Gigabyte B850M EAGLE WF6E, AMD AM5, 4 x DDR5 up to 256 GB, 1 x HDMI, 1 x PCI Express x16, 2 x M.2, 4 x SATA, 1x USB 3.2

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B850

Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Warranty: 36 months

Gigabyte B760M GAMING PLUS WIFI DDR4, Intel B760, LGA1700 12th–14th Gen, DDR4 128GB, PCIe 4.0 x16, Wi-Fi 6, mATX

Specification:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty: 36 months

Gigabyte B760M GAMING AC DDR4 GEN5, Intel B760, LGA1700 12th–14th Gen, DDR4 64GB, PCIe 5.0 x16, Wi-Fi AC, 2.5GbE, M.2 PCIe 4.0

Specification:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

I/O Controller

iTE® I/O Controller Chip

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 22.5cm

Warranty: 36 months

Gigabyte B760M DS3H WIFI6E GEN5 Intel LGA 1700 mATX Motherboard, 4x DDR5 ~256GB, 1x PCI-E x16, 2x M.2, 4x SATA, 5x USB 3.2, 6x USB 2.0

FEATURES:

PCIe Gen5 Performance : Perfect Sync to Win

Supports Intel® Core™ 14th/ 13th /12th processors

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.

EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design

PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution

Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support

Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax

Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI

Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Memory

14th and 13th Generation Intel® Core™ i9/i7 Processors:

- Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:

- Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x antenna connectors (2T2R)

1 x HDMI port (Note)

2 x DisplayPorts (Note)

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty: 36 months

G.SKILL F5-6000A3038F16GX2-TZ5NXRW 32GB (2 x 16GB)/ DDR5 6000 MT/s/ Timings 30-38-38-32/ Voltage 1.35V/ TZ5 Neo X RGB AMD EXPO ™ ULL

Warranty: 120 months

G.SKILL F5-6000R3036G16GQ4-G5N 64GB (4 x 16GB)/ DDR5 6000 MT/s/ Timings 30-36-36-96/ Voltage 1.4V/ EXPO

Memory Type

DDR5

Capacity

64GB (16GBx4)

Multi-Channel Kit

Quad Channel Kit

OC Profile Support

AMD EXPO

Tested Speed (Up To) (EXPO)

6000 MT/s

Tested Latency (EXPO)

30-36-36-96

Tested Voltage (EXPO)

1.40V

Registered/Unbuffered

Registered

Error Checking (ECC)

Side-Band ECC + On-Die ECC

SPD Speed (Default)

4800 MT/s

SPD Voltage (Default)

1.10V

Fan Included

No

Warranty

Limited 5 Year Warranty

Features

AMD EXPO Profile Ready

Warranty: 120 months

Gigabyte B550M H ARGB Micro-ATX AMD B550 motherboard with AM4 support, PCIe 4.0, DDR4 up to 5100MHz OC, HDMI 2.1, DP 1.4, M.2, and Gigabit LAN

Micro-ATX Motherboard Specifications (AMD B550)

•

Socket / CPU: AM4

•Ryzen 3000 / 4000G / 5000 / 5000G

•

Chipset: AMD B550

•Memory:

•

2× DDR4, up to 64 GB (Dual-Channel)

•

2133–5100 MHz (OC)

•XMP support, ECC (non-ECC mode) / Non-ECC

•

Integrated Graphics:

•DisplayPort 1.4 – up to 5K@60Hz

•HDMI 2.1 – up to 4K@60Hz

•
Max shared memory: 16 GB

•

Expansion Slots:

•

1× PCIe x16 (Gen 4.0 / 3.0)

•1× PCIe 3.0 x1

•Storage:

•

1× M.2 (PCIe 4.0 / 3.0)

•4× SATA 6Gb/s

•RAID 0 / 1 / 10

•

Networking:

•

Realtek Gigabit LAN

•Audio:

•

Realtek HD Audio, up to 7.1-channel

•USB:

•4× USB 3.2 Gen 1 (rear)

•USB 3.2 Gen 1 & USB 2.0 headers

•Internal Headers:

•24-pin ATX, 8-pin CPU power

•CPU fan + 2× system fan

•RGB Gen2 & RGB headers

•TPM, Clear CMOS

•Back Panel I/O:

•DisplayPort, HDMI

•USB 3.2 Gen 1, USB 2.0

•
Q-Flash Plus button

•RJ-45 LAN, Audio jacks

•BIOS:

•AMI UEFI, 128 Mbit

•

Q-Flash & Q-Flash Plus

•OS Support: Windows 10 / 11 (64-bit)

•

Form Factor: Micro-ATX (23.3 × 19.8 cm)

Warranty: 36 months

G.SKILL F5-6000R3036G32GQ4-G5N 128GB (4 x 32GB)/ DDR5 6000 MT/s/ Timings 30-36-36-96/ Voltage 1.4V/AMD EXPO/ G5 Neo

The G5 Neo series memory kits are overclocked performance DDR5 R-DIMM memory designed for use in compatible AMD workstation systems. Featuring AMD EXPO memory overclock profile and ECC support, the G5 Neo series is the ultimate overclocked performance memory solution for high-end AMD workstation platforms.

Memory Type

DDR5

Capacity

128GB (32GBx4)

Multi-Channel Kit

Quad Channel Kit

OC Profile Support

AMD EXPO

Tested Speed (Up To) (EXPO)

6000 MT/s

Tested Latency (EXPO)

30-36-36-96

Tested Voltage (EXPO)

1.40V

Registered/Unbuffered

Registered

Error Checking (ECC)

Side-Band ECC + On-Die ECC

SPD Speed (Default)

4800 MT/s

SPD Voltage (Default)

1.10V

Fan Included

No

Warranty

Limited 3 Year Warranty

Features

AMD EXPO Profile Ready

Warranty: 120 months

Gigabyte AORUS Gen5 14000 SSD 1TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 2GB 13600/10200MB/s 80×22×3.5mm MTBF1.6M 11.5W 5yr/700TBW

Interface PCI-Express 5.0x4, NVMe 2.0

Form Factor M.2 2280

Total Capacity 1000GB

NAND 3D TLC NAND Flash

External DDR Cache LPDDR4 2GB

Sequential Read speed Up to 13,600 MB/s

Sequential Write speed Up to 10,200MB/s

Dimension 80 x 22 x 3.5 mm

Mean time between failure (MTBF) 1.6 million hours

Max. Operating Power Read : 11.5W; Write : 11.5W

Power Consumption (Idle, PS3) < 144mW

Power Consumption(PS4, L1.2) < 85mW

Temperature (Operating) 0°C to 70°C

Temperature (Storage) -40°C to 85°C

Warranty

1. Limited 5-years or 700TBW.

2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Warranty: 60 months

G.SKILL F5-6000A2836G16GX2-TZ5NXRW 32GB (2 x 16GB)/ DDR5 6000 MT/s/ Timings 28-36-36-32/ Voltage 1.4V/ TZ5 Neo X RGB AMD EXPO ™ ULL

Warranty: 120 months

G.SKILL F5-6000A2636H16GX2-TZ5NXRW 32GB (2 x 16GB)/ DDR5 6000 MT/s/ Timings 26-36-36-32/ Voltage 1.45V/ TZ5 Neo X RGB AMD EXPO ™ ULL

Warranty: 120 months

G.SKILL F5-6000A2636H16GX2-TZ5NXRN 32GB (2 x 16GB)/ DDR5 6000 MT/s/ Timings 26-36-36-32/ Voltage 1.45V/ TZ5 Neo X RGB AMD EXPO ™ ULL

Warranty: 120 months

G.SKILL F5-6000A2636H16GX2-TZ5NXRK 32GB (2 x 16GB)/ DDR5 6000 MT/s/ Timings 26-36-36-32/ Voltage 1.45V/ TZ5 Neo X RGB

Warranty: 120 months

G.SKILL F4-2666C19D-64GVK 64GB (2 x 32GB)/ PC4-21300 / DDR4 2666 Mhz/ Timings 19-19-19-43/ Voltage 1.20V/ Ripjaws V

Memory Type

DDR4

Capacity

64GB (32GBx2)

Multi-Channel Kit

Dual Channel Kit

OC Profile Support

None

Tested Speed (Up To) (SPD)

2666 MT/s

Tested Latency (SPD)

19-19-19-43

Tested Voltage (SPD)

1.20V

Registered/Unbuffered

Unbuffered

Error Checking (ECC)

Non-ECC

SPD Speed (Default)

2666 MT/s

SPD Voltage (Default)

1.20V

Fan Included

No

Warranty

Limited Lifetime

Warranty: 120 months

For Corsair PSU - Elite Premium Individually Sleeved Type-4 PSU Cables Starter Kit - White

•Triple-layer mesh paracord design

•Low-profile cable combs

•Available in three color options

•Works with CORSAIR power supplies with Type-4 cables

COLOR: White

EDITION: STARTER KIT

Tech Specs

Cable Type Type 4

Warranty 2 Year

Weight 0.58kg

Warranty: 12 months

Synology Enterprise Storage HDD 4TB, Internal, 3.5' SATA ,HAT5320-4T

Warranty: 60 months

Synology Plus Series HDD 16TB, Internal 3.5' SATA, 7200RPM,3 Year Warranty

Compatible models:

25 Series - DS225+, DS725+, DS425+, DS925+, DS1525+, DS1825+

24 series: DS224+, DS124

23 Series: RS2423RP+, RS2423+, DS1823xs+, DS923+, DS723+, DS423+, DS423, DS223, DS223j

22 series: RS822RP+, RS822+, RS422+, DS3622xs+, DS2422+, DS1522+, DVA1622

21 series: RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+, DVA3221

20 series: RS820RP+, RS820+, DS1520+, DS920+, DS720+, DS420+, DS420j, DS220+, DS220j, DS120j

19 series: RS1219+, RS819, DS2419+II, DS2419+, DS1819+, DS119j, DVA3219

18 series: DS1618+, DS418, DS418j, DS218, DS218play, DS218j, DS118

Capacity 16TB

Rotation Speed 7200

SATA 6Gb/s

Warranty- 3 Year Limited

Warranty: 36 months

Synology Enterprise Storage HDD 8TB, Internal, 3.5' SATA ,HAT5320-8T, 5-year warranty, reliable hard drives for Synology systems

Warranty: 60 months

For Corsair PSU - Elite Premium Individually Sleeved Type-4 PSU Cables Starter Kit - Black

•Triple-layer mesh paracord design

•Low-profile cable combs

•Available in three color options

•Works with CORSAIR power supplies with Type-4 cables

COLOR: Black

EDITION: STARTER KIT

Tech Specs

Cable Type Type 4

Warranty 2 Year

Weight 0.58kg

Warranty: 12 months

Fanvil W620W Portable Wi-Fi Phone

LINKVIL W620W is a portable enterprise-grade Wi-Fi IP phone, specifically designed to meet modern mobile office requirements. Built-in Bluetooth 5.0 and dual-band 2.4GHz/5GHz Wi-Fi 6, combined with advanced seamless roaming technology, it delivers stable and efficient communication performance even in dynamic wireless network environments.

W620W supports 6-way voice conferencing and a 1.8-meter drop-resistant design. Additionally, it features a high-definition speaker and a high-sensitivity dual-microphone system with dual-mic noise reduction algorithms, ensuring crystal-clear calls even in noisy environments.Powered by a built-in 3000mAh high-capacity battery, it offers up to 13 hours of talk time and 240 hours of standby time, significantly enhancing work continuity and flexibility.Ideal for various mobile office scenarios such as office buildings, hotels, shopping malls, and security patrols, the W620W is the perfect choice for enterprises looking to improvemobile communication efficiency

Highlights

- 2.4' 240 x 320 color screen with intuitive user interface

- Built-in dual-band Wi-Fi 6 (2.4GHz/5GHz) delivers superior anti-interference capability and faster speeds

- Supports batch deployment: One device connects to the network, and multiple devices can share access without passwords

- Dual-microphone noise reduction effectively suppresses ambient noise, ensuring a clear call experience

- The side-mounted PTT button enables one-key intercom for fast and efficient audio transmission

- Equipped with a 3000mAh high-capacity removable battery, it delivers long-lasting performance with up to 13 hours of talk time and 240 hours of standby time

Warranty: 24 months

Fanvil V66PRO-HP Handset Cord – RJ9 Coiled, 2 Meter

- Compatibility: Specifically designed for the Fanvil V66PRO-HP IP Phone handset.

- Connector Type: RJ9 standard handset connector (fits most IP desk phones).

- Length: 2 meters coiled (extends comfortably for desk use).

- Features:

- Durable coil design with reinforced strain relief.

- Antibacterial surface coating for hygiene in shared office environments.

- Flexible and tangle‑resistant for daily business use.

- Use Case: Connects the wired handset to the V66PRO-HP phone body, supporting hybrid corded/cordless operation.

Warranty: 24 months

Fanvil V66 Pro Premium IP Phone

The Fanvil V66 Pro is a premium IP phone with a color display, built for advanced business professionals seeking efficient and seamless communication. Featuring a sleek, unique design, the V66 Pro boasts a 7-inch high-definition color “floating smart screen' and delivers ultra-clear, high-quality audio. Equipped with Bluetooth 5.4, dual-band Wi-Fi (2.4G/5G), and support for Wi-Fi 6, it ensures robust connectivity. Combined with a Bluetooth wireless handset, the V66 Pro offers an exceptional interactive experience, making real-time communication smoother and more comfortable.

Fanvil V66 Pro Premium IP Phone Features & Specifications:

20 SIP lines

HD voice

Support receiving Video call

Dual Gigabit ports， PoE enabled

7-inch (1024x600) color screen

Handset / hands-free / headset mode

Intelligent DSS keys(Virtual buttons)

Desktop stand / wall-mounted (optional)

Optional external power supply

Hall-effect sensor switch handset

Bluetooth wireless handset

and more!

Warranty: 24 months

Fanvil V60P is a sleek and reliable basic level IP phone. It features a 2.4 inch (320x240) color screen, supporting 4 SIP lines, HD voice, and 6 way audio conferencing, offering a clear and intuitive user experience to easily meet multi party collaboration needs. Additionally, it supports PoE power supply for simplified installation and deployment, providing users with an efficient and high quality business communication experience.

Highlights:

2.4 inch color screen.

Support audio codec G.722 and Opus, HD audio on speakerphone and handset.

Support 6 way Audio Conference.

Available to link with security products, can be easily customized into various security solutions for reducing investment.

Fast Ethernet 10/100Mbps Ethernet, integrated PoE.

HAC HD voice handset and full duplex hands free speaker hardware configuration to provide users with an outstanding audio experience.

Two installation methods of desktop stand and wall mountable.

Compatible with EHS headset.

Warranty: 24 months

Fanvil KT10 is a compact, battery‑free wireless emergency button that uses kinetic energy harvesting technology, making it highly reliable for healthcare, elder care, and safety environments. It communicates via 433MHz radio frequency, is waterproof, and can last for over 100,000 presses.

📱 Key Features

•Power Supply: Self‑powered (no battery required) thanks to micro‑energy harvesting technology.

•Design: Rebound‑type button, extremely compact and lightweight.

•Durability: ABS material, waterproof and dustproof (IP65).

•Compatibility: Works with Fanvil Y501/Y501‑Y series, X305 Big Button IP Phone, and i506W/i507W indoor stations.

•Wireless Specs:

-Frequency: 433MHz

-Modulation: FSK

-Protocol: Ebelong 1.1

•Operating Life: ≥100,000 presses.

•Range:

Outdoors: up to 80 m

Indoors: up to 25 m

•Temperature Range: –20°C to +55°C.

Warranty: 24 months

LINKVIL by Fanvil DECT Phone Base W710D

The LINKVIL by Fanvil W710D DECT IP base station is ideal for small to medium businesses, supporting up to 10 Linkvil by Fanvil W610D DECT handsets for flexible, wireless communication. It eliminates the need for extra wiring and allows internal communication without a SIP account. The system supports 20 SIP accounts and up to 10 simultaneous calls, delivering reliable, high-quality voice service in high-density environments.

LINKVIL by Fanvil DECT Phone Base W710D Features & Specifications:

Supports up to 10 W610D handsets

Up to 20 simultaneous calls

Up to 20 SIP accounts

10 internal extensions

Wireless signal coverage up to 50 meters indoors and 300 meters outdoors

and more!

Warranty: 24 months

LINKVIL by Fanvil DECT Phone W620D

The LINKVIL W620D is a stylish, portable cordless phone using DECT technology, perfect for mobile communication. With built-in Bluetooth 5.0, it pairs seamlessly with the Fanvil W710D IP Base Station for stable, efficient communication across wireless networks, perfect for small and medium-sized businesses. Equipped with a 3000mAh rechargeable battery, it offers up to 13 hours of talk time or 240 hours of standby. Ideal for small to medium businesses, shopping malls, residential areas, hotels, and warehouses, the W620D delivers a high-quality mobile communication experience.

LINKVIL by Fanvil DECT Phone W620D Features & Specifications:

2.4' colour LCD screen

16 DSS keys + 1 PPT key

Built-in Bluetooth 5.0

Drop-safe from 1.8-meter height

Supports incoming call vibration

13 hours of talk time

G722, Opus

Comes with charging base, belt clip, power adapter

Compatible with EPYGI - a leading provider of IP PBX systems and VoIP gateways

Compatible with 3CX - a powerful software-based IP PBX for unified communications and VoIP management

Warranty: 24 months
