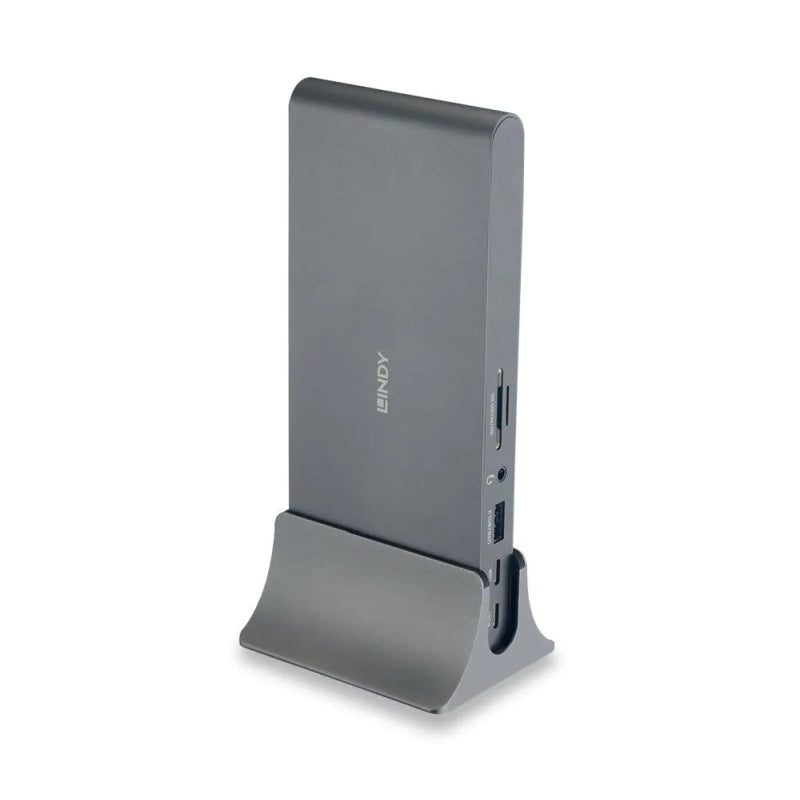

Feature packed docking station designed to deliver unrivalled video output. Housed in an aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.
Features/Specifications:
Interface: USB Type C to 3 x USB Type A / 1x USB Type C / 1x RJ45 / 2x DisplayPort / 1x HDMI / 1x SD ; 1x MicroSD / 1x 3.5mm audio
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0 | Gigabit LAN | DP 1.4 | HDMI 2.0 | SD/TF 3.0 | 3.5mm Audio (combo)
Supported Bandwidth: 5 Gbps | 10/100/1000 Mbps
Maximum Input Resolution: 7680x4320@60Hz
Maximum Output Resolution: Single Display: 5120x2880 60Hz (DP) ; 3840x2160 60Hz (HDMI) | Dual Displays: 5120x2880 60Hz (DP) ; 3840x2160 30Hz (HDMI)
Triple Displays: 3480x2160 30Hz (HDMI) ; 3480x2160 60Hz (DP) ; 2560 x1440 60Hz (DP) or 3480x2160 30Hz (HDMI) ; 4K 60Hz (DP) ; 4K 30Hz (DP)
Chipset: VL103R | VL170 | VL817 | VL815 | VMM5320 | RTL8153B | GL3224 | HS-100B | T25S40 | GD25Q40
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support.
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 2.2
Supported Audio: Supports Audio 7.1 Channel
Separate Audio Ports: 1 x Audio combo port 3.5mm
Special : DisplayPort Alternate Mode | 1x Battery Charging 1.2 port | Supports MST for Windows | PXE (Preboot Execution Environment) and Wake on LAN (WOL) support
Inputs: 1 x USB Type C (Female)
Outputs: 3 x USB Type A (Female) | 1 x USB Type C (Female) | 1 x RJ45 (Female) | 2 x DisplayPort (Female) | 1 x HDMI (Female) | 1 x SD (Female) | 1 x MicroSD (Female) | 1x 3.5mm audio jack
Power Supply: 5.5/2.5mm DC socket | 1 x USB Type C (Female) PD port
Dimensions WxDxH: 180 x 77 x 18mm
Housing Material: Aluminium
Net Weight: 0.439kg
Power Requirements: 24W
Packaging Dimensions: 200 x 120 x 70mm
Gross Weight: 0.78kg
Warranty (Years): 2
Certificated: CE | FCC | REACH ; RoHS | California Proposition 65

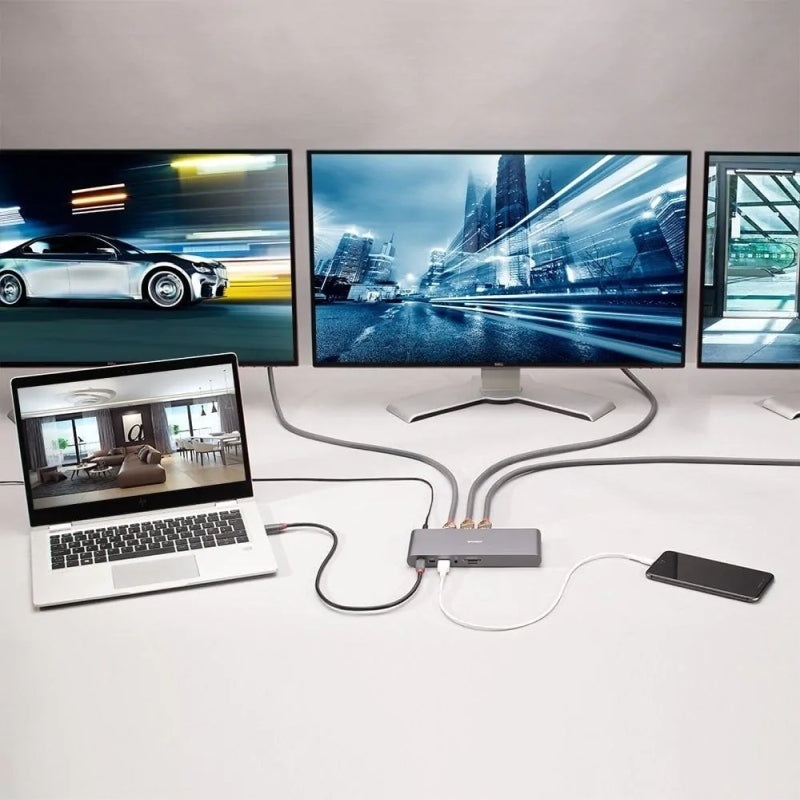

Connects an HDMI and/or up to 2 DisplayPort displays, USB peripherals and power over a single cable
Supports 5K 60Hz for a single DisplayPort display or 4K 60Hz for a single HDMI display
Integrated 4 port USB SuperSpeed 5Gbps Hub (3 x Type A | 1 x Type C)
USB Power Delivery capable up to 100W
Extend your Displays
Added Connectivity
Plug-and-Play
2 year warranty
Output Port: HDMI
Output Port: DisplayPort
Output Port: USB-C
Output Port: Network
Output Port: USB-A
Output Port: Audio
