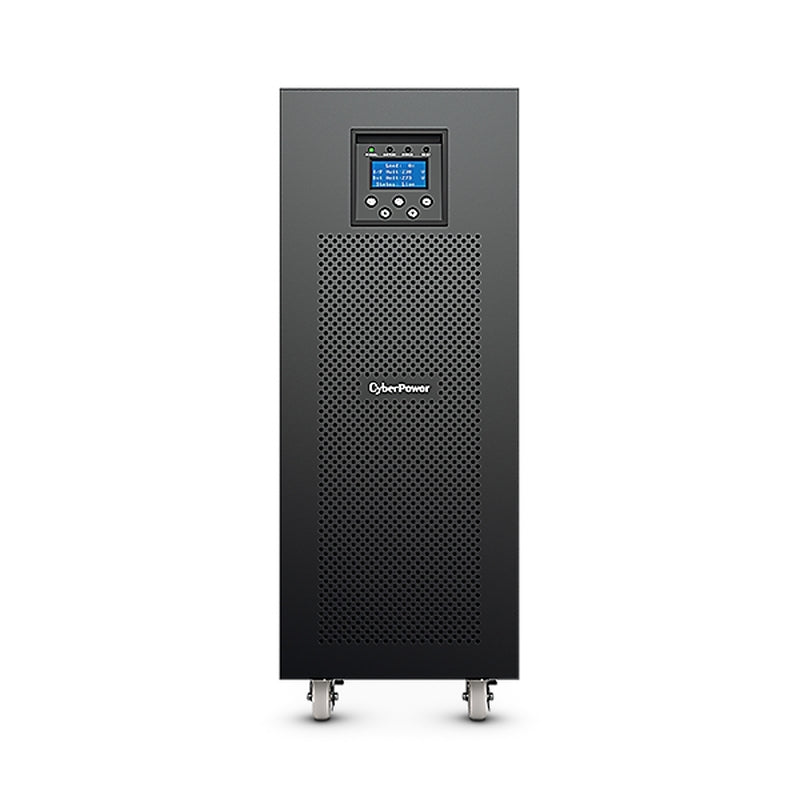

CP 6000VA/5400W Tower UPS
Features/Specifications:
Phase: Single Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 96%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 110 - 276
Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac
Input Frequency ( Hz ): 50 ± 5 | 60 ± 6
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 27.3
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
Capacity (VA): 6000
Capacity (Watts): 5400
On Battery Waveform: Pure Sine Wave
On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1%
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec
Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
Harmonic Distortion (Linear Load): THD?2%
Harmonic Distortion (Non-linear Load): THD?5%
Internal Bypass: Automatic Bypass, Manual Bypass
Maintenance Bypass: Yes
Outlet(s) - Total: 1
Outlet Type: Hardwire Terminal Block x 1
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 18
Runtime at Full Load ( min ): 7
Typical Recharge Time ( Hours ): 7
Maximum Charging Current ( A ): 1
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Compatible Extended Battery Module (EBM): BPSE240V47A
Max. EBM Quantity ( pcs ): 15
Surge Suppression ( Joules ): 445
EMI/RFI Filtration: Yes
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Dimensions: 260 x 708 x 550mm
Weight: 70kg
Online Thermal Dissipation ( BTU/hr ): 1603
Audible Noise at 1.5M from Surface of Unit: 60 dBA
Certifications: CE / RoHS
Warranty: 2 Years
Online (Double Conversion) UPS Topology
Generator Compatible
Maintenance Bypass Switch
Smart Battery Management (SBM)
Surge and Spike Protection
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
What's in the box?
1 x OLS6000E UPS
1 x Parallel Port Cover Plate
1 x Terminal Cover
1 x Terminal Splices
1 x USB Cable
1 x User's Manual
