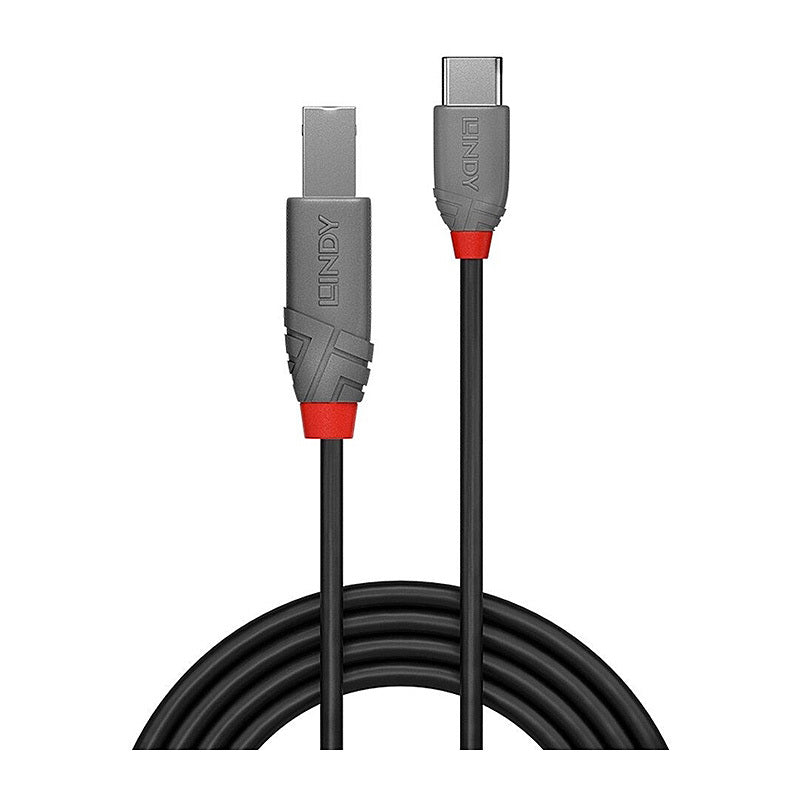

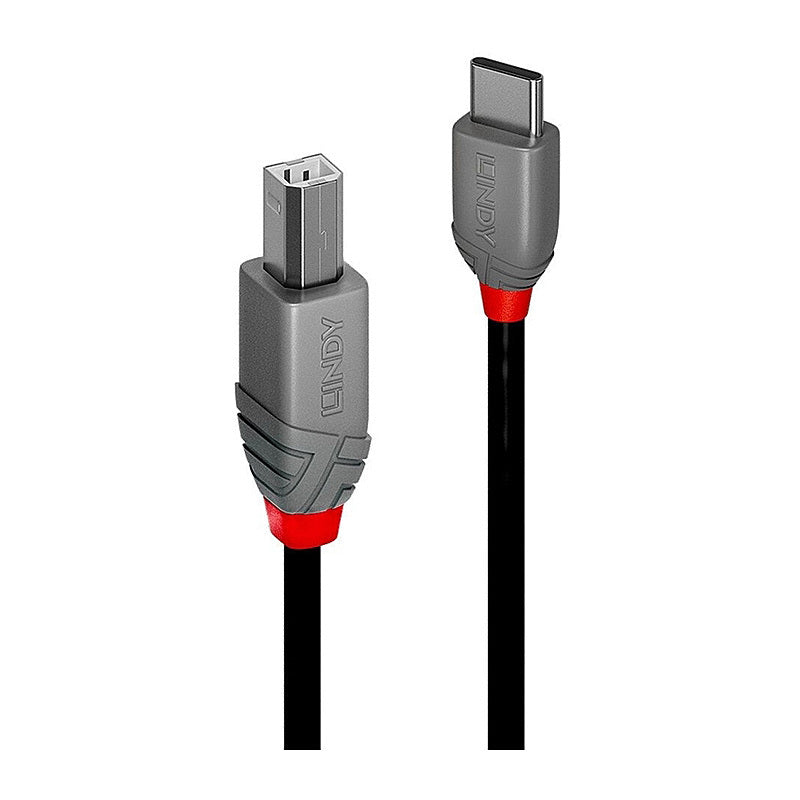

3m USB 2.0 Type C to B Cable, Anthra Line
Features/Specifications:

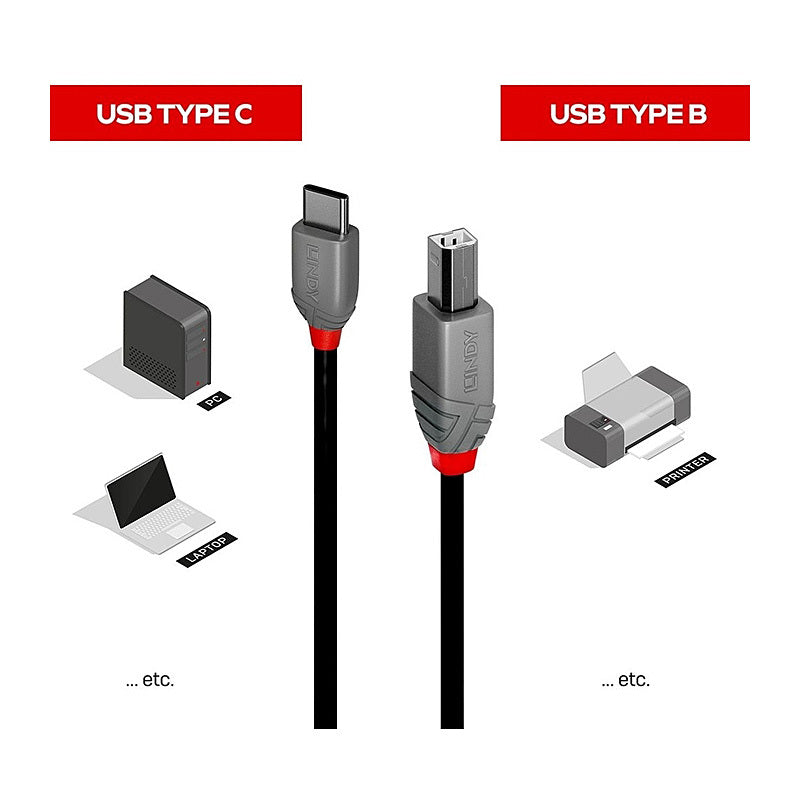

Professional choice USB 2.0 Type C to B cable for commercial and high-performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold-plated contacts
Double-shielded cable, corrosion-resistant tinned copper conductors
10-year warranty
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 1-400MHz < 5.8dB
Minimum Band Radius: 25mm (0.98in)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: 0°C - 70°C (32°F - 158°F)
Connectors
Connector A: USB 2.0 Type C Male
Connector B: USB 2.0 Type B Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction:
C: High conductivity copper
B: Brass
Pin Plating: Gold
Dimensions (approx.) WxDxH:
C: 10.9x28.3x7.2mm (0.43x1.11x0.28in)
B: 11.8x47x10.2mm (0.46x1.85x0.4in)
Cable Construction
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge Power: 26AWG
Conductor Gauge Data: 28AWG
Shielding: Aluminium Magnesium Braid 65%
Shielding in connector headshell: Copper foil
Miscellaneous:
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, California Proposition 65, UL
