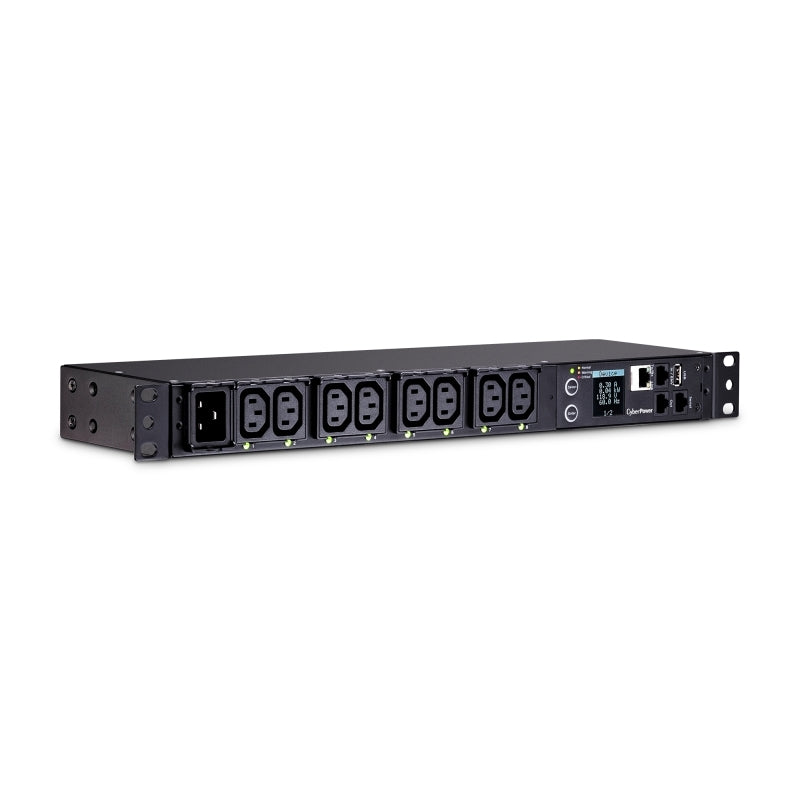

CP Switched MPO ePDU 16Amp
Features/Specifications:
Phase: Single Phase
Nominal Input Voltage ( Vac ): 100 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 16
Input Connector Type: IEC C20 x 1
Power Cord Length: 3.05
Output Voltage ( V ): Depends on Input
Idle Power Consumption ( W ): < 5
Outlets - # of Bank(s): 1
Outlet(s) - Total: 8
Outlet(s) - Front: 8
Outlet Type: IEC C13 x 8
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hot-swappable LCD Module: Yes
Auto LCD Orientation: Yes
LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Tx/Rx | Link | Outlet
Outlet Metering Capability: ± 1%
A-type USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Installed Rack Height (U): 1
Form Factor: 1U Vertical Rackmount | 1U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 2 Set (L-short | L-long)
Dimensions: 433 x 44 x 112mm
Weight: 2.1kg
Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A | RoHS
Warranty: 2 Years
Real-time Local/Remote Monitoring and Switching of Individual Outlet
Work under High Temperature
±1% Measurement Accuracy
Digital Real-time Load Display
Hot-swappable LCD Design
LED Status Indicator
Supports ENVIROSENSOR
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Ultra Low Power Consumption
Industrial-grade Metal Housing
User Configurable Color LCD
Rotatable LCD for Proper Display Orientation
Firmware Upgrade via USB
User-upgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking
What's in the box?
1 x PDU81005
1 x User Manual
1 x Cord Retention Tray
1 x Mounting Brackets
1 x Cable Ties
1 x Screw Kit
1 x Power Cord
1 x Serial Cable
