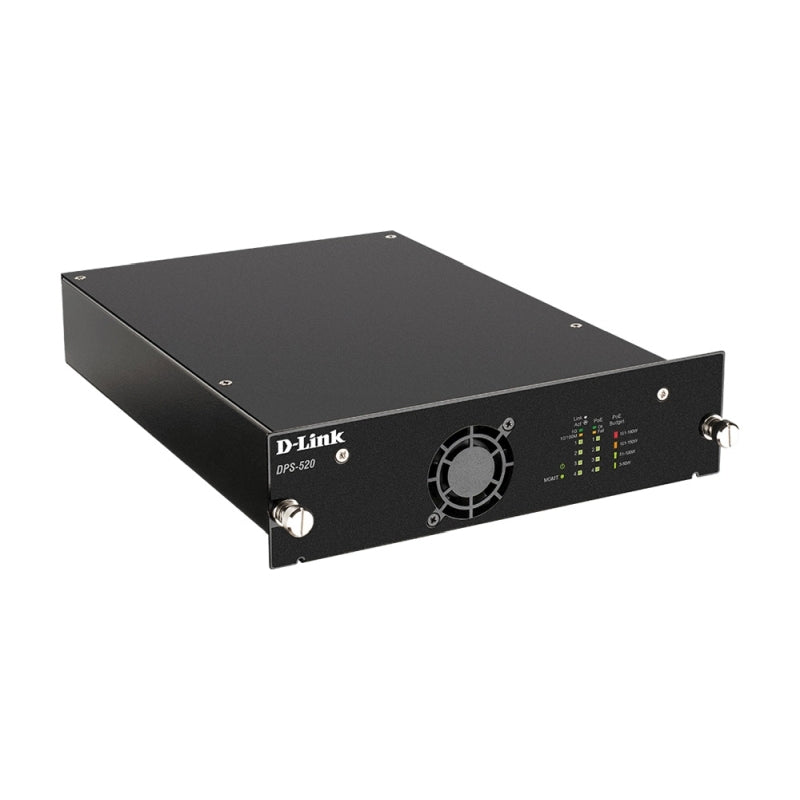

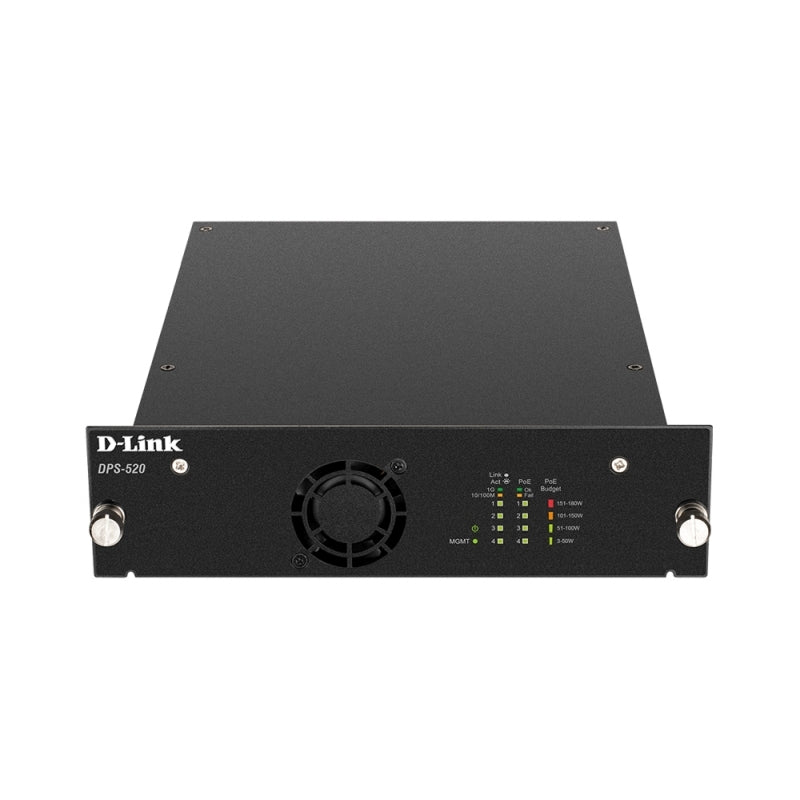

180W PoE Redundant Power Supply
Features/Specifications:
Hardware Version A1

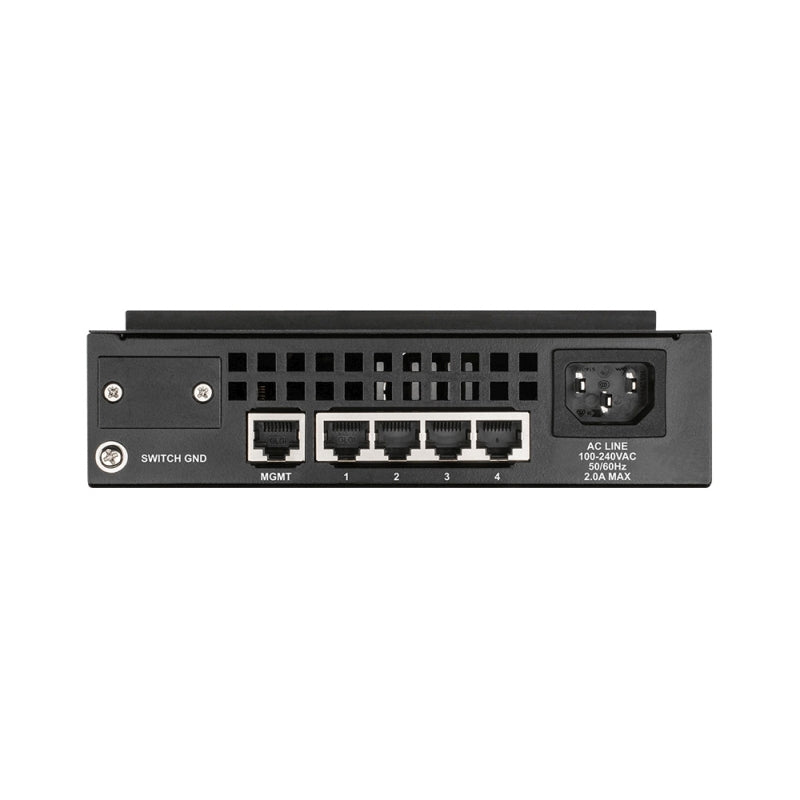

Interfaces: 4 x 10/100/1000BASE-T PoE ports, 1 x 10/100/1000BASE-T MGMT port
Dimensions: 196 x 257 x 52 mm
Panel size: 196 x 52 mm
Weight: 1.51 kg
Power Budget: 90 W per port, 180 W total power budget
Input Voltage Range: 90 to 264 V AC
Input Frequency: 47 to 63 Hz
Operating Temperature: 0 to 50 °C
Storage Temperature: -45 to 85 °C
Operating Humidity: 10 to 90% RH
Storage Humidity: 10 to 95% RH
MTBF: 53,858 hours
Cost-effective solution that supports up to four switches
Provide backup power for the switchÂ’s built-in power supply
Over-current protection
LED status indicators
Automatically discover connected PD devices and immediately deliver power
Give network administrators the power to define
failover policies with RPS port priority
Stay informed and monitor your devices with the status reporting through a web GUI on any Internet browser
Can be installed as a stand-alone power supply unit or
mounted in a 19-inch multi-slot chassis
Connect to the RPS with a standard CAT-5e cable
Up to 100 m connection distance
