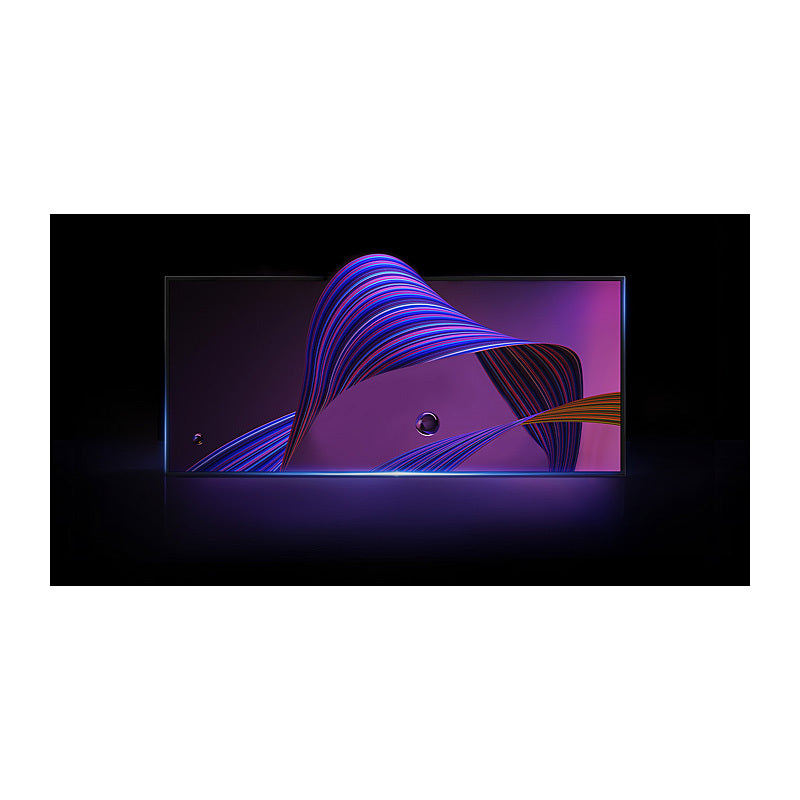

92''5K Display, 21:9, support portrait mode, Android 13, 8G+64G, 2x20W+20W speaker system, MAXHUB OS, 600nits, VESA 800x600, PIR sensor, support OPS62/72 windows system, 24x7 operating hours
Features/Specifications:
The panoramic viewing angle, large size, and 5K definition blend together to create a display that seamlessly matches the demands of hybrid working, commercial display, command ; control, and a host of other professional situations.
92'' 5K (5120x2160) Resolution display
21:9 Aspect Ratio
600 Nit
Ultra-wide panoramic vision
Portrait and Landscape mode
Empowered by Microsoft Teams Rooms
8GB Ram, 64GB Rom
Maxhub Meeting OS V6 System
Display
Model: UW92NA
Screen Size (Inch): 92
Aspect Ratio: 21:9
Panel: VA
Backlight: DLED
Brightness: 600 nits
Haze: 25%
Resolution: 5120 × 2160
Refresh Rate: 60Hz
Contrast Ratio: 5000:1 (typ.)
Viewing Angle (H / V): 178° / 178°
Display Orientation Landscape / Portrait
Operation Hours (Hours / Day): 24 / 7
Response Time: 6.5ms
Life Time (50%): =50,000 hours
Built-in System
Operating System: Android 13.0
CPU: A76 × 4 + A55 × 4
GPU: Mali-G610 MP4
RAM: 8 GB
ROM: 64 GB
System OS: MAXHUB Meeting OS V6
Screen share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast
Device Management: MAXHUB Pivot
Protocal Control: RS232 / IP control
Special : Screen rotation / Auto input change / Play via URL / Wake on LAN / HDMI CEC / Compatible with control systems (Crestron, Q-SYS, and Extron)
Connectivity
Input:
HDMI IN × 4 - HDMI 2.0 × 3, HDMI 2.1 × 1
USB 2.0 × 1
USB 3.0 × 4
USB Type-C × 1
DP IN × 1
AUDIO IN × 1
RS232 × 1
RJ45 IN × 1
Output
HDMI OUT × 1
TOUCH 2.0 × 3
AUDIO OUT × 1
SPDIF × 1
RJ45 OUT × 1
OPS Slot: Module slot × 1
Wi-Fi: Wi-Fi 6
Bluetooth: 5.2
Audio:
Sound Channel: 2.1
Speaker Power: 2 × 20W + 20W
Power:
Power Supply: 100-240V~50/60Hz
Power Consumption (Energy Saving): 177 W
Power Consumption (Typ.): 320 W
Power Consumption(Max.): 530 W
Physical
Bezel Width (L × R × T × B): 17.9 / 17.9 / 17.9 / 17.9 mm
0.7 / 0.7 / 0.7 / 0.7 inch
Dimension(W*H*D): 2182 × 944 × 85 mm
85.90 × 37.16 × 3.35 inch
Shipping Dimension(W*H*D): 2360 × 1072 × 225 mm
92.91 × 42.20 × 8.86 inch
VESA: 800 × 600 mm
Net Weight: 43.40 Kg
Gross Weight: 62.60 Kg
Environmental Conditions
Operating Temperature: 0°C~40°C
Storage Temperature: -20°C~60°C
Operating Humidity: 10%~90%RH
Storage Humidity: 10%~90%RH
Certification
Energy Star: Y
IP Rating: IP5X
Warranty:
Display: 3 years warranty
Accessories
Power Cord
HDMI Cable
Remote Control
Wall Mount
Wireless Adapter
Optional Module
OPS: OPS62A / OPS72A
Mobile Stand: ST41B / ST23C
