With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS422 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail, IT and digital signage scenarios.
Features/Specifications:
Interface: USB to RS422 Serial
Interface Standard: USB 1.1, RS422
Supported Bandwidth: 12Mbps, up to 3Mbaud
Chipset: FTDI FT231XS
Compatibility: USB Type A-equipped computers
Inputs: 1 x USB Type A (Male)
Outputs: 1 x RS422 9 way (Male)
Power: Bus-powered
Dimensions WxDxH: 33x55x14mm / RS422, 14x39x8mm / USB
Cable Length: 1m
Housing Material: Plastic
Net Weight: 0.077kg
Operating Temperature: 0C - 50C
Storage Temperature: -20C - 70C
Humidity: 0 - 80% RH (non-condensing)
Colour: Grey
Packaging Type: Polybag
Gross Weight: 0.152kg
Warranty: 2
Certificated: CE, FCC, RoHS & REACH
Connects to any serial RS422 device via USB Type A

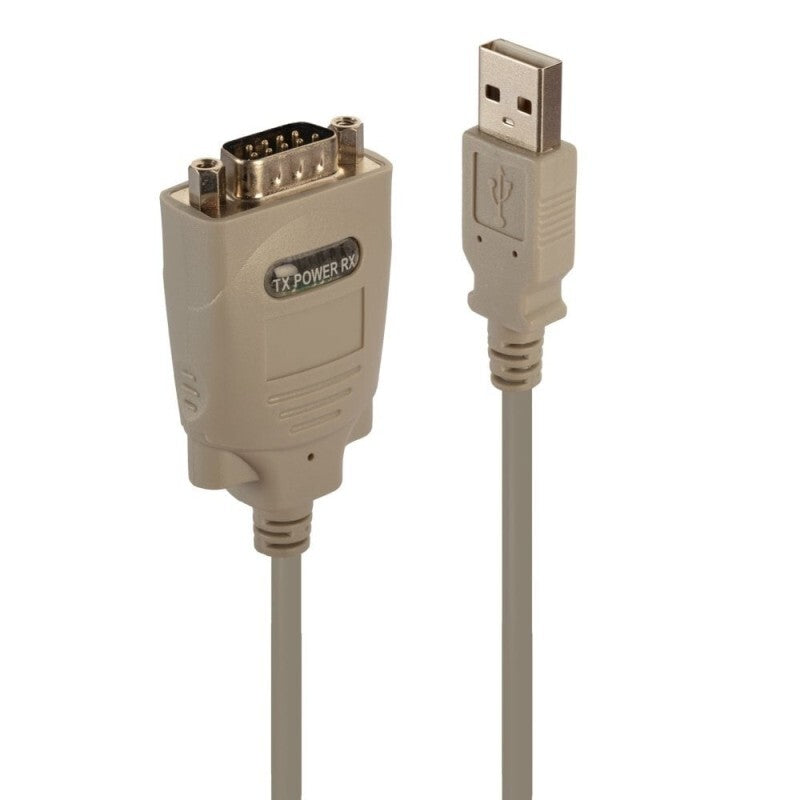

9 Way D Male to USB A Male connectors
Plug & Play - USB bus-powered with no external power supply required
Compatible with Windows, Mac and Linux operating systems
2-year warranty
Input Port: USB-A
Output Port: DB9
