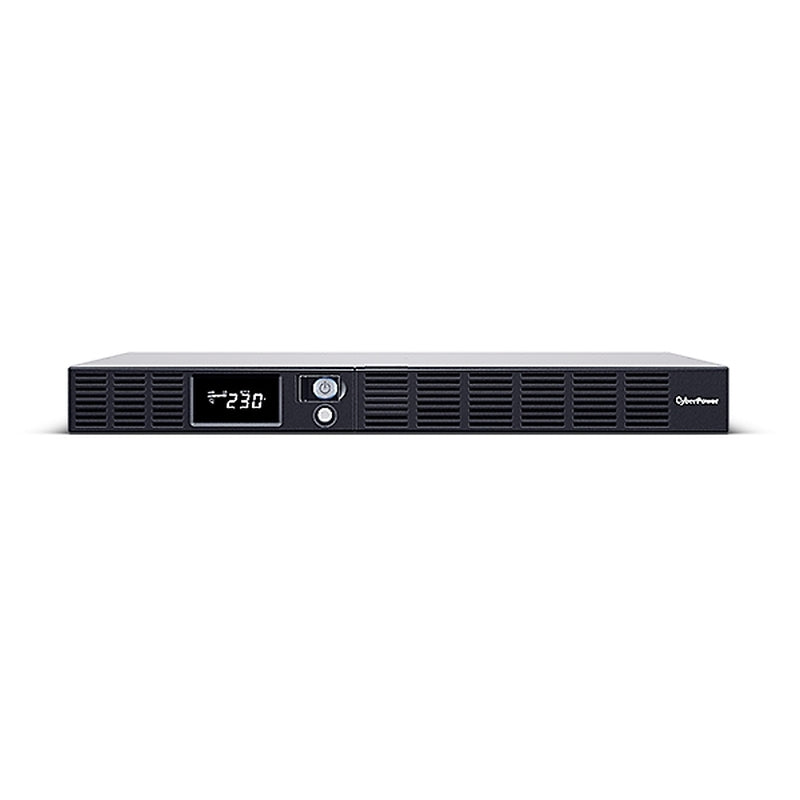

CP Smart App Rack 1500VA UPS
Features/Specifications:
Phase: Single Phase
Form Factor: Rackmount
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 165 - 271
Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 x 1
Power Cord Length: 1.83m
Capacity (VA): 1500
Capacity (Watts): 900
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.6
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting | Circuit Breaker

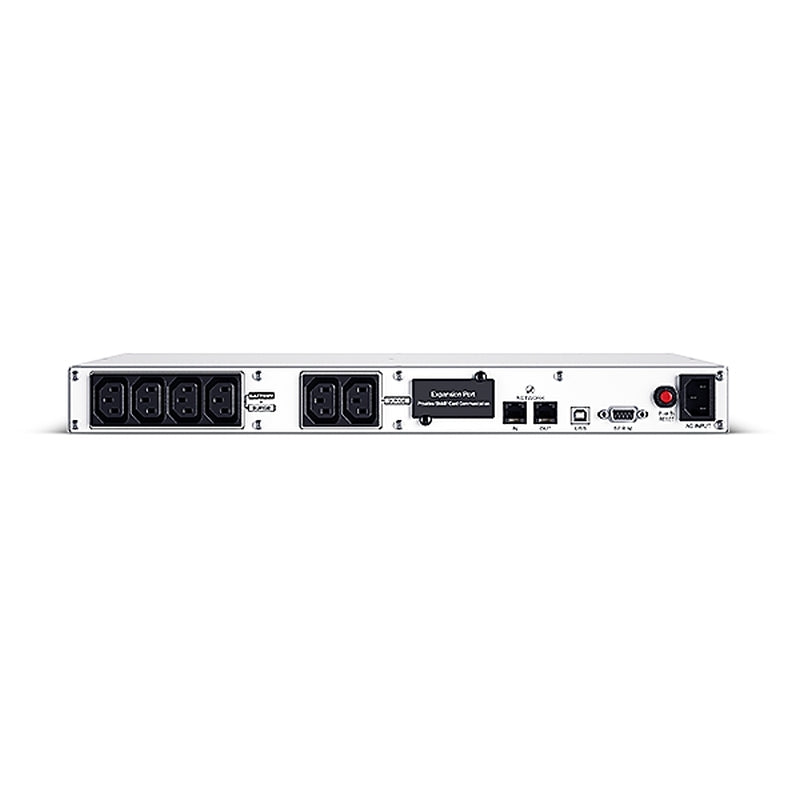

Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 2
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 11
Runtime at Full Load ( min ): 2.5
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: Yes
Hot-swappable: Yes
Replacement Battery Pack (RBP): RBP0026
Replacement Battery Pack (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information
LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output
HID Compliant USB Port(s): 1
Serial Port: Dry Contact
Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
Management Cable ( pcs ): Power Cord x4 | USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 433 x 44 x 389mm
Weight: 14.9kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 24
Certifications: CE | EAC | RCM | RoHS
Warranty: 2 Years
Line-interactive UPS Topology
Simulated Sine Wave Output
Overload Protection
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
What's in the box?
1 x OR1500ERM1U UPS
1 x Rackmount Ears
1 x Power Cord
1 x USB Cable
1 x User Manual
