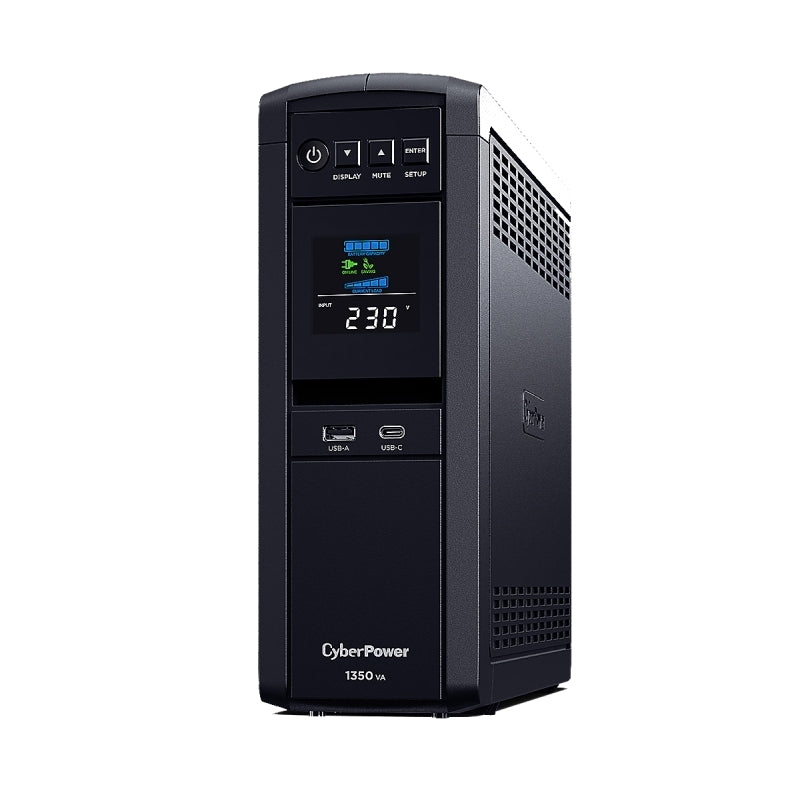

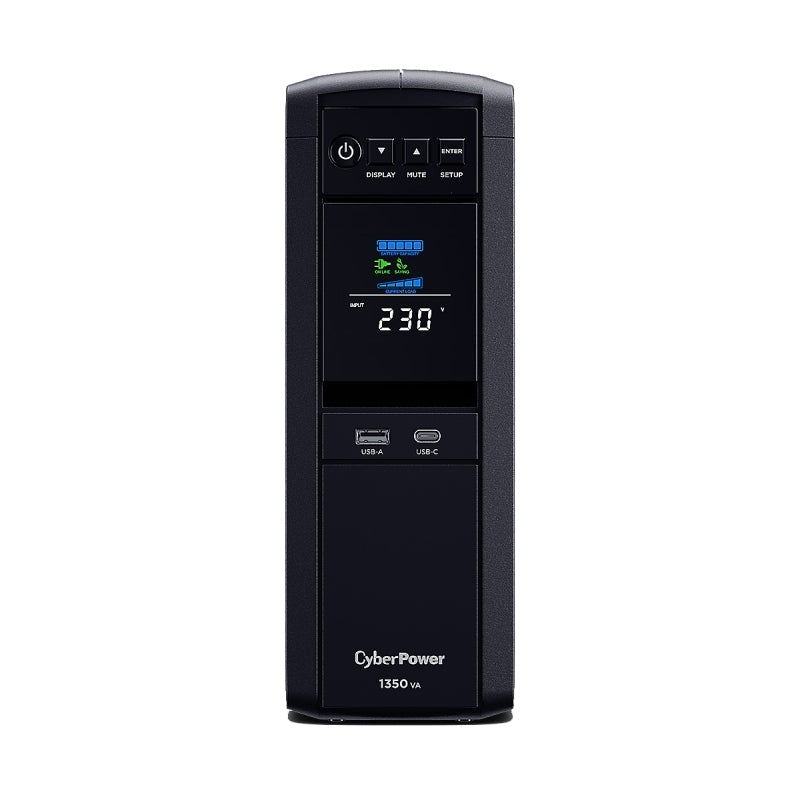

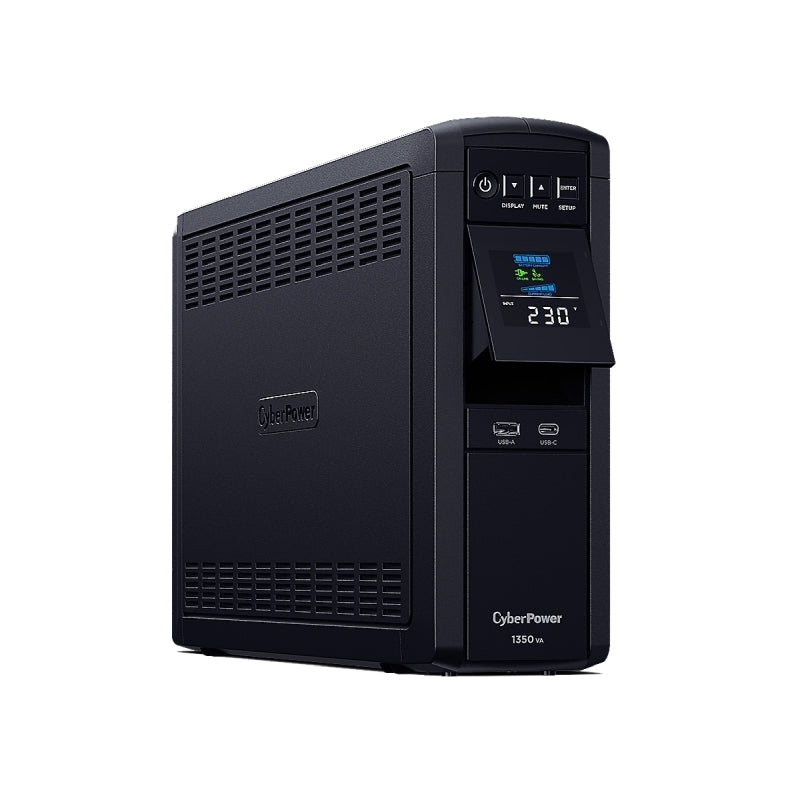

CyberPowerPFC UPS with Pure Sine Wave output safeguards mid to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS Technology.
Features/Specifications:
Form Factor: Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220, 230, 240
Input Voltage Range ( Vac ): 169 - 271
Input Frequency ( Hz ): 50 ± 3, 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: Schuko x
Power Cord Length (m.): 1.83
Capacity (VA): 1350
Capacity (Watts): 810
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 5 % (Under a test load of less than 60%. When the load is greater than 60%, the output voltage range may be greater than 5%.)
On Battery Frequency ( Hz ): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting
Outlet(s): 6
Outlet Type: Schuko x 6
Outlet(s) - Battery ; Surge Protected: 6
Typical Transfer Time ( ms ): 8 (Max 12ms at normal sensitivity)
USB Charging Port(s): USB-A x 1, USB-C x 1
USB Charging Total Output ( Watts ): 30
USB-A Charging Output: 5 V/ 2.4 A Max
USB-C Charging Output: 5 V/ 2.5 A Max, 9 V/ 2 A Max, 15 V/ 2 A Max
Runtime at Half Load ( min ): 9.6
Runtime at Full Load ( min ): 2.1
Typical Recharge Time ( Hours ): 8 (Recover to 90% after full load discharge)
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack (RBP): RBP0146
Replacement Battery Pack (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 405
Network Protection RJ45: 1-in, 1-out
LCD Panel: Yes
LCD Types: Color LCD
Tiltable LCD Panel: 22
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault ; Warning, Event ; Log
LCD Setting ; Control: Alarm Setting, Input ; Output, Battery Setting, Event ; Log
LED Indicators: Power On
HID-Compliant USB Port(s): 1
Serial Port: Dry Contact
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs ): USB Cable x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Dimensions: 100 x 280 x 355mm
Weight: 10kg
Operating Temperature: 0 - 40C
Operating Relative Humidity (Non-condensing) ( % ): 0 - 95
Operating Elevation: 0-3,000m
Storage Temperature: -15 - 45
Storage Relative Humidity (Non-condensing) ( % ): 0 - 95
Storage Elevation: 0-15,000m
Online Thermal Dissipation ( BTU/hr ): 24
Certifications: CE, RoHS
Warranty: 2-year
Line-interactive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
LED Status Indicator
PowerPanel Management Software
USB Charging Port(s)
Tower Form Factor
Energy Saving Technology
Pure Sine Wave Output
Color LCD Panel
SNMP/HTTP Remote Management Capability (Optional)
Surge and Spike Protection
High-speed Ethernet Data Transmission
